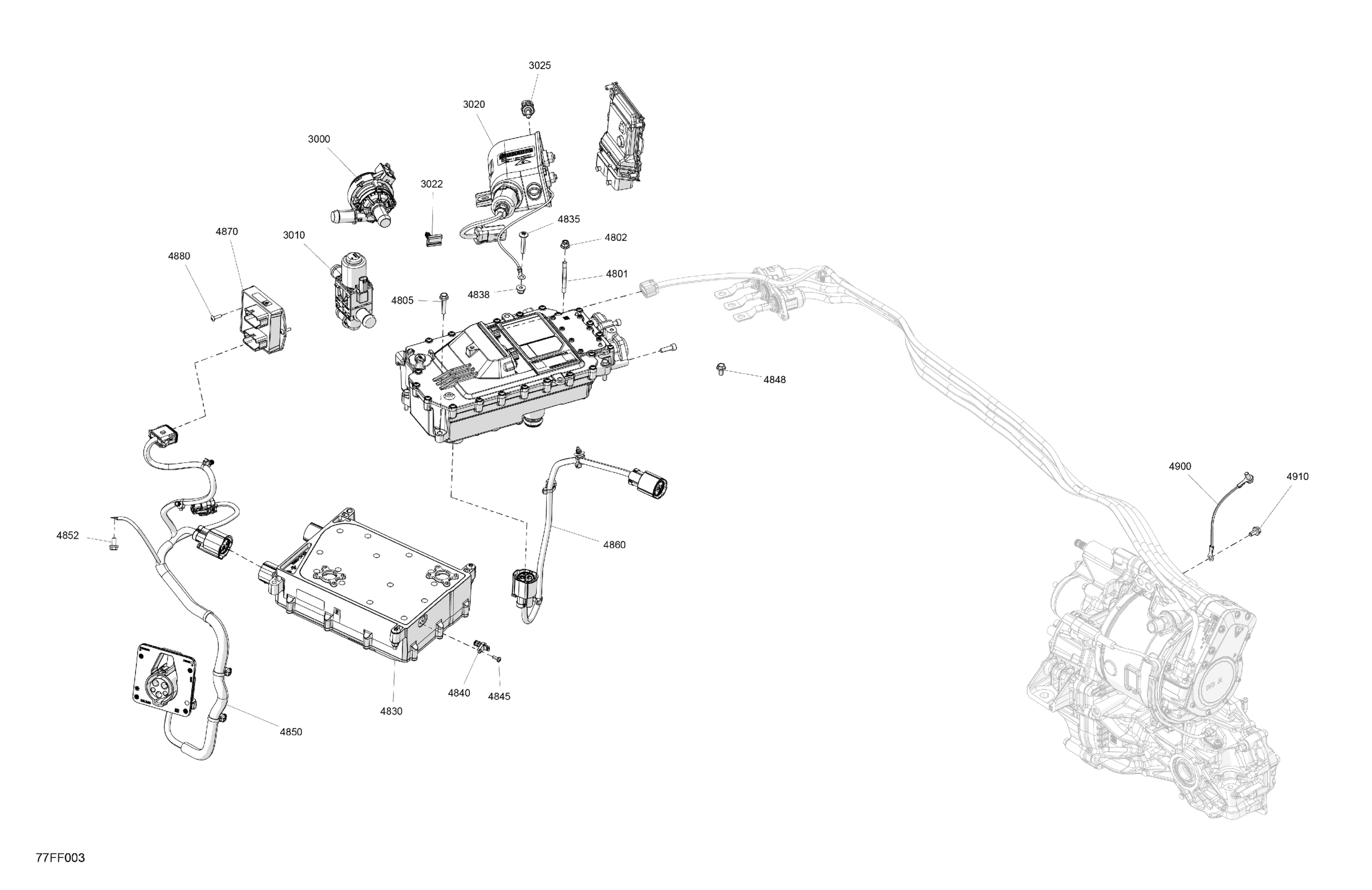

Can-Am OUT-MAX - 4X4 - EV - 2VTD - Bright White - 2026 Electric - High Voltage Diagram

Description

Price

3000

Cooling Pump

709201048

$164.99

3010

Cooling Solenoid Valve

709201162

$211.99

3020

Block Heater

712000168

$264.99

3022

Fastener

293730118

$8.19

3025

Temperature Sensor

278002895

$39.99

4801

Threaded Rod

509001410

$11.11

4802

Hex. Elastic Flange Nut M6

233161464

$1.01

4805

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

4830

Battery Charger 6.6 Kilowatt

712000192

$2.00

4835

Torx Screw M6 X 35

250000541

$2.11

4838

Hex. Flange Elastic Nut M6

233261466

$2.00

4840

Plug Ass'y

293710201

$29.49

4845

Torx Head Screw M4 X 10 | Includes 810 to 810b

250001298

$18.49

4848

Hex. Flange Screw M6 X 12

207661244

$2.11

4850

High Voltage Charging Port Cable

712000080

$429.99

4852

Hex. Flange Screw M6 X 12

207661244

$2.11

4860

High Voltage Charger Cable

712000078

$194.99

4870

Heater Module

712000162

$137.99

4880

Torx-Truss Pt K40 X 16

250000759

$2.11

4900

Cable Ground

712000176

$92.99

4910

Hex. Flange Screw M6 X 12

207661244

$2.11
