Description

Price

160

Bright White, LH Front Fender

705019267

Unavailable

170

Edge Clip

517302785

$0.88

180

Torx Screw K50 X 16

250000720

$1.69

190

Torx-Truss M/S M6 X 25

250001000

$5.29

200

Hex. Flange Nut M6

233161414

$2.11

210

Tuflok Plastic Rivet

293150230

$1.47

220

Panel Nut M6 X 1.0

250100198

$2.11

230

Deep Black, LH Front Fender Trim

705014662

$84.99

240

Trim Support Ass'y | Includes 240 to 240b

705019561

$17.49

240b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

250

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

260

Torx Screw M6 X 20

250000722

$1.68

300

Bright White, RH Front Fender

705019266

Unavailable

310

Edge Clip

517302785

$0.88

320

Torx Screw K50 X 16

250000720

$1.69

330

Torx-Truss M/S M6 X 25

250001000

$5.29

340

Hex. Flange Nut M6

233161414

$2.11

350

Tuflok Plastic Rivet

293150230

$1.47

360

Panel Nut M6 X 1.0

250100198

$2.11

370

Deep Black, RH Front Fender Trim

705014663

$84.99

380

Trim Support Ass'y | Includes 240 to 240b

705019561

$17.49

380b

Insert Half Hex Body M6 x 1.0

250100199

$3.19

390

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

400

Torx Screw M6 X 20

250000722

$1.68

1000

LH Front Wheel Arch Protector

705018011

$27.99

1010

Tuflok Plastic Rivet

293150230

$1.47

1020

LH Inner Fender

705013312

$29.99

1030

Tuflok Plastic Rivet

293150230

$1.47

1100

LH Upper Footstep

705018487

$82.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1150

RH Upper Footstep

705018488

$82.99

1160

Tuflok Plastic Rivet

293150230

$1.47

1200

LH Footboard

705014262

$189.99

1210

Hex Flange Screw M6 X 25

250000841

$7.51

1220

Stainless Steel Flat Washer

234062670

$2.11

1230

RH Footboard

705014263

$139.99

1240

Hex Flange Screw M6 X 25

250000841

$7.51

1250

Stainless Steel Flat Washer

234062670

$2.11

1280

Footrest

705013651

$4.09

1290

Hex Flange Screw M6 X 25

250000841

$7.51

1295

Hex. Flange Nut M6

233161414

$2.11

1300

Footrest

705013651

$4.09

1310

Hex Flange Screw M6 X 25

250000841

$7.51

1320

Hex. Flange Nut M6

233161414

$2.11

2660

Switch Support

705014661

$13.49

2670

Pressure Nut

250100163

$0.98

2700

LH Panel

705018302

$54.99

2755

Charging Door Port

705018573

$17.49

2760

Gasket

293830260

$8.89

2765

Charging Port Support

705018685

$4.55

2770

Hex. Sems Screw M10 X 28

250001344

$6.45

2775

Torx Head Screw M6 X 16

250000717

$2.11

2780

Charging Port Cap

705018574

$5.08

2785

Torx Head Screw M6 X 16

250000717

$2.11

2790

Torx Head Screw M6 X 16

250000717

$2.11

2800

RH Panel

705018303

$54.99

2860

Panel

709001696

$18.49

2870

Panel Nut M6 X 1.0

250100198

$2.11

2880

Screw Torx M6 X 20

250001257

$1.68

2900

LH Rear Fender Support

705014733

Unavailable

2910

Torx-Truss M/S M6 X 25

250001000

$5.29

2915

Flat Washer 6 mm

234062410

$0.77

2920

Panel Nut M6 X 1.0

250100198

$2.11

2940

Tuflok Plastic Rivet

293150230

$1.47

2950

RH Rear Fender Support

705014734

$83.99

2955

Heat Shield

705018605

$3.89

2956

Heat Shield

705018563

$3.89

2960

Torx-Truss M/S M6 X 25

250001000

$5.29

2965

Flat Washer 6 mm

234062410

$0.77

2970

Panel Nut M6 X 1.0

250100198

$2.11

2980

Trim Fairing

705018567

$13.49

2990

Tuflok Plastic Rivet

293150230

$1.47

3000

Bright White, LH Rear Fender

705019264

$149.99

3010

Panel Nut M6 X 1.0

250100198

$2.11

3020

Screw Torx M6 X 20

250001257

$1.68

3030

Flat Washer 6 mm

234062410

$0.77

3050

Deep Black, LH Rear Fender Trim

705014664

$84.99

3070

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

3200

Bright White, RH Rear Fender

705019265

$149.99

3210

Panel Nut M6 X 1.0

250100198

$2.11

3220

Screw Torx M6 X 20

250001257

$1.68

3230

Flat Washer 6 mm

234062410

$0.77

3250

Deep Black, RH Rear Fender Trim

705014665

$84.99

3270

Torx Screw Truss Head PT.K50 X 25

250000907

$2.19

4500

LH Extension Panel

705013653

$18.49

4510

Tuflok Plastic Rivet

293150230

$1.47

4520

LH Ext Heat Shield

705019157

$6.99

4550

RH Extension Panel

705013654

$18.49

4560

Tuflok Plastic Rivet

293150230

$1.47

5300

Central Harness Protector

705019532

$18.49

5310

Hex. Flange Screw M8 X 50

207685044

$1.69

5320

Hex. Flange Screw M8 X 100

250001290

$9.21

5330

Hex. Elastic Flange Nut M8

233281416

$1.48

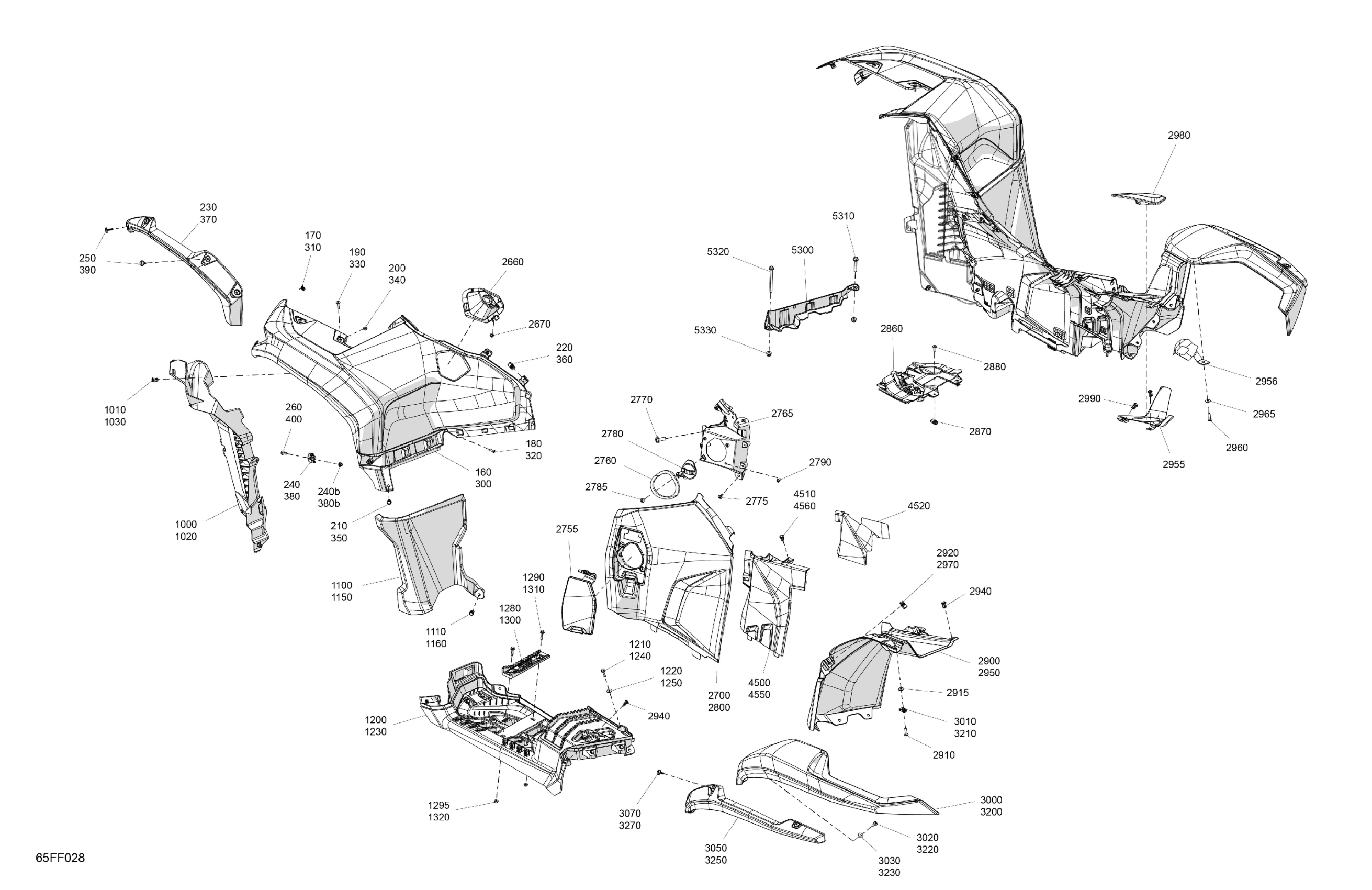

Can-Am Off-Road North America - OUT-MAX - 4X4 - EV - 2VTD - Bright White - 2026 07- Body - Fender Kit Diagram

Bright White, LH Front Fender

Edge Clip

Torx Screw K50 X 16

Torx-Truss M/S M6 X 25

Hex. Flange Nut M6

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Deep Black, LH Front Fender Trim

Trim Support Ass'y | Includes 240 to 240b

Insert Half Hex Body M6 x 1.0

Torx Screw Truss Head PT.K50 X 25

Torx Screw M6 X 20

Bright White, RH Front Fender

Edge Clip

Torx Screw K50 X 16

Torx-Truss M/S M6 X 25

Hex. Flange Nut M6

Tuflok Plastic Rivet

Panel Nut M6 X 1.0

Deep Black, RH Front Fender Trim

Trim Support Ass'y | Includes 240 to 240b

Insert Half Hex Body M6 x 1.0

Torx Screw Truss Head PT.K50 X 25

Torx Screw M6 X 20

LH Front Wheel Arch Protector

Tuflok Plastic Rivet

LH Inner Fender

Tuflok Plastic Rivet

LH Upper Footstep

Tuflok Plastic Rivet

RH Upper Footstep

Tuflok Plastic Rivet

LH Footboard

Hex Flange Screw M6 X 25

Stainless Steel Flat Washer

RH Footboard

Hex Flange Screw M6 X 25

Stainless Steel Flat Washer

Footrest

Hex Flange Screw M6 X 25

Hex. Flange Nut M6

Footrest

Hex Flange Screw M6 X 25

Hex. Flange Nut M6

Switch Support

Pressure Nut

LH Panel

Charging Door Port

Gasket

Charging Port Support

Hex. Sems Screw M10 X 28

Torx Head Screw M6 X 16

Charging Port Cap

Torx Head Screw M6 X 16

Torx Head Screw M6 X 16

RH Panel

Panel

Panel Nut M6 X 1.0

Screw Torx M6 X 20

LH Rear Fender Support

Torx-Truss M/S M6 X 25

Flat Washer 6 mm

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

RH Rear Fender Support

Heat Shield

Heat Shield

Torx-Truss M/S M6 X 25

Flat Washer 6 mm

Panel Nut M6 X 1.0

Trim Fairing

Tuflok Plastic Rivet

Bright White, LH Rear Fender

Panel Nut M6 X 1.0

Screw Torx M6 X 20

Flat Washer 6 mm

Deep Black, LH Rear Fender Trim

Torx Screw Truss Head PT.K50 X 25

Bright White, RH Rear Fender
