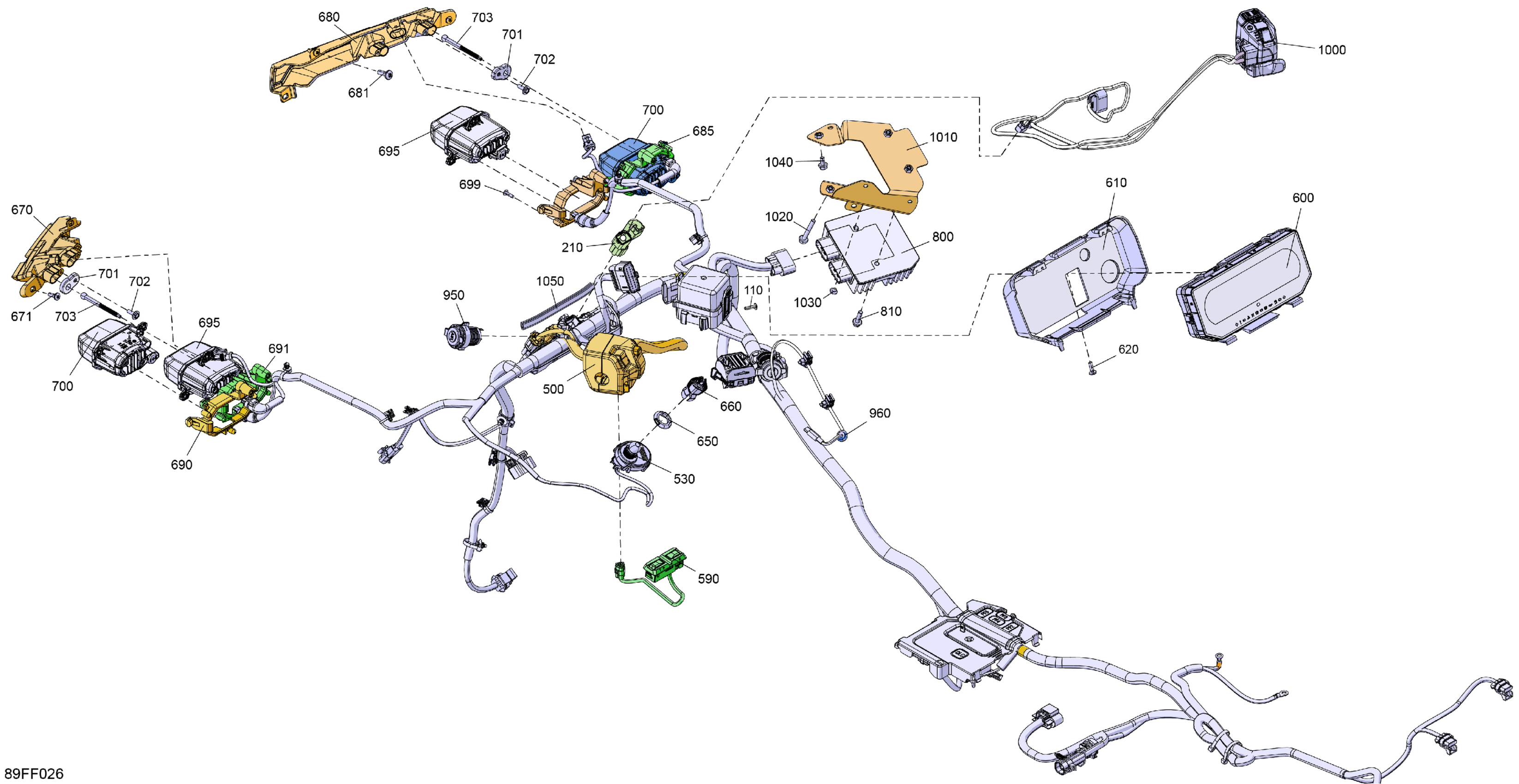

Can-Am OUT-MAX - 4X4 - DPS - 850 - 4PTB - CALI - Granite Grey - 2026 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

$2.11

210

Switch Wiring Harness

710009366

$40.99

500

LH Front Switch Housing | CARB Vehicle

710006944

$289.99

530

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

590

Multifunction Switch

710009867

$63.49

600

Multifunction Gauge Mid

710008297

$379.99

610

Int Gauge Support

710009602

$6.09

620

Torx Screw K50 X 16

250000720

$1.69

650

Specialized Nut

278004274

$3.28

660

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

670

LH Cap

710009518

$11.99

671

Torx Screw K50 X 16

250000720

$1.69

680

RH Cap

710009519

$11.59

681

Torx Screw K50 X 16

250000720

$1.69

685

RH Front Low Beam Headlight Support

710011657

$26.99

690

LH Front Low Beam Headlight Support

710011656

$26.99

691

LH/RH Front High Beam Headlight Support

710011658

$47.99

695

HIgh Beam Light

710006910

$129.99

699

Torx-Truss Pt K40 X 16

250000759

$2.11

700

Low Beam Light

710008088

$139.99

701

Ball Socket

293900157

$9.59

702

Screw PT Type K-50 X 16

250000959

$2.11

703

Ajustment Screw

710005837

$6.35

800

Voltage Regulator

710010540

$195.99

810

Hex. Flange Screw M6 X 25

207562544

$1.69

950

DC Outlet

710001248

$37.99

960

Body Cap

710010665

$2.85

1000

Accelerator Hand Lever

710010583

$309.99

1010

Voltage Regulator Support

710009942

$17.49

1020

Hex. Flange Screw M6 X 40

207664044

$2.22

1030

Rubber Stopper

293830229

$8.79

1040

Hex. Flange Screw M6 X 12

207661244

$2.11

1050

Trim 1000Mm Long

219704354

$15.99
