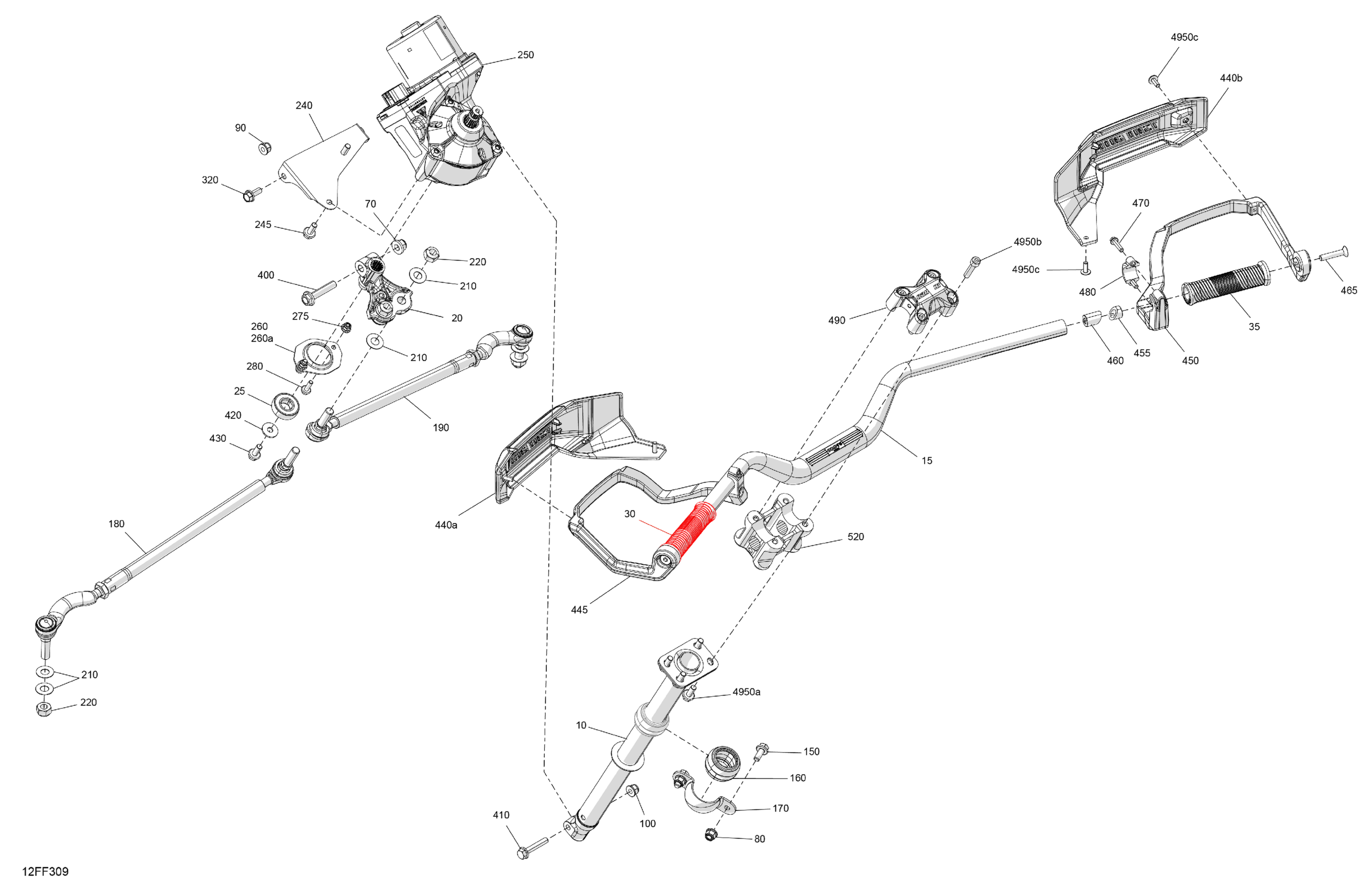

Can-Am Off-Road North America - OUT-MAX - 4X4 - BACKCOUNTRY - 1000R - 4MTF - Stealth Black - 2026 03- Mechanic - Steering Diagram

Description

Price

Steering Column

709402739

$114.99

Black Anodized, Handlebar

709403111

$105.99

Pitman Arm

709403065

$51.99

Ball Bearing

709402499

$19.19

LH Handlebar Grip

709402868

$14.83

RH Handlebar Grip

709403010

$14.83

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Spherical Bushing

709402169

$7.65

170

Upper Column Attachment

709400827

$1.09

180

LH Tie Rod Ass'y

709402737

$62.49

190

RH Tie Rod Ass'y

709402738

$62.49

210

Hardened Washer

706200281

$2.85

220

Hex. Elastic Hex. Nut M12

250100089

$0.46

240

Power Steering Support

709402182

$20.99

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

250

Power Steering Ass'y

709402974

$1,218.99

260

Lower Bearing Support | Includes 260 to 260a

709402360

$11.99

260a

Lower Bearing Support

709402713

$43.99

275

Hex. Flange Elastic Nut M6

233261466

$2.00

280

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

320

Hex. Flange Screw M8 X 20

207682044

$1.15

400

Hex. Flange Screw M10 X 50, Scotch Grip

207505046

$7.41

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

420

Flat Washer 8 mm

234082410

$1.47

430

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

440a

LH Handlebar Air Deflector

709403283

Unavailable

440b

RH Handlebar Air Deflector

709403284

Unavailable

445

LH Deflector Support

709402412

$23.99

450

RH Deflector Support

709402413

$23.99

455

Expansion Plug

709403128

$21.99

460

Expansion Plug

709403130

$20.99

465

Socket Head Screw | X

205384034

$6.49

470

Hex Flange Screw M6 X 25

229000711

$2.11

480

Clamp And Screw Kit

507032477

$23.99

490

Flange

709402870

$26.99

520

Handlebar Riser Block

709402885

$59.49

580

Handlebar Support

709403012

$23.99

595

SOCKET HEAD SCREW M8 X 60 - Call your local BRP dealership

205086044

$2.51

610

Hex. Elastic Flange Nut M8

233281416

$1.48

4950a

Hex Screw Washer Head M8 X 20

207582054

$3.17

4950b

Socket Head Screw S.Grip M8 X 35

250001297

$2.64

4950c

Torx Head Screw M6 X 16

250000717

$2.11
