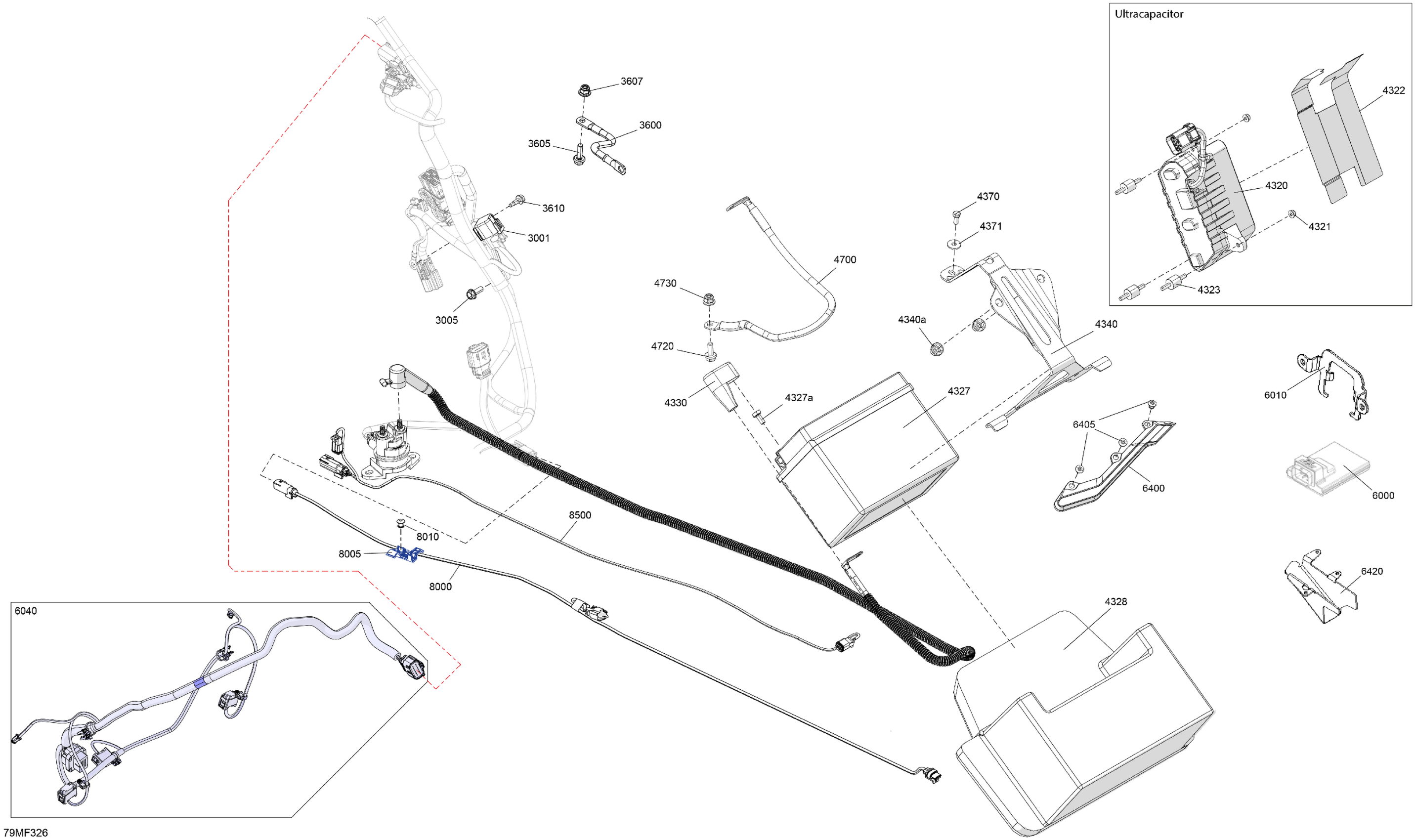

Ski-Doo MXZ - X-RS with Competition package - 850 E-TEC Turbo R - UCTC - Mineral Blue - 15X137X1.25RSII2P Track, 2026 Electric - Lower Section Diagram

Description

Price

3001

Diagnostic Cap

515178435

$7.24

3005

Hex. Flange Screw M6 X 16

250001062

$1.43

3600

Ground Wire

515178248

$23.82

3605

Hex. Flange Screw M6 X 20

207662044

$1.66

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

4320

Ultracapacitor Module

515178891

$519.97

4321

Hex. Flange Nut M5

233151414

$0.46

4322

Heat Shield

515178698

$3.23

4323

Rubber Mount

707000746

$8.60

4327

Battery 12 Volt 4 Ah

415130961

Unavailable

4327a

Battery Bolt Kit

715500541

$3.39

4328

Battery Support

515179279

$13.14

4330

Protector Cap | STD

710001817

$10.83

4340

Battery Strip | Includes 4340 to 4340a

515177870

$15.35

4340a

Insert

293450275

$9.89

4370

Hex. Screw M5 X 12

207151244

$0.74

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$25.35

4720

Hex. Flange Screw M6 X 16

207661644

$0.61

4730

Elastic Flange Nut M6 X 1.0

233261416

$1.74

6000

Suspension Controle Module

515178849

$479.97

6010

Module Support

515179152

$33.05

6040

Suspension Wiring Harness

515179226

$216.12

6400

RH Central Skid Plate

515178913

$25.35

6405

Black, 3/16" Pop Rivet

293150263

$1.94

6420

Lower Rear Skid Plate

515179147

$44.58

6426

Stavex Rivet 4.8 X 17.1 | Not Shown

293150254

$0.91

8000

Taillight Wiring Harness

515179657

$25.35

8005

Wiring Harness Support

515179630

$9.03

8010

Pop Rivet 3/16 X ,425

293150293

$0.26

8500

Taillight Wiring Harness

515179570

$25.35
