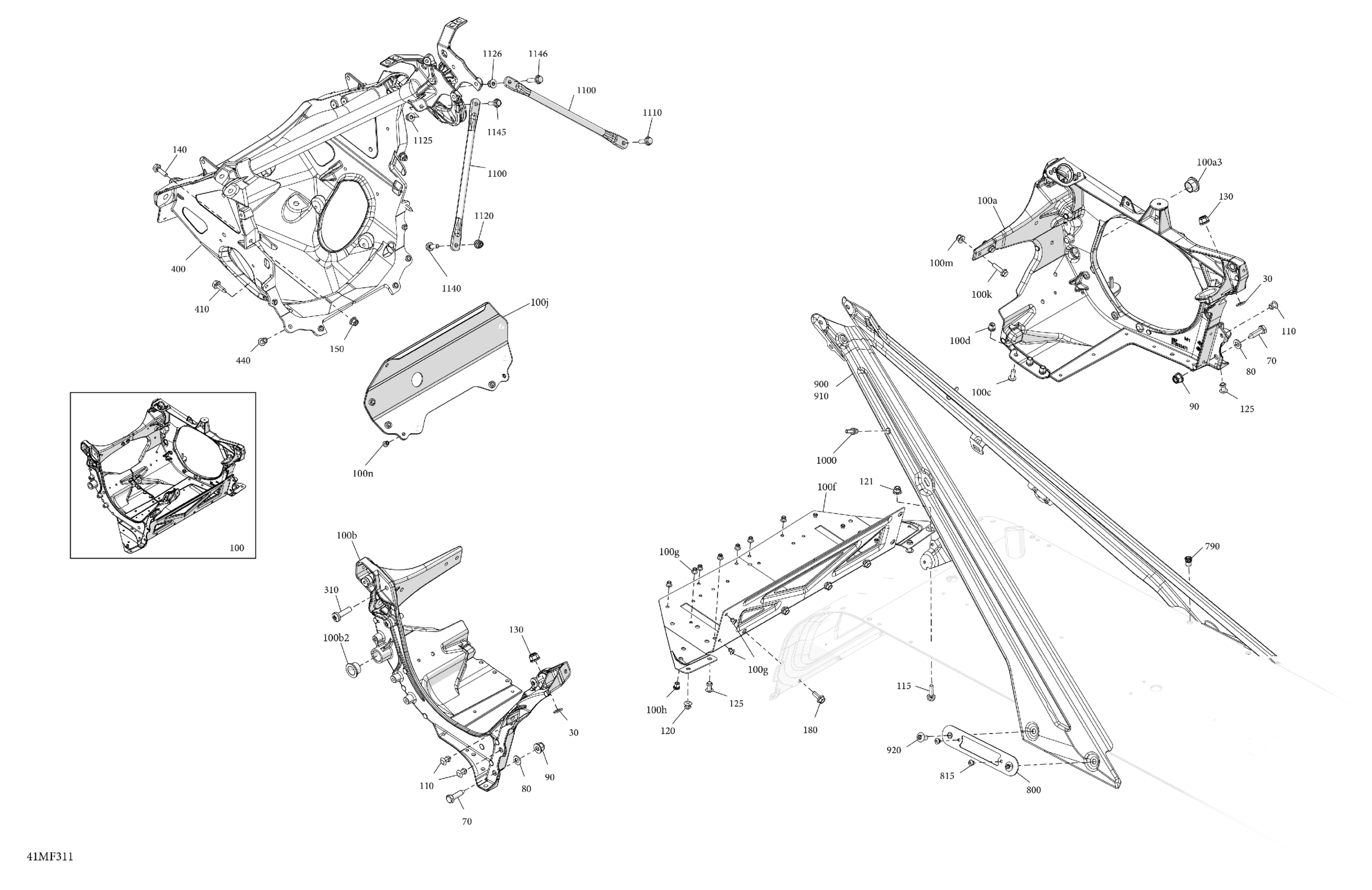

Ski-Doo North America - MXZ - X-RS with Competition package - 850 E-TEC Turbo R - UCTB - Mineral Blue - 15X137X1.25RSII2P Track, 2026 06- Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.83

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module | Includes 100 to 100n

518335198

$729.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

$239.99

100a3

Leg Cushion

505073317

$8.66

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Cushion

505073317

$8.66

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Rivet Avibulb 3/16

293150203

$2.09

100h

Insert M5 X 0.8

293450268

$2.09

100j

Front Member

518330100

$60.99

100k

Hex. Flange Screw M6 X 20

207662046

$2.11

100m

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100n

Rivet Avibulb 3/16

293150203

$2.09

110

Rivet Ornit 6,5 X 16.5

293150267

$2.40

115

Hex. Flange Screw M6 X 20

207662046

$2.11

120

Rivet Ornit 6,5 X 12.5

293150265

$2.40

121

Elastic Flange Nut M6 X 1.0

233261416

$2.11

125

Rivet Ornit 6,5 X 18.5

293150268

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334460

$699.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

440

Hex. Flange Screw M6 X 16

207661636

$1.35

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

815

Rivet Ornit 4,8 X 11,3

293150312

$0.30

900

Deep Black, LH Rear Diagonal Cross Member

518336882

$119.99

910

Deep Black, RH Rear Diagonal Cross Member

518336883

$119.99

920

Screw-Torx Truss M8 X 12

250001376

$3.38

1000

Insert M5 - 0.8

293450267

$4.59

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1145

Hex. Flange Screw M6 X 20

207662046

$2.11

1146

Hex. Flange Screw M6 X 25

207662556

$4.44
