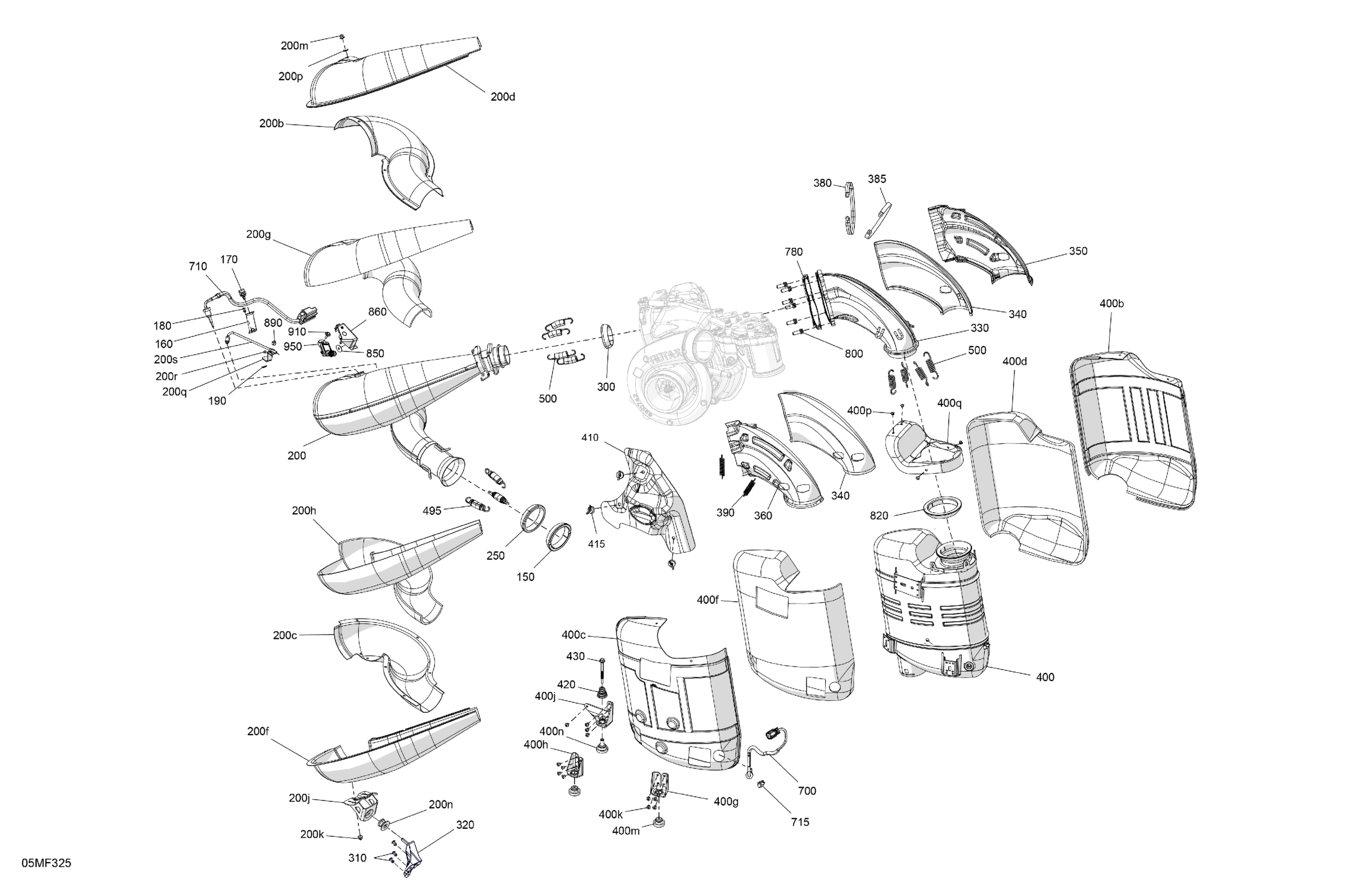

Ski-Doo MXZ - X-RS with Competition package - 850 E-TEC Turbo R - UCTB - Mineral Blue - 15X137X1.25RSII2P Track, 2026 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.12

160

Support

514055512

$3.09

170

Tie Rap Mount (screwable)

515176795

$5.11

180

Avex Rivet

390909100

$0.29

190

Washer 3/16

514055537

$0.98

200

Tuned Pipe Ass'y | Includes 200 to 200s

514056406

$719.97

200b

Shell

514056283

$41.51

200c

Shell

514056282

$36.89

200d

Rear Upper Shell

514056421

$77.66

200f

Rear Lower Aluminum Shell

514056141

$77.66

200g

Glass Wool

514056422

$19.20

200h

Glass Wool

514056352

$7.60

200j

Plate

514055844

$5.29

200k

Avex Rivet

390909200

$0.29

200m

Avex Rivet

390909200

$0.29

200n

Vibration Damper

514056375

$11.45

200p

Washer 3/16

514055537

$0.98

200q

Support

514055846

$9.28

200r

Avex Rivet

390909100

$0.29

200s

Tube

514055725

$16.12

250

Seal

514055965

$18.43

300

Exhaust Gasket

514054174

$27.66

310

Rivet Ornit 6,5 X 16.5

293150267

$1.94

320

Overmolded Exhaust Support

514056346

$9.55

330

Manifold

514056157

$132.28

340

Glass Wool

514056380

$4.28

350

Front Shield

514055747

$36.89

360

Rear Sheild

514056161

$36.89

380

Retaining Strap

514056144

$8.29

385

Retaining Strap

514056145

$8.29

390

Spring

514053643

$6.20

400

Muffler Ass'y | Includes 400 to 400q

514056355

$738.43

400b

RH Deflector

514056114

$54.58

400c

LH Deflector

514056316

$53.82

400d

Glass Wool

514056356

$18.43

400f

Glass Wool

514056357

$7.18

400g

Exhaust Support

514056193

$5.38

400h

Exhaust Support

514056082

$5.38

400j

Exhaust Support

514056083

$5.38

400k

Pop Rivet 3/16 X ,425

293150293

$0.26

400m

Stopper

514055203

$19.20

400n

Stopper Ass'y

514056138

$12.58

400p

Cap

514056151

$54.58

400q

Pop Rivet 3/16"

390402400

$0.25

410

Acoustic Panel Ass'y

514056605

Unavailable

415

Stopper

502008752

$1.94

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83

495

Spring

514056058

$6.20

500

Spring

514055198

$6.20

700

Exhaust Temperature Sensor

514056266

$133.82

710

Module

515178170

$179.97

715

Clip

710010204

$1.45

780

Exhaust Gasket

514056159

$14.54

800

12 Point Flange Screw M8 X 20

250001193

$13.12

820

Exhaust Gasket

514055731

$23.82

850

Flat Washer

224060201

$1.15

860

Sensor Support

514055723

$10.37

890

Crimp Clamp

293650249

$2.74

910

Screw M4 X 16

250000725

$2.87

950

Pressure Sensor

514055908

$189.20
