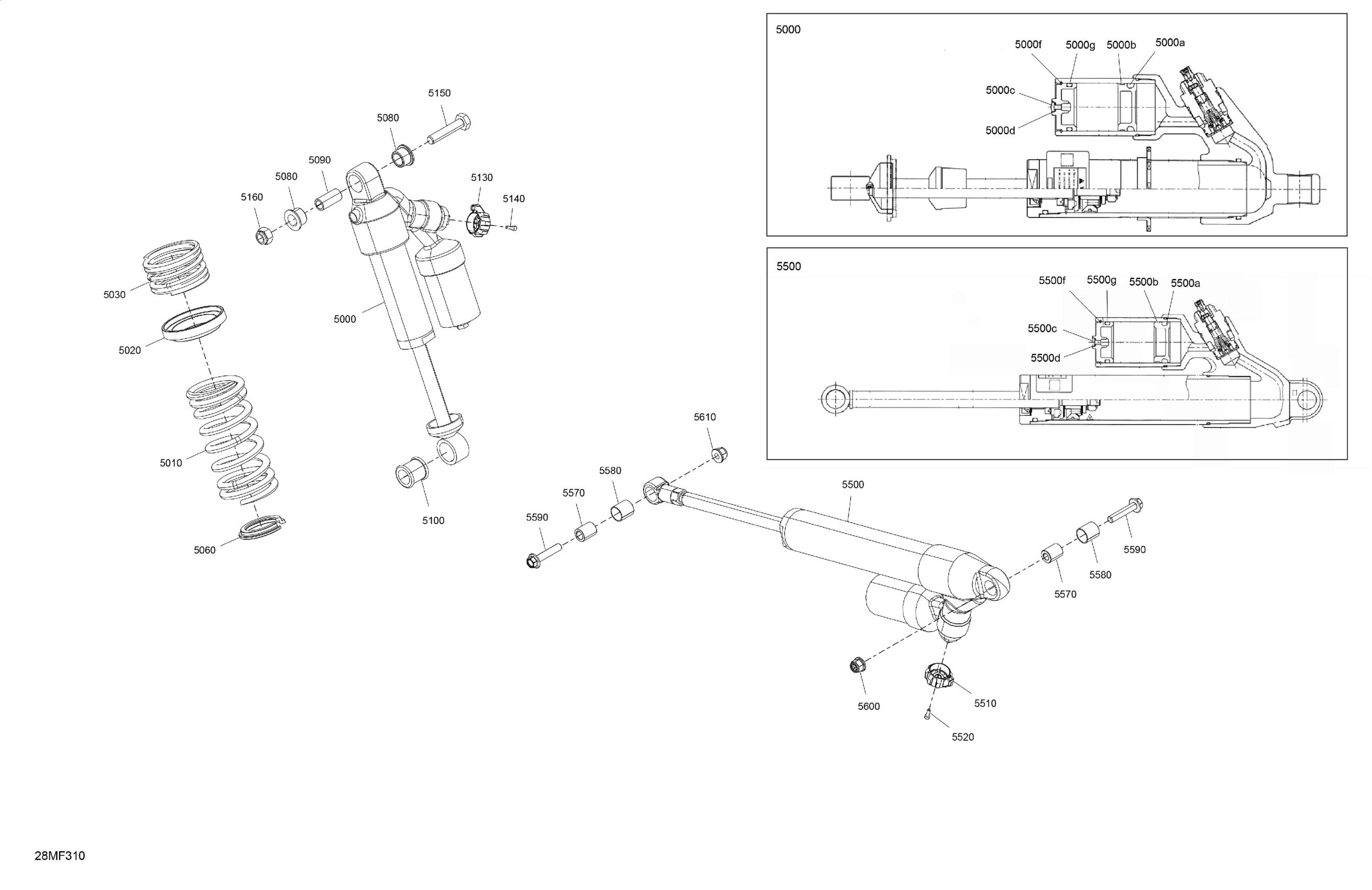

Ski-Doo MXZ - X-RS - 600R E -TEC - MZTF - Mineral Blue - 15X137X1.25IR Track, 2026 Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock Absorber | Includes 5000 to 5000g

503196191

$812.99

5000a

O-Ring

415093807

$34.58

5000b

Piston Ring | Not Shown

415093806

$14.97

5000c

Screw | Not Shown

505070399

$4.00

5000d

O-Ring

505070400

$4.38

5000f

Circlip - Call your local BRP dealership

715900076

$4.03

5000g

O-Ring

415093804

$4.38

5010

Black, Spring (162mm) Long

503193065

$71.51

5020

Spring Spacer

503192743

$12.65

5030

Black, Spring (52mm) Short

503193479

$88.43

5060

Spring Stopper

503194270

$16.89

5080

Urethane Bushing

503189117

$6.88

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5100

Bushing

503189271

$10.46

5130

Adjustment Button

503196209

$2.57

5140

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5160

Elastic Locking Nut M10

233601466

$1.74

5500

Rear Shock | Includes 5500 to 5500g

503196192

$877.49

5500a

O-Ring

415093807

$34.58

5500b

Piston Ring | Not Shown

415093806

$14.97

5500c

Screw | Not Shown

505070399

$4.00

5500d

O-Ring

505070400

$4.38

5500f

Circlip - Call your local BRP dealership

715900076

$4.03

5500g

O-Ring

415093804

$4.38

5510

Adjustment Button

503196209

$2.57

5520

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex Flange Screw M8 X 40

207684056

$1.22

5600

Elastic Flange Nut M8

233281466

$0.83

5610

Elastic Flange Nut M8

233281466

$0.83
