Description

Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000a

Front Suspension Arm Ass'y | Includes 2000a to 2000a8

503196000

$465.99

2000a2

Extended Bushing

503191556

$7.83

2000a3

Rocker

503196878

$79.99

2000a4

Swivel Bushing

503191555

$7.83

2000a5

Bushing

503193037

$16.18

2000a6

Bushing | Includes 240d to 240d1

503189282

$4.34

2000a7

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000a8

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2000b

Rear Suspension Wiring Harness

515178739

$26.99

2000c

Hall Effect Sensor

503195951

$149.99

2000d

Axle Suspension Arm Ass'y

503196864

$56.99

2000f

Protection Sensor

503196400

$36.99

2000g

Retaining Plate

503196510

$20.99

2000h

Socket Screw M4 X 16 (Scotch Grip)

205541660

$2.09

2010

Axe

503197934

$14.99

2030

Washer

503191926

$1.58

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503193716

$17.23

2080

Flat Washer, 12 mm

250200113

$4.44

2085

Washer

503196366

$5.40

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000v

503196853

$285.99

3000a10

Hexagonal Nut M6

232061404

$0.34

3000b

Bushing

503192767

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

Cushion

503191640

$5.93

3000f

Lower Shaft

503195743

$19.49

3000g

Pivot Arm Ass'y | Includes 3000g to 3000g13

503195658

$5.59

3000g1d

Hexagonal Nut M6

232061404

$0.34

3000g3

Pop Rivet 3/16"

390402200

$0.35

3000g7

Flat Washer

517225900

$0.18

3000g9

Grease Fitting

408200700

$3.49

3000g12

Elastic Stop Nut M5

232551414

$0.87

3000g13

Socket Head Screw M4X 10

205041060

$2.11

3000h

Guide

503195700

$6.79

3000j

LH Cam

503195701

$2.29

3000k

RH Cam

503195702

$2.29

3000m

Washer

503192496

$0.77

3000n

Socket Head Screw M10 X 35

205503554

$7.51

3000p

Grease Fitting

408200700

$3.49

3000q

LH Cam Adjuster

503191565

$16.49

3000r

RH Cam Adjuster

503191566

$16.49

3000s

E-Circlip

293370013

$0.65

3000t

O-Ring

503195853

$2.32

3000u

LH Block Sticker Decal

516004900

$18.99

3000v

RH Block Sticker Decal

516004901

$18.99

3010

Black, LH Square Spring

503196052

$104.99

3020

Black, RH Square Spring

503196053

$104.99

3060

Labyrinth Seal

503190434

$6.09

3070

Black, Wheel Ass'y 165 | Includes 3070 to 3070b

503195817

$51.99

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3080

Axle Spring

503189146

$9.59

3090

Labyrinth Ring

503192592

$4.99

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

3100b

Hex. Screw M8

207085056

Unavailable

3100c

Washer

503192494

$3.17

3100d

Elastic Flange Nut M8

233281466

$1.01

3100f

Swivel Bushing

503191555

$7.83

3110

Retaining Ring

293370080

$2.29

3170

Flat Washer

250200143

$3.17

3180

Cap Screw Hex. M10 X 40

207204056

$7.51

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503196492

$29.99

4030

Axle Bar (Long)

503190643

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar

503192555

$14.15

4100

Washer

503192494

$3.17

4110

Flat Washer 8 mm

234082410

$1.47

4120

Hex. Screw M8 X 55

207085556

$1.69

4130

Elastic Flange Nut M8

233281466

$1.01

5530

Grommet

293720125

$7.39

5700

Hall Effect Sensor

503195951

$149.99

5710

Rear Sensor Support

503195631

$9.99

5711

Tubing 6 Mm 3000Mm Long

219704425

$13.75

5715

Pop Rivet 3/16”

293150093

$1.29

5720

Lever Sensor Ass'y

503196898

$51.99

5725

Guard

503196897

$43.99

5730

Screw Socket Head M6 X 25

250001239

$2.96

5731

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

5733

Tank Support Shock Absorber

503196928

$31.99

5734

Hex Screw Washer Head M8 X 20

207582054

$3.17

5735

Elastic Flange Nut M8

233281466

$1.01

5760

Black, 3/16" Pop Rivet

293150263

$2.40

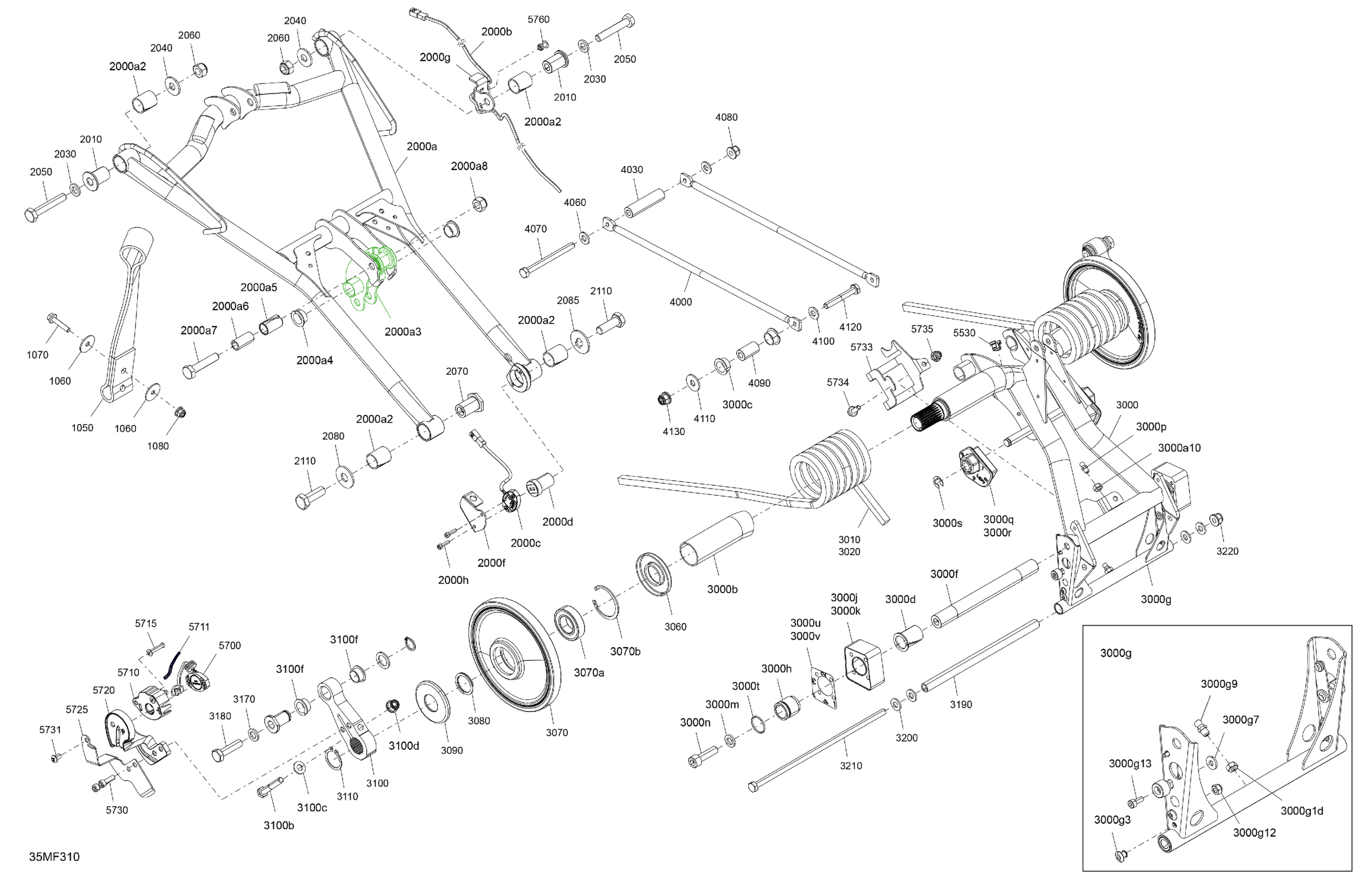

Ski-Doo North America - MXZ - X-RS - 600R E -TEC - MZTB - Deep Black - 15X129X1.5IR Track, 2026 05- Suspension - Rear - Upper Section Diagram
