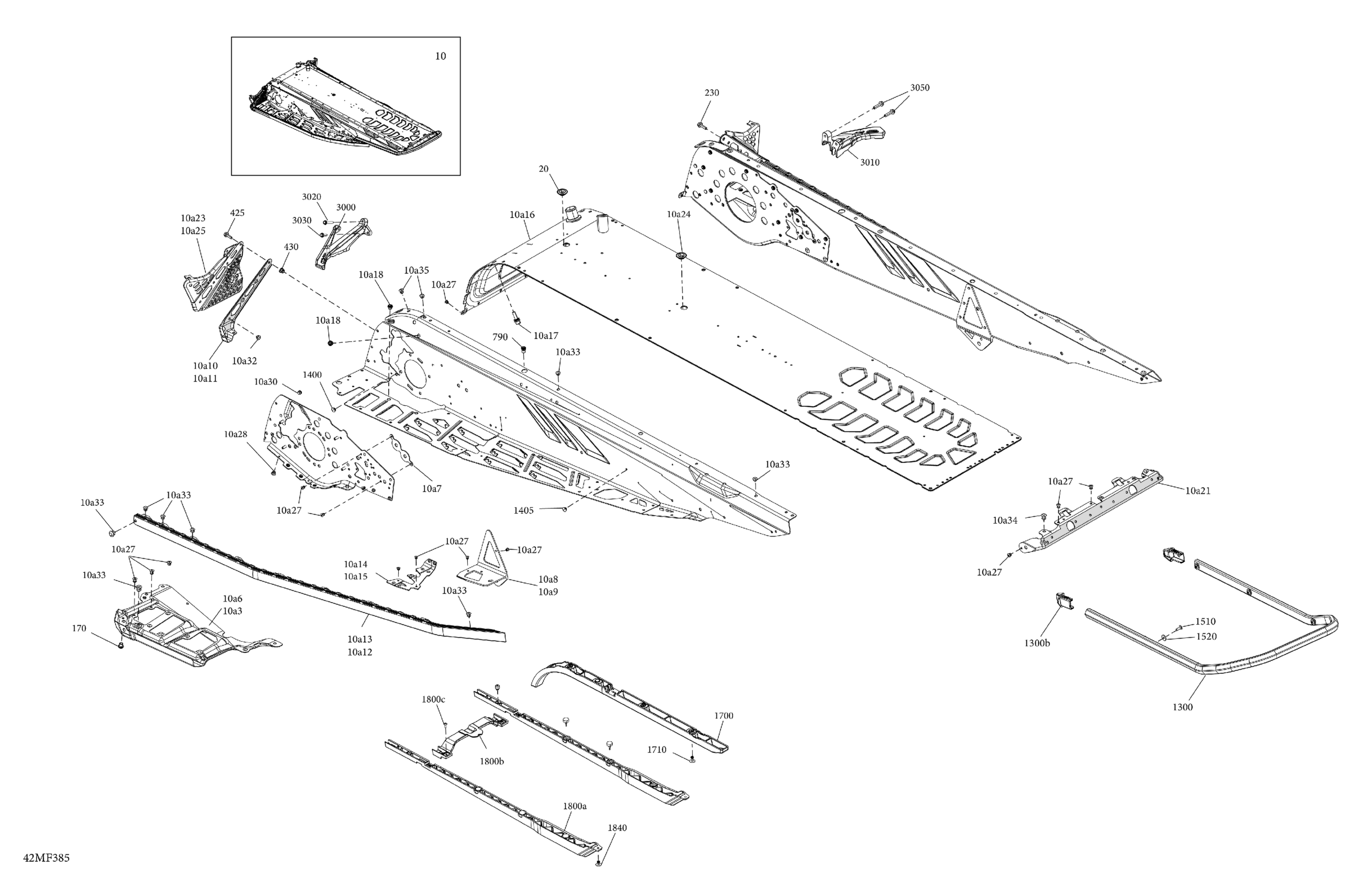

Ski-Doo MXZ - X - 600R E -TEC - UVTA - Mineral Blue - 15X129X1.25IR Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Mineral Blue, Chassis Tunnel Module 129

415130980

$3,069.20

10a3

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10a6

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10a7

Front Suspension Arm Reinforcement

518327233

$16.12

10a8

RH Rear Suspension Support

518334387

$96.12

10a9

LH Suspension Arm Anchorange

518332305

$96.12

10a10

Stirrup Reinforcement

518334507

$18.43

10a11

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a12

RH Roller

518328451

$180.74

10a13

LH Roller

518328452

$180.74

10a14

LH Footrest Reinforcement

518332296

$18.43

10a15

RH Footrest Reinforcement

518332297

$18.43

10a16

Radiator Tunnel 129

518335123

$692.28

10a17

Protruding Stud M8 x 22

250300652

$4.28

10a18

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10a21

Rear Cap

518328990

$20.74

10a23

RH Footrest

518333006

$38.43

10a24

Black, Plug

293730052

$6.37

10a25

LH Footrest

518333858

$38.43

10a27

Rivet Avibulb 3/16

293150203

$0.29

10a28

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a30

Henrob Rivet

293150245

$1.65

10a32

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a33

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a34

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10a35

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$114.99

1300b

Cap

520001612

$8.62

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

1800a

Rear Protector

518329979

$7.55

1800b

Central Protective Structure

518333936

$3.40

1800c

Torx Truss Screw K40 X 12

250000577

$1.74

1840

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3000

LH Front Stirup

518334924

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 30

250001211

$3.85

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11
