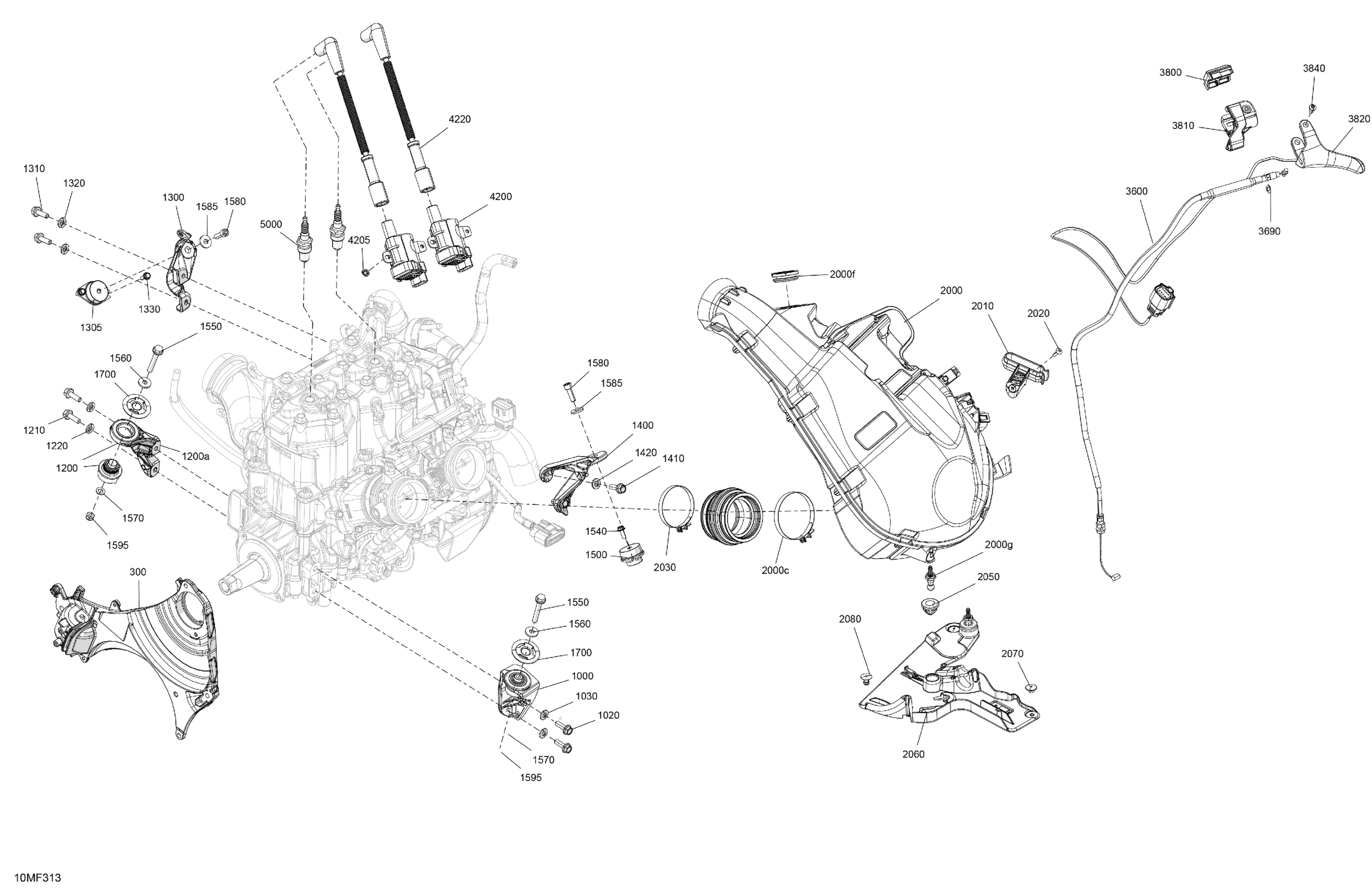

Ski-Doo North America - MXZ - SPORT - 600 EFI - BHTA - Neo Yellow - 15X129X1.25RS Track, 2026 02- Engine - System Diagram

Description

Price

300

LH Machined Brace

512061696

$154.99

1000

LH Rear Engine Support Ass'y

512061689

$81.99

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1030

Conical Spring Washer M8

250200146

$1.01

1200

LH Front Engine Support Ass'y | Includes 1200 to 1200a

512061688

$78.99

1200a

SUPPORT_ENGINE FL - Call your local BRP dealership

512061419

Unavailable

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1220

Conical Spring Washer M8

250200146

$1.01

1300

RH Front Engine Support

512061439

$27.99

1305

Vibration Damper

512061647

$59.49

1310

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1320

Conical Spring Washer M8

250200146

$1.01

1330

Hex. Flange Screw M6 X 16

250001062

$1.57

1400

RH Rear Engine Support Ass'y

512061411

$20.99

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

1420

Conical Spring Washer M8

250200146

$1.01

1500

Vibration Damper

512061647

$59.49

1540

Hex. Flange Screw M6 X 16

250001062

$1.57

1550

Hex. Flange Screw M8 X 55

207585544

$1.69

1560

Yellow, Washer

503183200

$3.19

1570

Flat Washer With Teflon 8 mm

250200008

$3.80

1580

Socket Head Screw M8 X 25

205082544

$1.15

1585

Yellow, Washer

503183200

$3.19

1595

Hex. Elastic Stop Nut M8

232581414

$0.56

1700

Engine Stopper

512061137

$8.57

2000

Chamber Ass'y | Includes 2000 to 2000g

508001251

$95.99

2000c

GEMI Clamp

293650212

$7.65

2000f

Rubber

512061083

$8.89

2000g

Screw

420441840

$2.11

2010

Cable Guide

512061325

$0.99

2020

Torx-Truss Pt K40 X 16

250000759

$2.11

2030

GEMI Clamp

293650212

$7.65

2050

Rubber Cap

420201630

$4.44

2060

Primary Chamber Support

512061627

$4.19

2070

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

2080

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

3600

Cable_Throttle

512061699

$20.99

3690

Circlip

414274500

$0.90

3800

Upper Housing

512060859

$8.89

3810

Lower Housing

512060860

$17.53

3820

Heated Hand Lever Accelerator

512061544

$124.99

3840

Flange Screw M5x12

250000991

$7.51

4200

Ignition Coil

512061358

$104.99

4205

Push Nut

389804300

$0.53

4220

Spark Plug Cable Ass'y

512061631

$27.49

5000

Spark Plug NGK BPR8ES

415130429

$4.23
