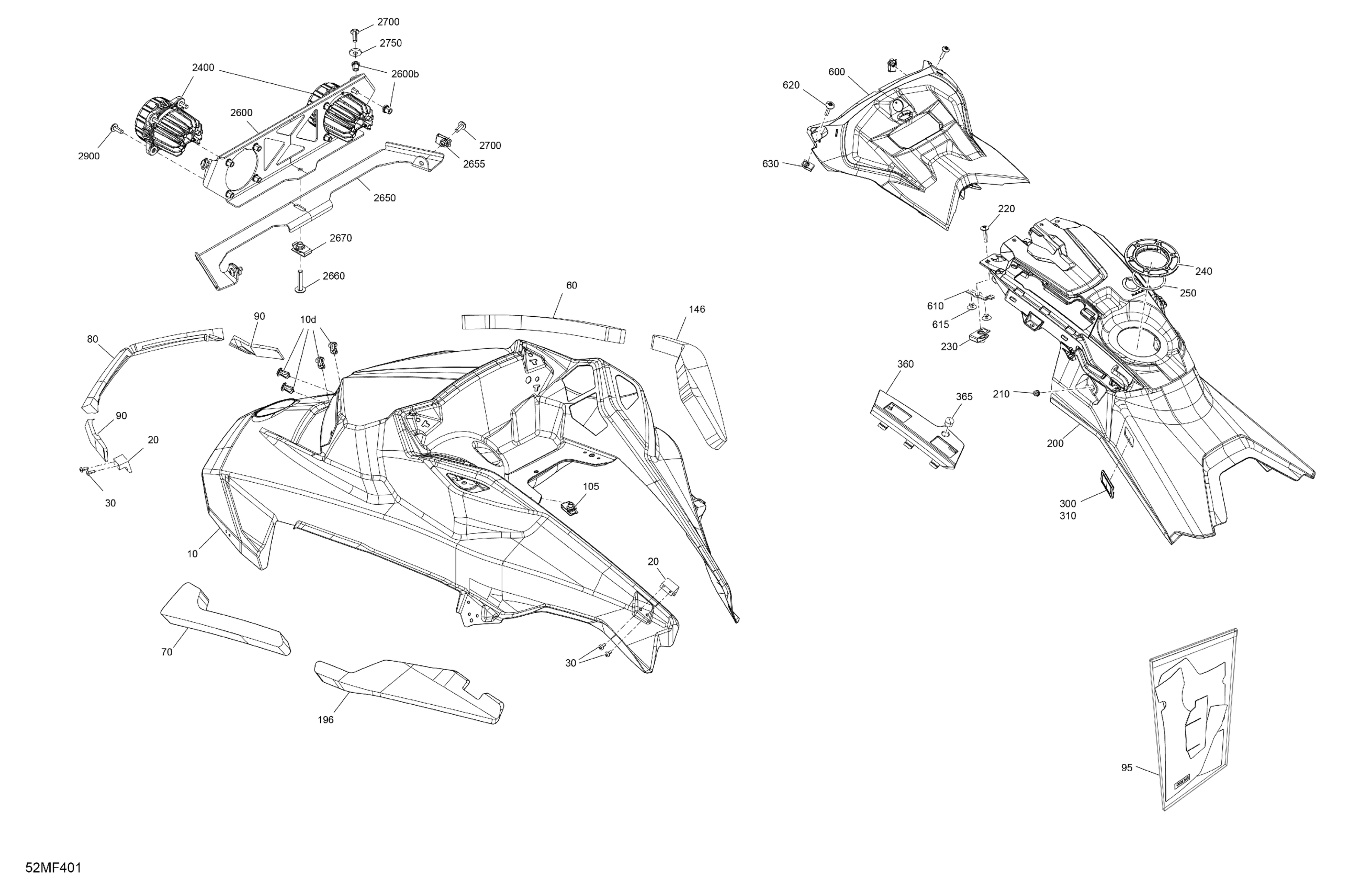

Ski-Doo North America - MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 07- Body - Hood Diagram

Description

Price

Hood Ass'y | Includes 10 to 10d

517307707

$519.99

10d

Tuflok Plastic Rivet

293150230

$1.47

Hook

517307050

$43.99

Torx Truss Screw K40 X 12

250000577

$2.11

RH Front Hood Foam

517305763

$13.49

LH Front Hood Foam

517305764

$14.99

Front Hood Foam

517306592

$13.49

Hood Foam

517306593

$13.49

Foil

517308251

$164.99

105

Panel Nut M5 X 0.8

250000958

$4.23

146

RH Hood Foam

517306001

$13.49

196

LH Hood Foam

517306002

$13.49

200

Rear Console

517307685

$189.99

210

Hex. Flange Elastic Nut M5

233251414

$1.04

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

O-Ring

706002839

$1.01

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

360

LH Front Console

517306583

$31.99

365

Cap

572051500

$5.89

600

Indicator Support

517305782

$11.99

610

Hook

517306967

$9.59

615

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

2400

Headlight Kit

517307720

$569.99

2600

Bracket Ass'y | Includes 2600 to 2600b

517307710

$67.99

2600b

Insert M5 X 0.8

293450268

$2.09

2650

Bracket Ass'y

517307712

$47.99

2655

Panel Nut M5 X 0.8

250000958

$4.23

2660

Torx Truss Screw M6 X 30

250000843

$2.11

2670

Panel Nut M6 X 1.0

250100198

$2.11

2700

Torx Screw M5 X 14

250000742

$1.47

2750

Rubber Washer 5 mm

250200024

$2.19

2900

Torx Screw M5 X 14

250000742

$1.47
