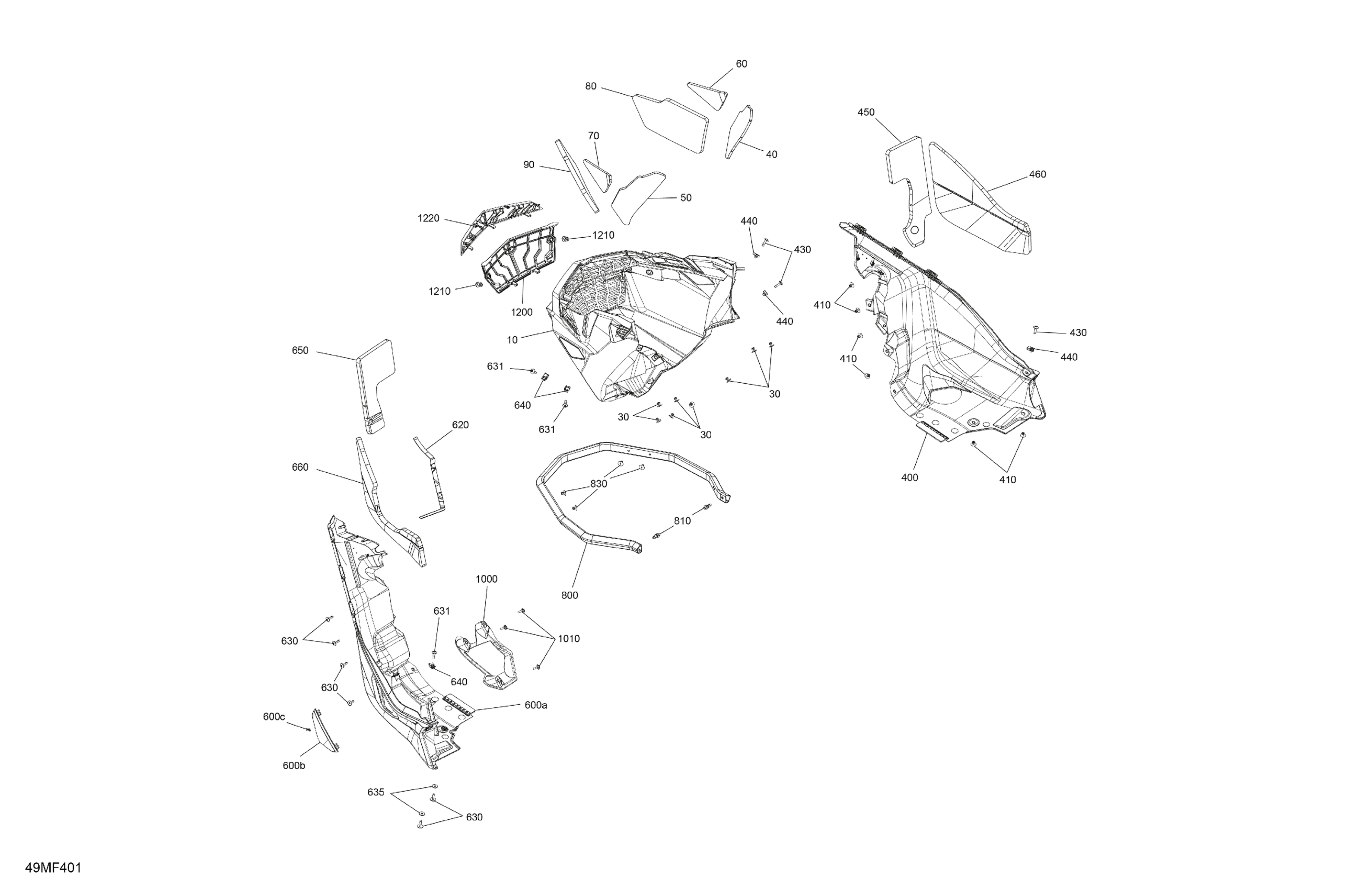

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 Body - Bottom Pan Diagram

Description

Price

Front Bottom Pan

502008329

$139.99

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

RH Upper Bottom Pan Foam

502007788

$18.99

LH Upper Bottom Pan Foam

502007789

$18.99

RH Bottom Pan Central Foam

502007545

$9.59

LH Bottom Pan Central Foam

502007546

$13.99

RH Lower Bottom Pan Foam

502007800

$20.99

LH Lower Bottom Pan Foam

502007799

$7.89

400

RH Bottom Pan

502008604

$99.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Bottom Pan Upper Foam

502007547

$11.99

460

RH Bottom Pan Lower Foam

502007548

$11.99

600a

LH Bottom Pan

502008332

$114.99

600b

Bottom Pan Door

502008333

$44.99

600c

Hairpin Cotter

269800431

$1.29

620

Neoprene Seal (1PAC=3M)

219704364

$27.49

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Bottom Pan Lower Foam

502007550

$11.99

800

Front Bumper

502007460

$170.49

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

1000

Protection Plate

502007670

$44.99

1010

Screw M4 X 16

250000725

$3.49

1200

Lower Prefilter Grille

502008674

$27.99

1210

Tuflok Plastic Rivet

293150230

$1.47

1220

Upper Prefilter Grille

502008672

$33.99
