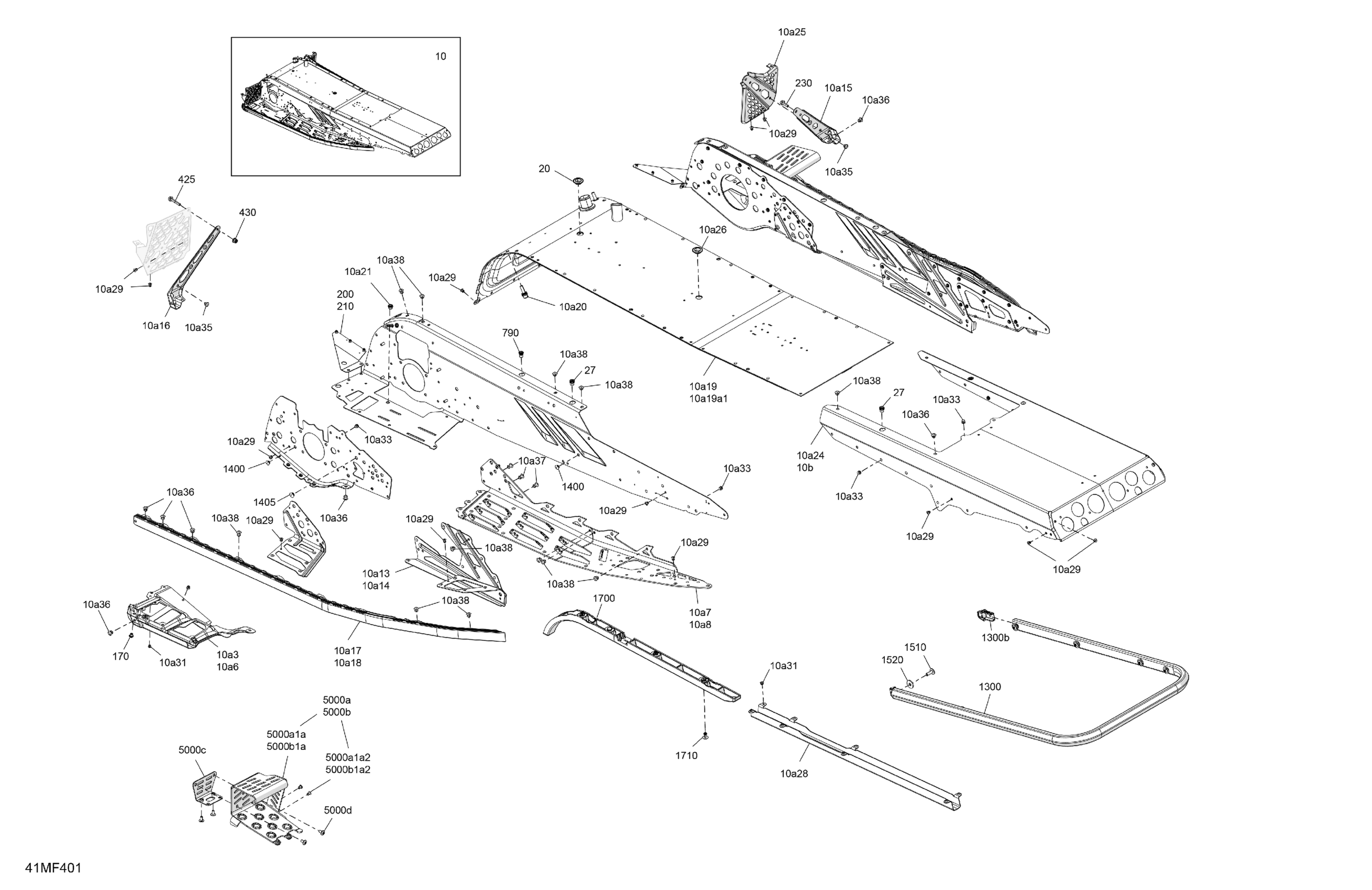

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module Kit 137

415130956

Unavailable

10a3

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10a6

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10a7

RH Footrest

518332921

$41.51

10a8

LH Footrest

518332306

$41.51

10a13

RH Rear Suspension Anchorage

518337140

Unavailable

10a14

LH Rear Suspension Anchorage

518337139

Unavailable

10a15

Stirrup Reinforcement

518334507

$18.43

10a16

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a17

RH Roller

518329023

$180.74

10a18

LH Roller

518329024

$180.74

10a19

Radiator Tunnel Kit 120 RS | Includes 10a19 to 10a19a1

518336013

$689.20

10a19a1

Radiator Tunnel 120

518335150

$775.35

10a20

Protruding Stud M8 x 22

250300652

$4.28

10a21

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10a24

Rear Tunnel 137

518334039

$199.97

10a25

RH Footrest

518333006

$38.43

10a26

Black, Plug

293730052

$6.37

10a28

Rear Radiator Guard

518332732

$33.82

10a29

Rivet Avibulb 3/16

293150203

$0.29

10a31

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a33

Henrob Rivet

293150245

$1.65

10a35

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a36

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a37

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10a38

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10b

Rear Tunnel 137

518334039

$199.97

20

Black, Plug

293730052

$6.37

27

Insert_Threaded M6 X 1

293450417

$4.51

170

Insert M5 - 0.8

293450267

$4.22

200

LH Junction Reinforcement

518329493

$20.74

210

RH Junction Reinforcement

518329494

$20.74

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper | Includes 1300 to 1300b

518331570

$109.97

1300b

Cap

520001612

$8.62

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

5000a

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

5000a1a

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

5000a1a2

Avex Rivet

390909100

$0.29

5000b

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

5000b1a

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

5000b1a2

Avex Rivet

390909100

$0.29

5000c

Support

518329838

$30.74

5000d

Torx Truss Screw M6 X 12

250000767

$1.66
