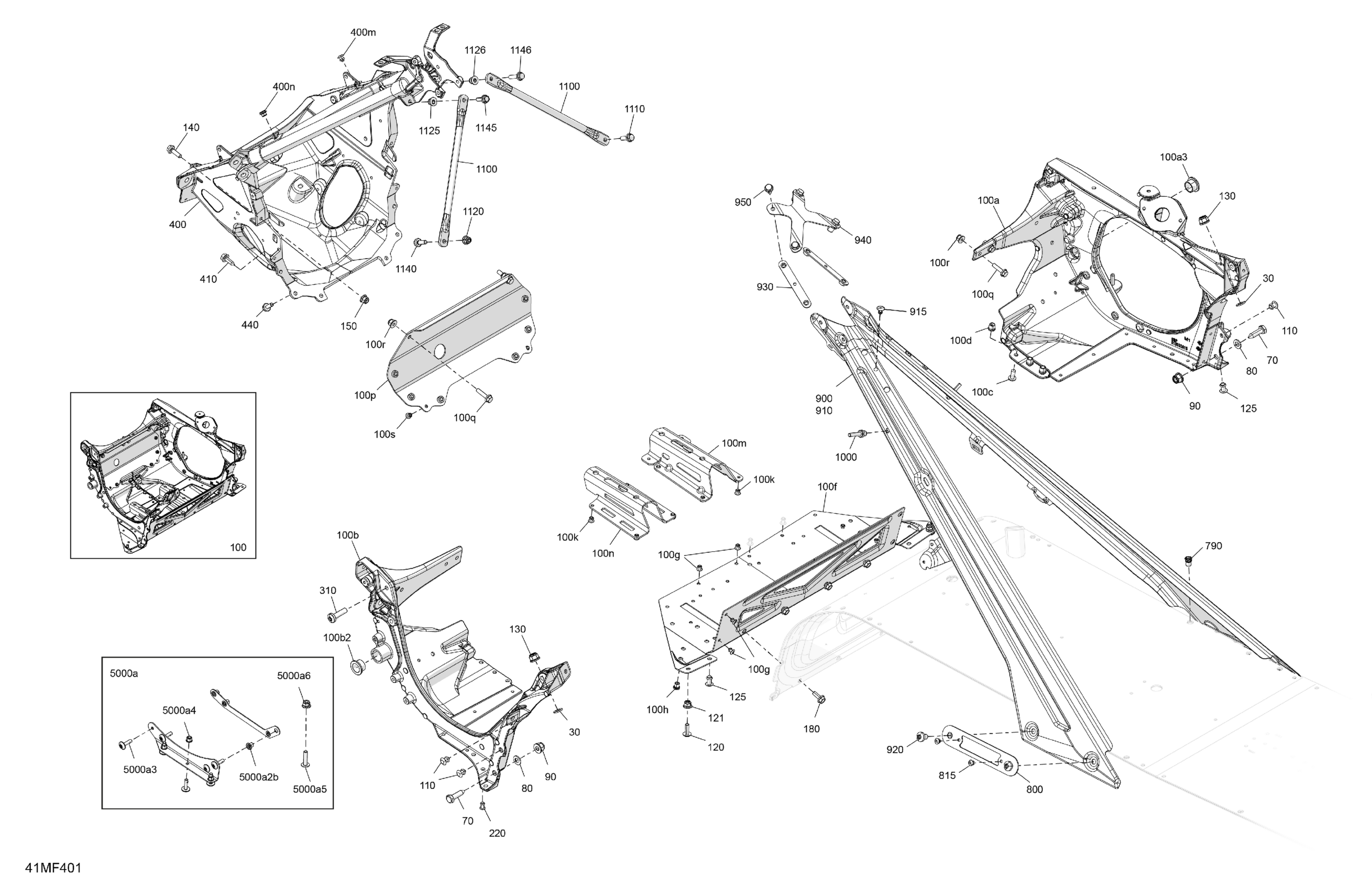

Ski-Doo North America - MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 06- Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.83

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module | Includes 100 to 100s

518335199

$729.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

$239.99

100a3

Leg Cushion

505073317

$8.66

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Cushion

505073317

$8.66

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100d

Collar Huck Magna-Grip 6.4

293150149

$0.48

100f

Bottom Plate

518332716

$36.99

100g

Rivet Avibulb 3/16

293150203

$2.09

100h

Insert M5 X 0.8

293450268

$2.09

100k

Rivet Avibulb 3/16

293150203

$2.09

100m

RH Cross Link

518329814

Unavailable

100n

LH Central Cross Member Support

518333927

$33.99

100p

Front Member

518330100

$60.99

100q

Hex. Flange Screw M6 X 20

207662046

$2.11

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100s

Rivet Avibulb 3/16

293150203

$2.09

110

Rivet Ornit 6,5 X 16.5

293150267

$2.40

120

Tork Screw M6 X 18

250000536

$2.11

121

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

125

Rivet Ornit 6,5 X 18.5

293150268

$2.40

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

180

Hex. Flange Screw M6 X 16

207661646

$1.36

220

Rivet Ornit 4,8 X 14,3

293150314

$0.30

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Module Chassis Suspension Ass'y | Includes 400 to 400n

518337012

$859.99

400m

Rivet Ornit 6,5 X 12.5

293150265

$2.40

400n

Insert Half Hex Body M6 x 1.0

250100199

$3.19

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

440

Hex. Flange Screw M6 X 16

207661636

$1.35

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

815

Rivet Ornit 4,8 X 8,8

293150313

$0.30

900

Deep Black, LH Rear Diagonal Cross Member

518336632

$119.99

910

Deep Black, RH Rear Diagonal Cross Member

518336633

$119.99

915

Rivet Ornit 4,8 X 11,3

293150312

$0.30

920

Screw-Torx Truss M8 X 12

250001376

$3.38

930

Retaining Plate

518336902

$21.99

940

Brace Rear Member

518329499

$16.99

950

Torx Head Screw M6 X 16

250000717

$2.11

1000

Stud M5 X 20

250300629

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1126

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1145

Hex. Flange Screw M6 X 20

207662046

$2.11

1146

Hex. Flange Screw M6 X 25

207662556

$4.44

5000a

LH Central Chassis Reinforcement Kit | Includes 5000a to 5000a6

518335369

$65.99

5000a2b

Insert M5 - 0.8

293450267

$4.59

5000a3

Torx Truss M5 X 20

250000586

$4.44

5000a4

Elastic Flange Nut M5

233251494

$2.11

5000a5

Torx-Truss M/S M6 X 25

250001000

$5.29

5000a6

Elastic Flange Nut M6 X 1.0

233261416

$2.11
