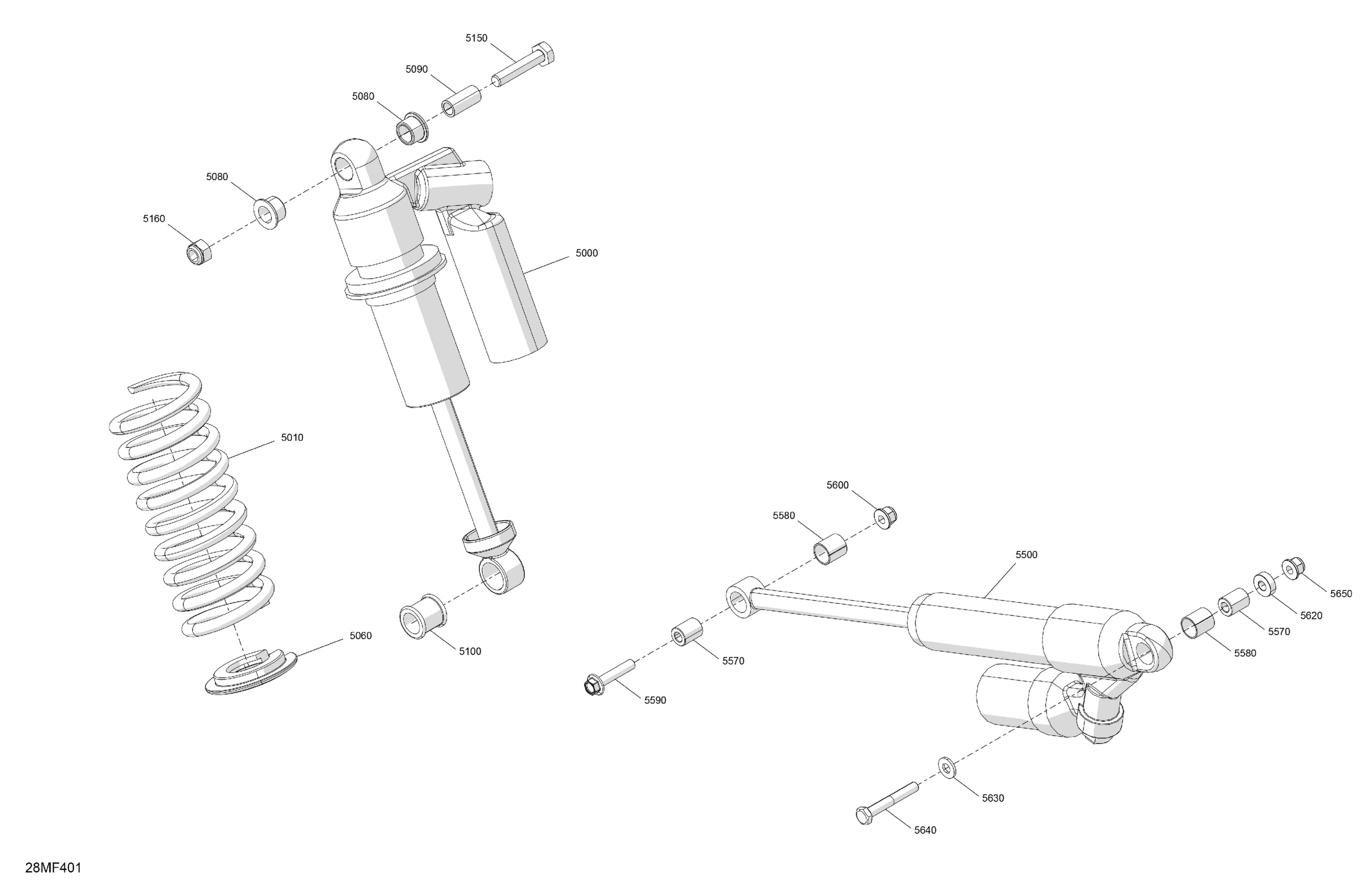

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock Absorber

503196829

$812.99

5010

Spring

503195824

$64.15

5060

Central Spring Stopper

503196901

$49.22

5080

Urethane Bushing

503189117

$6.67

5090

Bushing | Includes 240d to 240d1

503189282

$4.06

5100

Bushing

503189271

$10.15

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5160

Elastic Locking Nut M10

233601466

$2.00

5500

Rear Shock Absorber

503196900

$877.49

5570

Axle Shock Absorber

503196509

$9.69

5580

Leg Cushion

505072663

$7.18

5590

Hex Flange Screw M8 X 40

207684056

$1.40

5600

Elastic Flange Nut M8

233281466

$0.96

5620

Spacer

503190526

$8.46

5630

Washer

503192494

$3.01

5640

Hex. Screw M8 X 55

207085556

$1.60

5650

Elastic Flange Nut M8

233281466

$0.96
