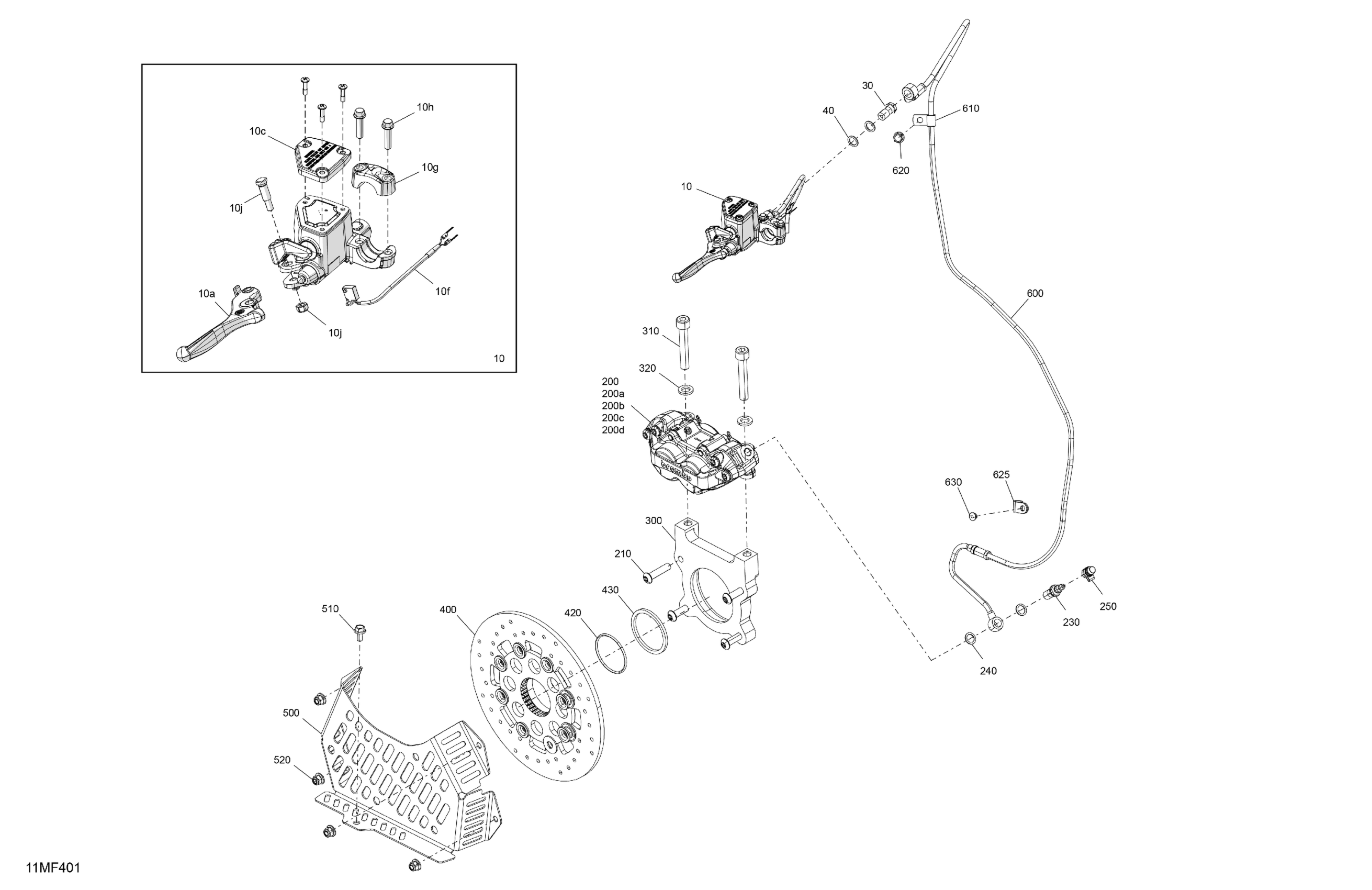

Ski-Doo North America - MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 03- Mechanic - Brakes Diagram

Description

Price

Master Brake Cylinder | Includes 10 to 10j

507032750

$339.99

10a

Parking Brake Lever

507032739

$96.99

10c

Reservoir Cover Kit

507032737

$109.99

10f

Micro Switch

507032738

$72.99

10g

Mounting Clamp

507032761

$24.99

10h

Hex Flange Screw M6 X 25

229000652

$2.11

10j

Pin Ass'y

415030000

$19.99

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

200

Brake Caliper | Includes 200 to 200d

507032778

$540.49

200a

Brake Pads Kit

507032615

$116.49

200b

Pin & Spring Kit

507032616

$42.99

200c

Spring Plate

507032617

$59.49

200d

Spring Clips

507032618

$34.99

210

Screw-torx Button Head M8 X 35

250000971

$5.03

230

Banjo Bolt/ Bleeder

705601201

$19.99

240

Washer

414920600

$1.90

250

Bleeder Bolt Cap

705601190

$4.44

300

Brake Caliper Support

507032647

$121.99

310

Screw Socket S,Grip M10 X 60

205506044

$8.22

320

Washer

503192496

$0.77

400

Disc Brake Ass'y

507032740

$259.49

420

O-Ring

293300134

$2.32

430

Spacer

507032612

$13.16

500

Disc Brake Guard

507032674

$91.99

510

Hex. Flange Screw M6 X 12

207661254

$2.11

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Brake Hose

507032649

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
