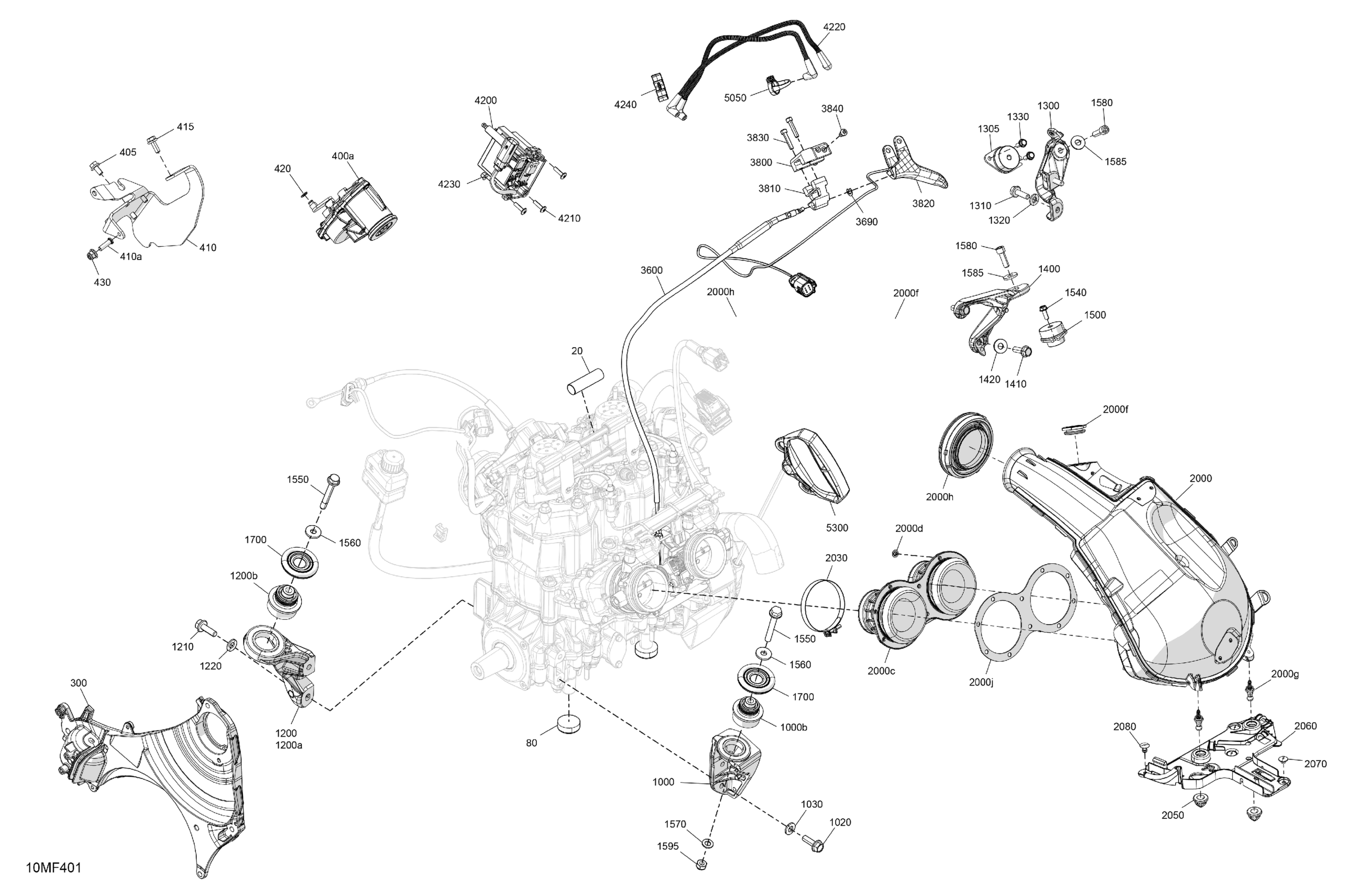

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 Engine - System Diagram

#

Description
Price

20

Braided Sleeve 60MM Long

515178492

$5.22

80

Stopper

512061204

$22.28

300

LH Side Member

512061447

$145.35

400a

Servo Motor Ass'y

420889432

$311.51

405

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

410

Electric Motor Support | Includes 410 to 410a

512061597

$83.82

410a

Clinch Stud M6 X 20

250300027

$1.92

415

Hex. Flange Screw M6 X 16

207661636

$1.06

420

Circlip

293370122

$4.00

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1000

LH Rear Engine Support Ass'y | Includes 1000 to 1000b

512061669

$77.66

1000b

Vibration Damper

512061582

Unavailable

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1030

Conical Spring Washer M8

250200146

$0.83

1200

LH Front Engine Support Ass'y | Includes 1200 to 1200b

512061581

$77.66

1200a

SUPPORT_ENGINE FL - Call your local BRP dealership

512061419

Unavailable

1200b

Vibration Damper

512061582

Unavailable

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1220

Conical Spring Washer M8

250200146

$0.83

1300

RH Front Engine Support

512061439

$26.12

1305

Vibration Damper

512061454

$57.66

1310

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1320

Conical Spring Washer M8

250200146

$0.83

1330

Hex. Flange Screw M6 X 16

250001062

$1.43

1400

RH Rear Engine Support Ass'y

512061411

$18.43

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1420

Conical Spring Washer M8

250200146

$0.83

1500

Vibration Damper

512061454

$57.66

1540

Hex. Flange Screw M6 X 16

250001062

$1.43

1550

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$1.94

1560

Yellow, Washer

503183200

$3.00

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1580

Socket Head Screw M8 X 25

205082544

$0.92

1585

Yellow, Washer

503183200

$3.00

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1700

Engine Stopper

512061598

$18.43

2000

Primary Airbox | Includes 2000 to 2000j

508001362

$171.51

2000c

Intake Adapter

508001006

Unavailable

2000d

Push Nut

732610072

$1.72

2000f

Rubber

512061083

$8.38

2000g

Screw

420441840

$2.06

2000h

Boot

508000805

$16.89

2000j

Intake Plate

508000845

Unavailable

2030

GEMI Clamp

293650212

$6.26

2050

Rubber Cap

420201630

$4.28

2060

Airbox Support

512061274

$10.57

2070

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

2080

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

3600

Throttle Cable

512061295

$19.97

3690

Circlip

414274500

$0.74

3800

Upper Housing

512061365

$73.05

3810

Lower Housing

512061294

$73.05

3820

Throttle Ass'y

512061266

$114.58

3830

Socket Screw M5 X 25

205052544

$1.34

3840

Flange Screw M5x12

250000991

$6.18

4200

Ignition Coil

512061168

$129.97

4210

Torx Screw M5 X 20

250000724

$1.39

4220

Spark Plug Cable Ass'y

512061609

$26.89

4230

Elastic Flange Nut M5

233251494

$1.74

4240

Spark Plug Wire Holder

512061238

$4.28

5050

Clamp

512060993

$5.22

5300

Starter Grip

512060136

$14.54
