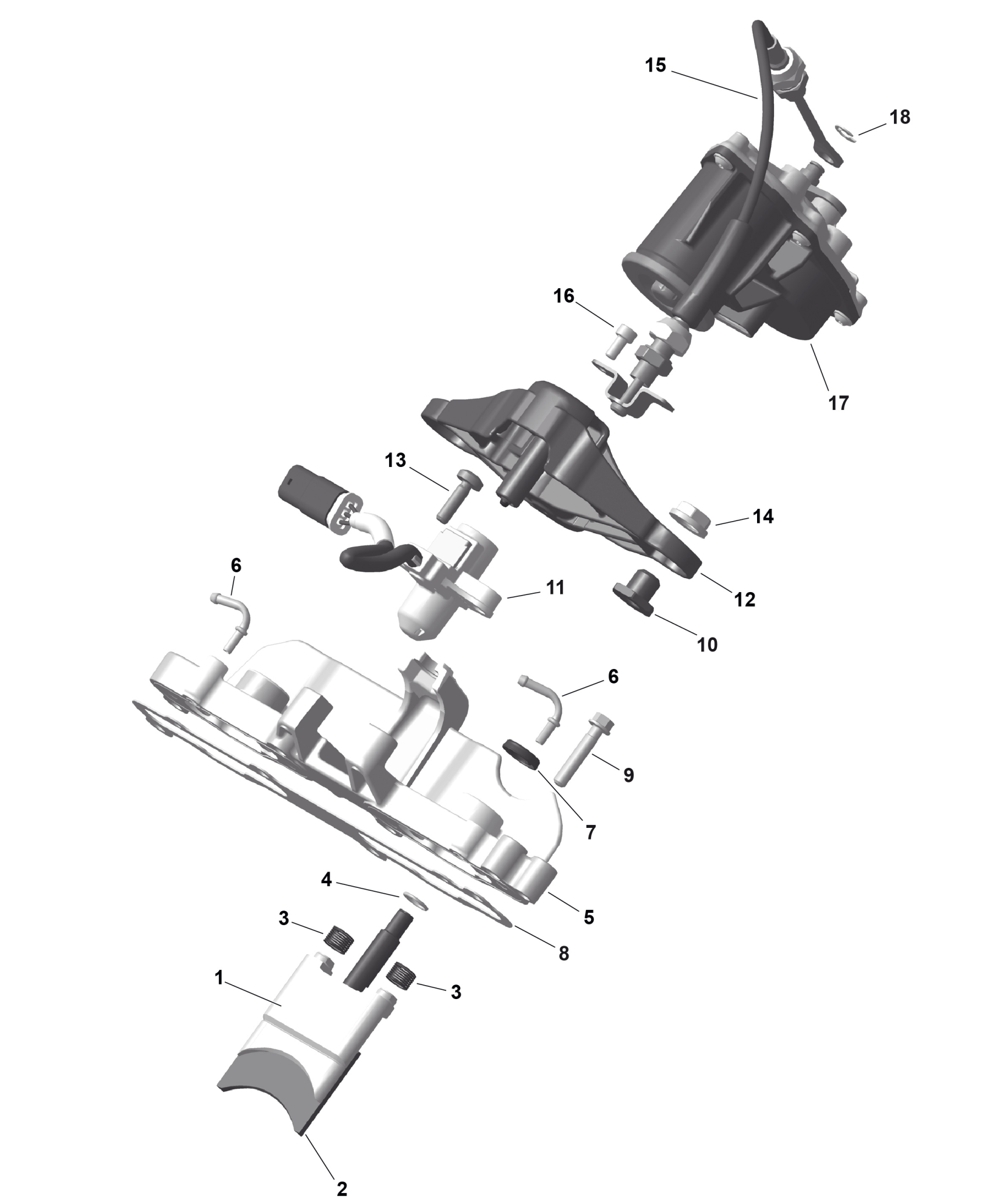

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 ROTAX - RAVE Valve Diagram

Exhaust Valve Upper

420954100

$69.20

Exhaust Valve Lower

420954095

$93.05

Spring

420238558

$5.22

O-Ring

420950950

$0.83

Valve Rod Housing Ass'y | Includes no. 6-7

420954067

$92.28

Fitting 90D

420924051

$9.31

Oil Seal | Included in gasket kit

420950732

$8.34

Gasket Valve Rod Housing | Included in gasket kit

420631001

$11.52

Torx Flange Screw M6 X 30

420440647

$1.97

Collar Nut M8

420942331

$4.28

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$109.20

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$109.20

Valve Bar

420855290

Unavailable

Torx Flange Screw M6 X 20

420441386

$2.06

Nut M12 X 1.5

420942190

$12.52

Bowden Cable Ass'y

420997033

$105.35

Allen Screw M5 X 10

420240692

$1.39

Servo Motor Ass'y

420889432

$311.51

Retaining Ring

420945710

$0.49
