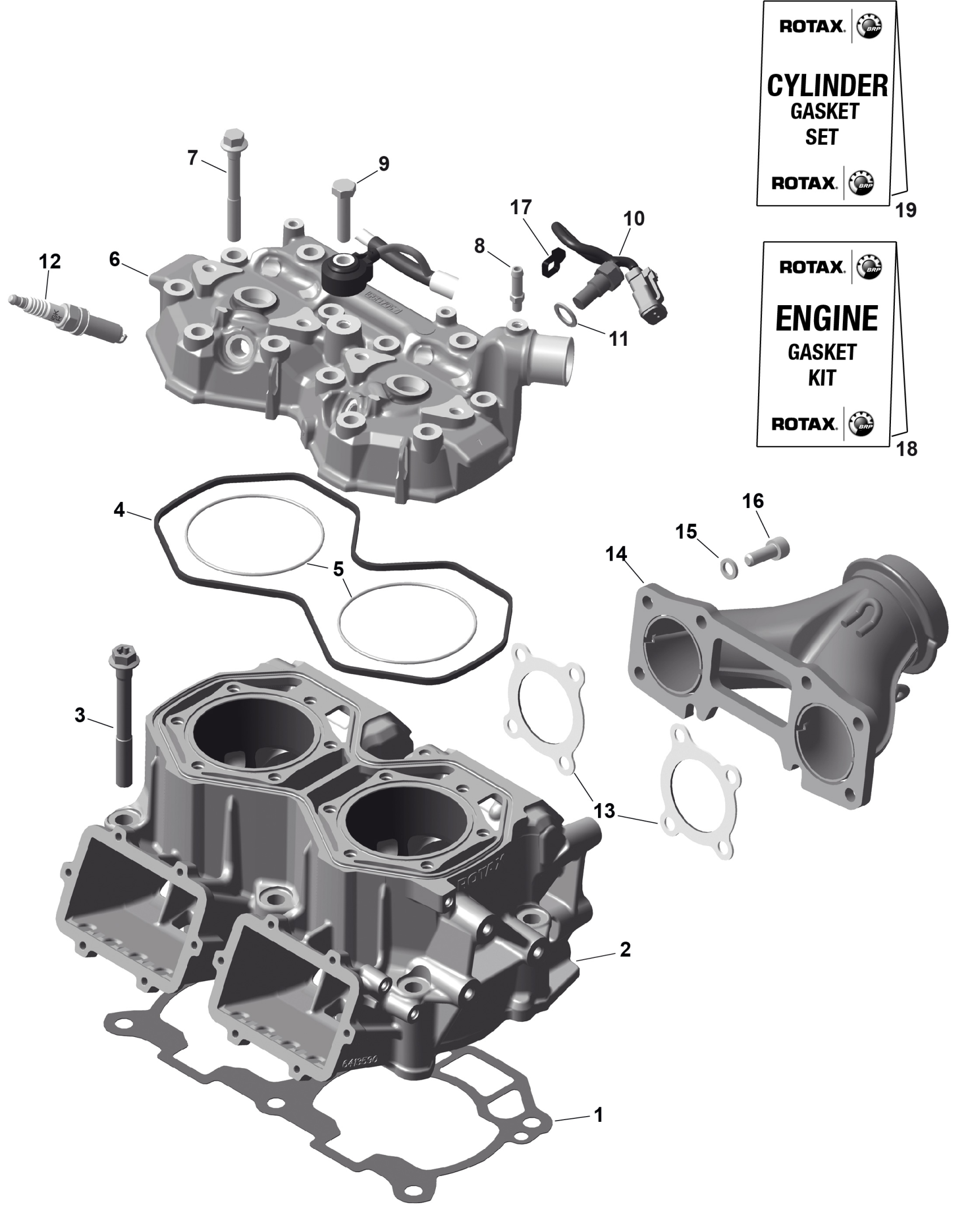

Ski-Doo MXZ - RACING - 600 RS - BMTA - Neo Yellow - 15X137X1.75R Track, 2026 ROTAX - Cylinder Head Diagram

Gasket 0.5 | Included in gasket kit

420831070

$17.53

Gasket 0.8 | Included in gasket kit

420831073

$23.49

Gasket 0.9 | Included in gasket kit

420831074

$21.99

Gasket 0.6 | Included in gasket kit

420831071

$20.99

Gasket 0.7 | Included in gasket kit

420831072

$20.49

Cylinder

420413595

$1.00

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

Square Ring | Included in gasket kit

420430044

$6.19

O-Ring Cylinder | Included in gasket kit

420831825

$5.99

Cylinder Head

420413449

$329.99

Collar Hex Screw M8 X 68.5

420640959

$7.44

Hose Nipple

420924724

$14.83

Hex. Screw M8 X 35

207083544

$1.15

Temperature Sensor This part replaces 420664508.

420664509

$149.99

Aluminum Sealing Ring

420250016

$5.39

Spark Plug NGK ILKR9Q7G This part replaces 420297939.

415130652

$21.99

Gasket | Included in gasket kit

420430487

$8.89

Exhaust Manifold

420873040

$289.99

Washer

420427290

$2.11

Allen Screw M8 X 22

420841051

$2.11

Locking Tie 175 X 4 MM

420651817

$1.05

Engine Gasket Set

420894374

$248.99

Cylinder Gasket Set

420894375

$285.99
