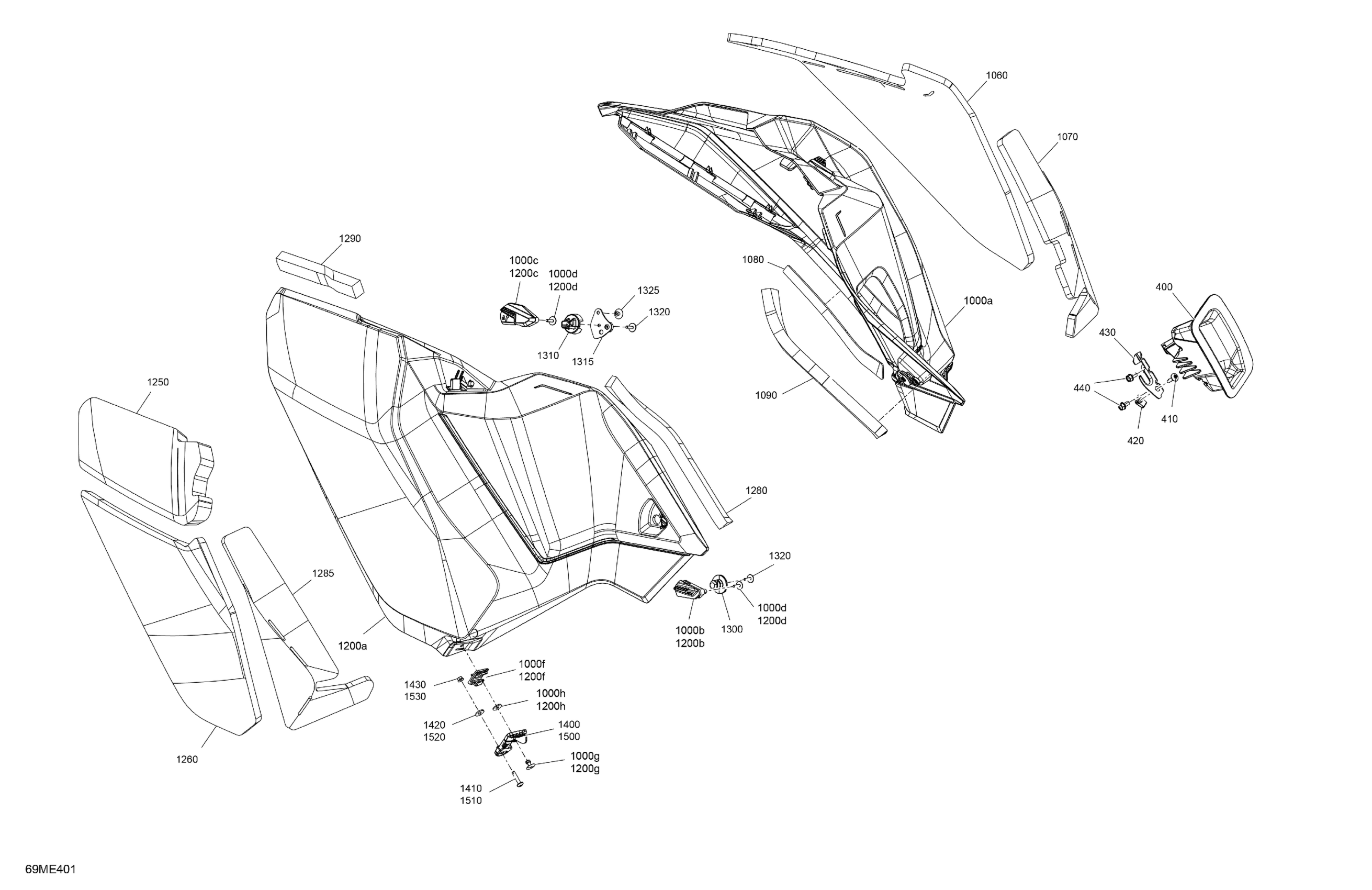

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Body - Side Panels Diagram

Description

Price

400

RH Console

517306759

$32.81

410

Torx Truss M5 X 20

250000586

$3.61

420

Panel Nut M5 X 0.8

250000958

$3.48

430

Rope Guide

517306315

$5.45

440

Hex. Flange Screw M6 X 12

210261250

$1.56

1000a

Deep Black, RH Panel

517306871

$237.28

1000b

RH Rear Latch

517305773

$13.79

1000c

RH Front Latch

517305979

$13.46

1000d

Screw M4 X 16

250000725

$2.87

1000f

RH Hook

517306311

$10.49

1000g

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1000h

Washer

517124300

$0.16

1060

RH Central Panel Foam

517306188

$27.58

1070

RH Rear Panel Foam

517306586

$10.15

1080

Rubber Sheet

517306262

$26.09

1090

RH Rear Panel Foam

517306480

$8.55

1200a

LH Panel

517306985

$167.88

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$2.87

1200f

LH Hook

517306312

$10.49

1200g

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

1200h

Washer

517124300

$0.16

1250

LH Front Panel Foam

517305769

$16.39

1260

LH Central Panel Foam

517306189

$14.90

1280

LH Rear Panel Foam

517306479

$8.55

1285

LH Rear Panel Foam

517305771

$10.15

1290

Foam

517306594

$9.82

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1315

Plate

517306968

$12.21

1320

Screw M4 X 16

250000725

$2.87

1325

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

1400

RH Lower Latch

517306309

$15.64

1410

Torx Screw M5 X 25

250000762

$1.74

1420

Washer

517124300

$0.16

1430

Hex. Flange Nut M5

233151414

$0.46

1500

LH Lower Latch

517306310

$15.64

1510

Torx Screw M5 X 25

250000762

$1.74

1520

Washer

517124300

$0.16

1530

Hex. Flange Nut M5

233151414

$0.46
