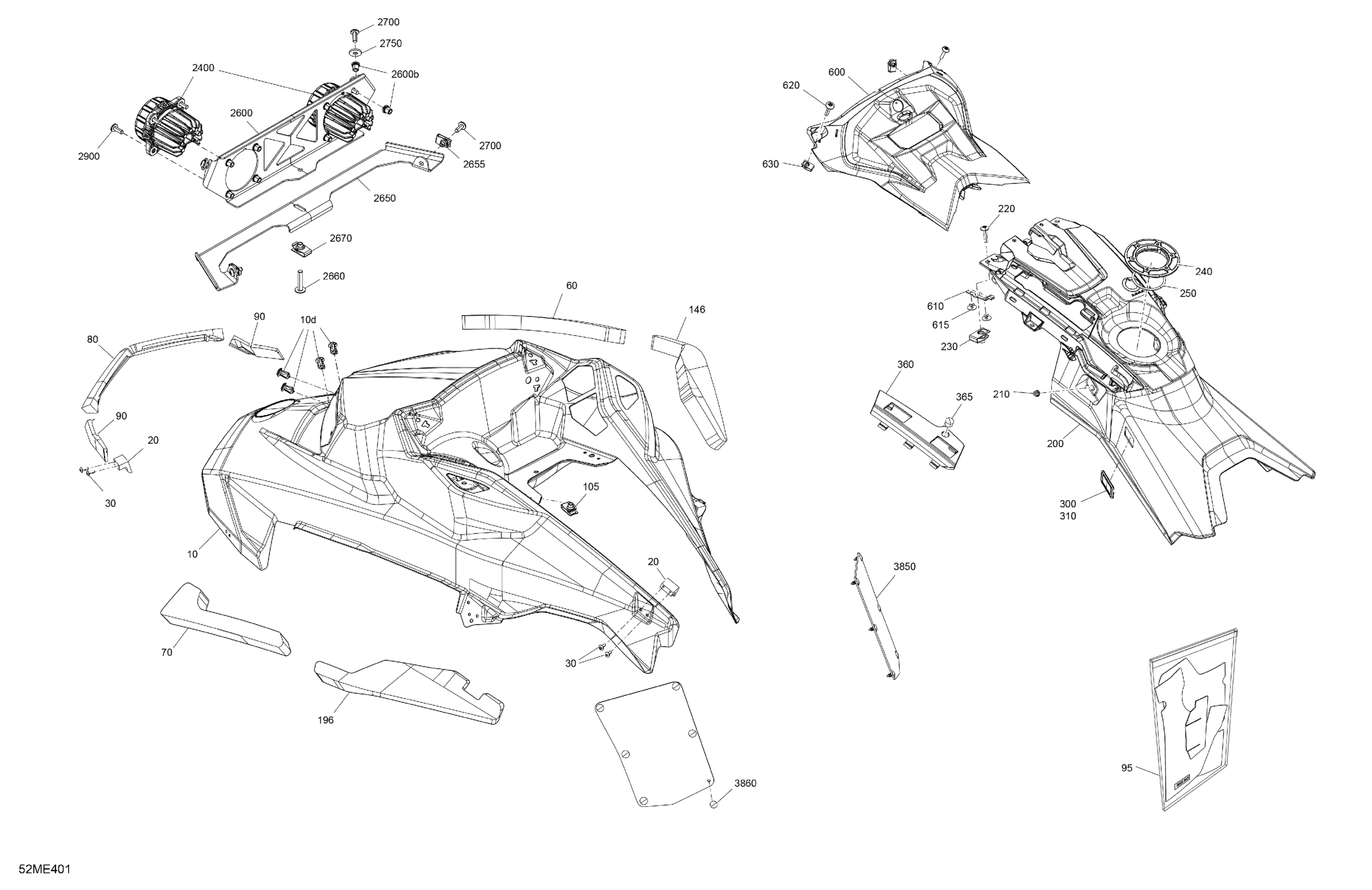

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Body - Hood Diagram

#

Description
Price

10

Hood Ass'y | Includes 10 to 10d

517307707

$519.99

10d

Tuflok Plastic Rivet

293150230

$1.21

20

Hook

517307050

$22.36

30

Torx Truss PT K40 x 12

250001131

$1.74

60

RH Front Hood Foam

517305763

$11.19

70

LH Front Hood Foam

517305764

$11.19

80

Front Hood Foam

517306592

$11.19

90

Hood Foam

517306593

$11.15

95

Foil

517308251

$148.48

105

Panel Nut M5 X 0.8

250000958

$3.48

146

RH Hood Foam

517306001

$11.19

196

LH Hood Foam

517306002

$11.19

200

Rear Console

517307685

$172.36

210

Flange Elastic Nut M5

233251434

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Round Slotted Nut

517309507

$10.88

250

O-Ring

706002839

$0.96

300

RH Cap

517306587

$1.27

310

LH Cap

517306588

$1.27

360

LH Front Console

517306583

$29.07

365

Cap

572051500

$5.22

600

Indicator Support

517305782

$9.73

610

Hook

517306967

$9.79

615

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

620

Torx Truss M5 X 20

250000586

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

2400

Headlight Kit

517307720

$513.40

2600

Bracket Ass'y | Includes 2600 to 2600b

517307710

$61.91

2600b

Insert M5 X 0.8

293450268

$1.90

2650

Bracket Ass'y

517307712

$43.25

2655

Panel Nut M5 X 0.8

250000958

$3.48

2660

Torx Truss Screw M6 X 30

250000843

$1.74

2670

Panel Nut M6 X 1.0

250100198

$1.73

2700

Torx Screw M5 X 14

250000742

$1.20

2750

Rubber Washer 5 mm

250200024

$1.77

2900

Torx Screw M5 X 14

250000742

$1.20

3850

Panel Plate

517306595

$81.31

3860

Black, Dart

414644300

$0.78
