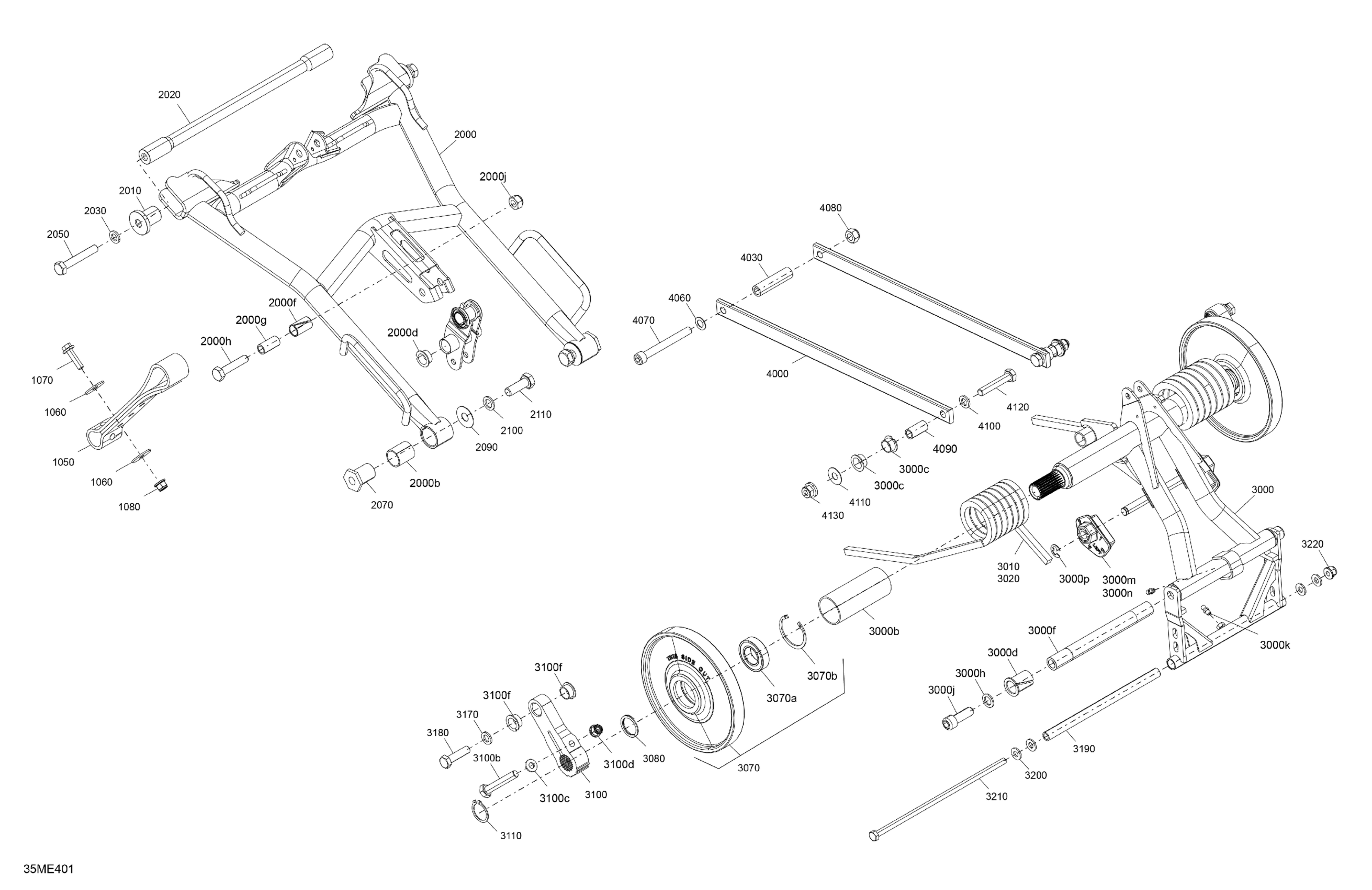

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Suspension - Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503192360

$20.99

1060

Stainless Steel Flat Washer

234082670

$2.11

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

2000

Central Suspension Arm Ass'y | Includes 2000 to 2000j

503197502

$455.99

2000b

Bushing

503191554

$6.14

2000d

Bushing

503197556

$7.83

2000f

Bushing

503193037

$16.18

2000g

Bushing | Includes 240d to 240d1

503189282

$4.34

2000h

Hex. Screw M5 X 20

207152044

$0.90

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Bushing

503192721

$35.99

2020

Slide Bushing

503192713

$98.49

2030

Flat Washer

250200143

$3.17

2050

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Arm Ass'y | Includes 3000 to 3000p

503195835

$211.99

3000b

Bushing

503194817

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

Cushion

503191640

$5.93

3000f

Lower Shaft

503193867

$58.99

3000h

Washer

503192491

$4.54

3000j

Socket Head Screw M12 X 35

205523554

$4.44

3000k

Grease Fitting

408200700

$3.49

3000m

LH Cam Adjuster

503191565

$16.49

3000n

RH Cam Adjuster

503191566

$16.49

3000p

E-Circlip

293370013

$0.65

3010

LH Spring

503195371

$79.49

3020

RH Spring

503195372

$79.49

3070

Black, Wheel Ass'y 180mm | Includes 3070 to 3070b

503194819

$51.99

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3080

Axle Spring

503189146

$9.59

3100

Link Ass'y | Includes 3100 to 3100f

503194804

$83.99

3100b

Hex. Screw M8

207085056

Unavailable

3100c

Washer

503192494

$3.17

3100d

Elastic Flange Nut M8

233281466

$1.01

3100f

Swivel Bushing

503191555

$7.83

3110

Retaining Ring

293370080

$2.29

3170

Flat Washer

250200143

$3.17

3180

Cap Screw Hex. M10 X 40

207204056

$7.51

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503197506

$59.99

4030

Bar Axle

503191192

$41.49

4060

Flat Washer

250200084

$3.38

4070

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

4080

Elastic Locking Nut M10

233601466

$2.11

4090

Pivot Bar

506151273

$15.99

4100

Washer

503192496

$0.77

4110

Washer

250200032

$5.08

4120

Hex. Screw S.Grip M10 X 55

250000605

$8.11

4130

Flange Elastic Nut M10

233201466

$3.17
