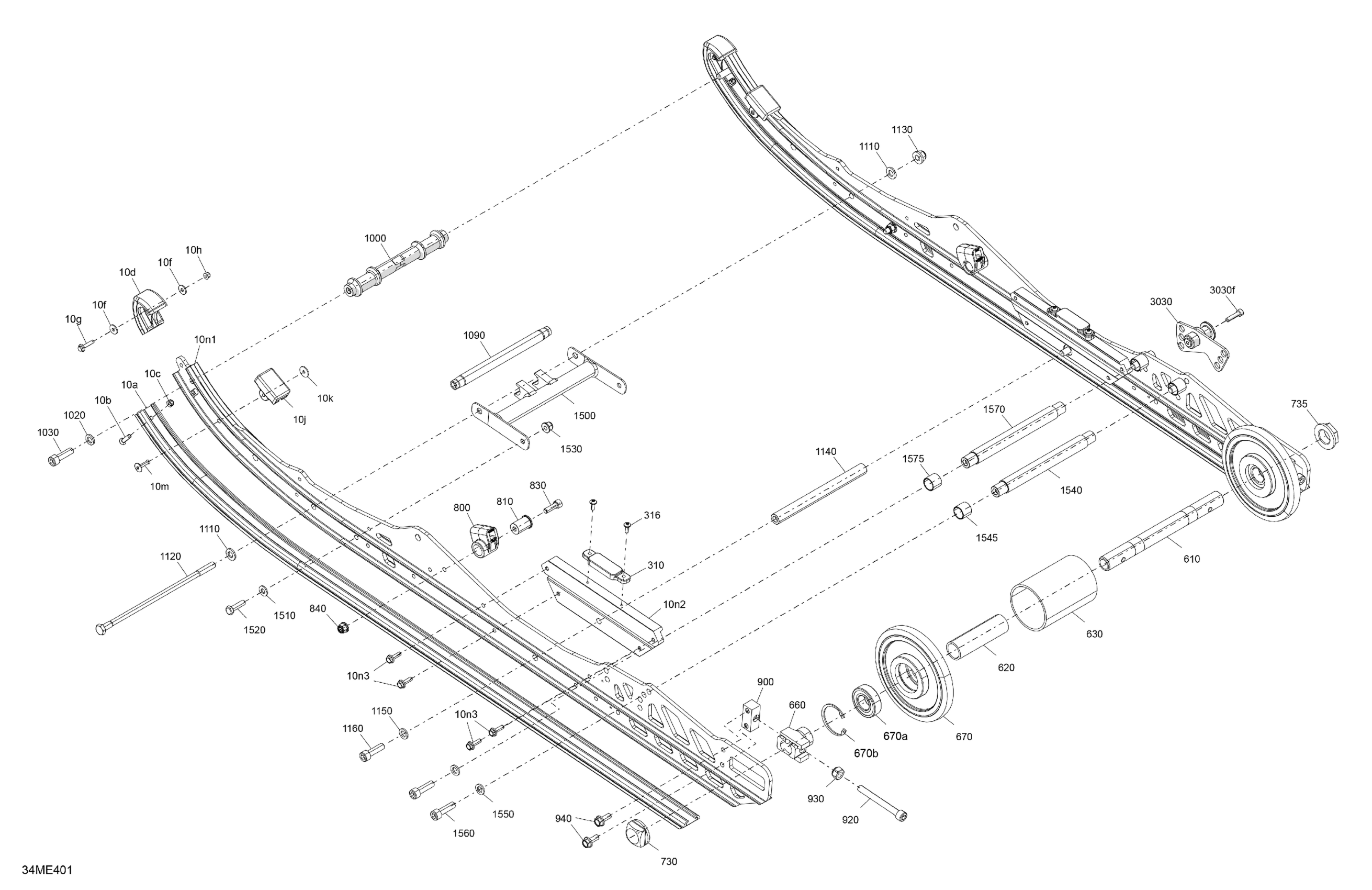

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Black, Slider 146

503191499

$32.06

10b

Phillips Screw M6 X 25

208562531

$2.00

10c

Elastic Stop Nut M6

232561434

$1.78

10d

Rail Protector

503196872

$23.10

10f

Washer

250200140

$0.96

10g

Hex. Flange Screw M5 X 25

207652544

$0.48

10h

Flange Elastic Nut M5

233251434

$1.91

10j

Rubber Stopper

503193504

$12.31

10k

Washer

503191273

$1.03

10m

Rivet Ornit 4.8 X 27.5

293150256

$1.88

10n1

Neo Yellow, Suspension Rail 137

503197730

$272.36

10n2

Rail Reinforcement

503194559

$101.46

10n3

Hex. Flange Screw M6 x 20

207662056

$0.96

310

Rail Stopper

503190263

$7.04

316

Torx Screw M5 X 14

250000742

$1.37

610

Rear Axle

503193692

$125.34

620

Center Spacer

503156000

$8.66

630

Socket

503196948

$14.36

660

Spacer

503193694

$35.04

670

Wheel 165" | Includes 670 to 670b

503194127

$48.48

670a

Ball Bearing

293350153

$10.82

670b

Retaining Ring

415129371

$8.66

730

Nut

503193695

$26.09

735

Nut

503193696

$24.60

800

Spring Support Kit

861805547

$7.90

810

Bushing

503196210

$10.72

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503193697

$37.28

920

Screw Socket HD.DIN.912

250001010

$10.18

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex Screw Washer Head M8 X 20

207582054

$3.00

1000

Machined Axle Strap Stopper

503197707

$76.09

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09

1090

Pivot Axle

503193435

$37.28

1110

Flat Washer

250200143

$3.01

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

1140

Pin

503196885

$105.19

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1500

Central Axle Support

503196887

$101.46

1510

Washer

503192494

$3.01

1520

Hex. Cap Screw M8 X 30

207183054

$4.15

1530

Elastic Flange Nut M8

233281466

$0.96

1540

Limit Axle

503195790

$76.09

1545

Skid Bushing

503195791

$26.09

1550

Washer

503192496

$0.73

1560

Socket Head Screw M10 X 35

205503554

$7.09

1570

Limit Axle

503195790

$76.09

1575

Skid Bushing

503195791

$26.09

3030

Holeshot Device | Includes 3030 to 3030f

503197574

$258.93

3030f

Screw Socket Head M6 X 25

250001239

$2.82
