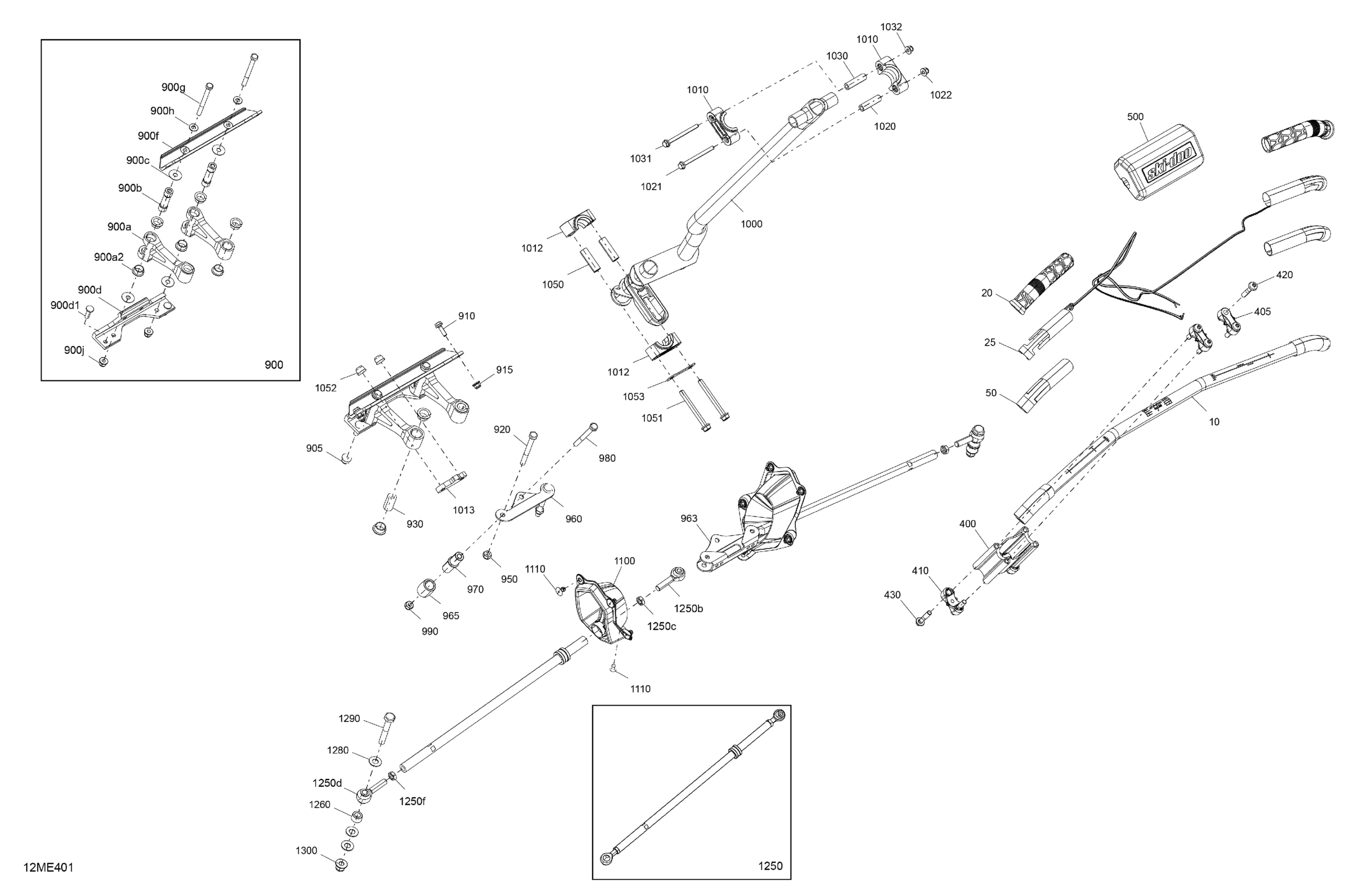

Ski-Doo North America - MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 03- Mechanic - Steering Diagram

#

Description
Price

10

Neo Yellow, Handlebar

506153252

$91.49

20

Grip 148mm

506152560

$16.88

25

Heated Film

506152856

$48.99

50

Thermal Insulation

506153176

$6.09

400

Deep Black, Handlebar Riser Block 70MM

506153358

$90.99

405

Steering Support

506152894

$14.49

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

500

Steering Pad Ass'y

506152994

$56.99

900

Steering Linkages Ass'y | Includes 900 to 900j

506152951

$229.99

900a

Swivel Arm | Includes 900a to 900a2

506152952

Unavailable

900a2

Bushing

503194671

$7.13

900b

Swivel Pivot

506152792

$28.99

900c

Washer

503191800

$2.11

900d

Driving Shaft Support | Includes 900d to 900d2

506152949

Unavailable

900d1

Clinch Stud

250300038

$4.29

900f

Support Plate

506152955

Unavailable

900g

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

900h

Washer

503192494

$3.17

900j

Elastic Flange Nut M8

233281466

$1.01

905

Hex. Elastic Flange Nut M8

233281416

$1.48

910

Hex. Flange Screw M6 X 20

207662044

$2.00

915

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

920

Hex. Flange Screw M8 X 70

207687044

$7.41

930

Swivel Pivot

506152957

$28.99

950

Hex. Elastic Stop Nut M8

232581414

$0.56

960

Swivel Bar

506152958

$104.99

963

Swivel Bar

506152959

$104.99

965

Steering Lever Spacer

506152956

$19.99

970

Pivot

506152960

$28.99

980

Hex. Flange Screw M8 X 70

207687044

$7.41

990

Hex. Elastic Stop Nut M8

232581414

$0.56

1000

Main Tube

506152944

$264.99

1010

Half-Housing

506152293

$12.99

1012

Half-housing

506152993

$12.99

1013

Spacer

506152961

$15.99

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152937

$12.99

1051

Hex. Flange Screw M8 X 75

207687544

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1250

Rod Ass'y | Includes 1250 to 1250g

506153020

$71.99

1250b

LH Threaded Ball Joint

506152344

$41.49

1250c

LH Threaded Hex. Jam Nut M10

250100016

$0.74

1250d

RH Threaded Ball Joint

506152684

$44.49

1250f

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1260

Washer

506152713

$15.29

1280

Washer

506152582

$4.55

1290

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
