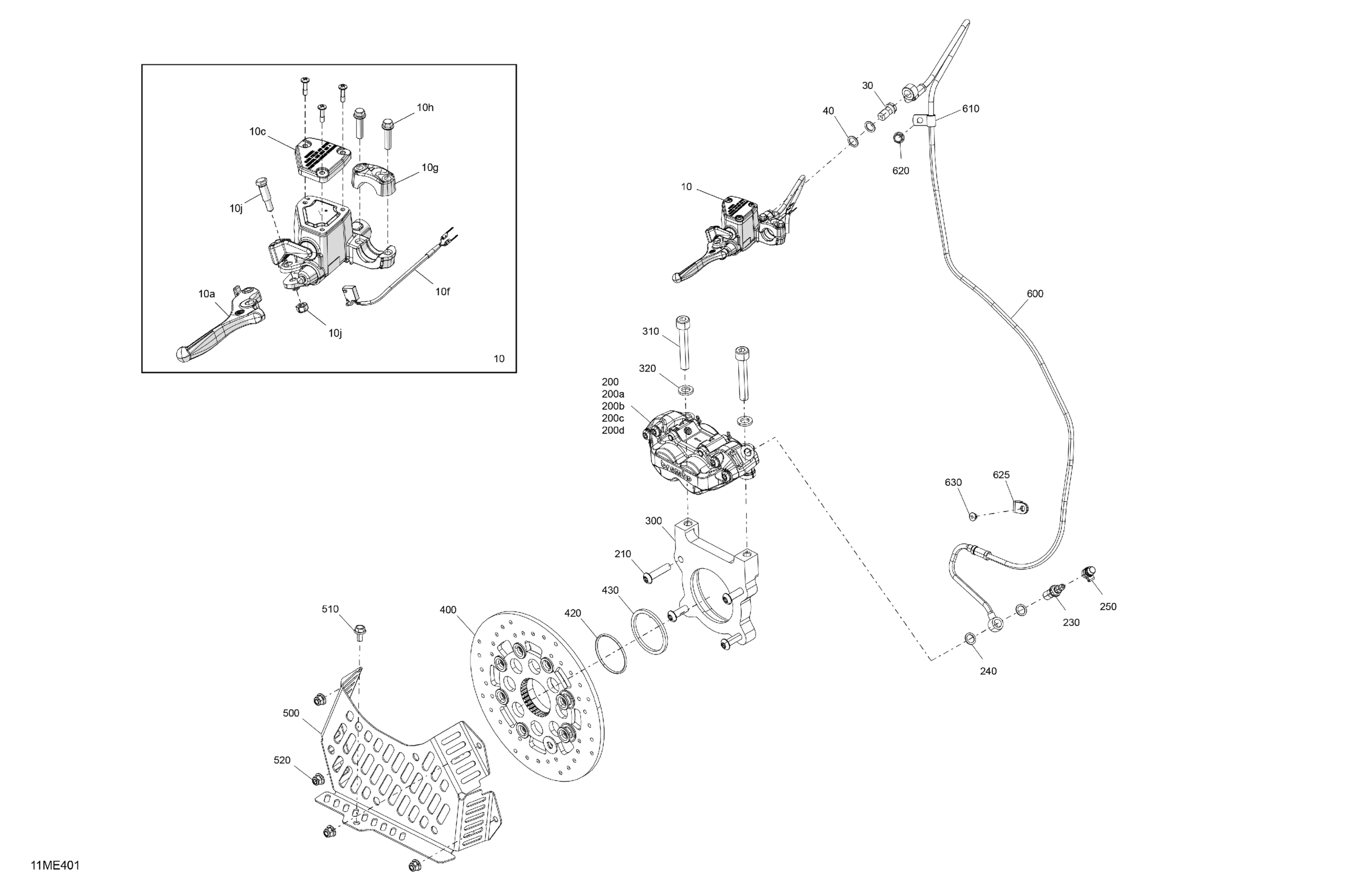

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Mechanic - Brakes Diagram

Description

Price

Master Brake Cylinder | Includes 10 to 10j

507032750

$318.43

10a

Parking Brake Lever

507032739

$98.43

10c

Reservoir Cover Kit

507032737

$109.97

10f

Micro Switch

507032738

$70.74

10g

Mounting Clamp

507032761

$23.82

10h

Hex Flange Screw M6 X 25

229000652

$2.06

10j

Pin Ass'y

415030000

$17.66

Banjo Bolt

507032551

$5.52

Washer

414920600

$1.52

200

Brake Caliper Ass'y | Includes 200 to 200d

507032613

$526.12

200a

Brake Pads Kit

507032615

$111.51

200b

Pin & Spring Kit

507032616

$41.51

200c

Spring Plate

507032617

$64.58

200d

Spring Clips

507032618

$32.28

210

Screw-torx Button Head M8 X 35

250000971

$4.12

230

Banjo Bolt/ Bleeder

705601201

$17.66

240

Washer

414920600

$1.52

250

Bleeder Bolt Cap

705601190

$4.28

300

Brake Caliper Support

507032647

$119.97

310

Screw Socket S,Grip M10 X 60

205506044

$7.42

320

Washer

503192496

$0.75

400

Disc Brake Ass'y

507032740

$249.20

420

O-Ring

293300134

$2.25

430

Spacer

507032612

$11.83

500

Disc Brake Guard

507032674

$87.66

510

Hex. Flange Screw M6 X 12

207661254

$2.06

520

Hex. Flange Elastic Nut M6

233261466

$1.66

600

Brake Hose

507032649

$59.97

610

Open Clamp

414108400

$3.11

620

Hex. Flange Screw M6 X 10

210261040

$1.25

625

Hose Clamp

293650257

$5.15

630

Blind Rivet 3/16

293150231

$0.31
