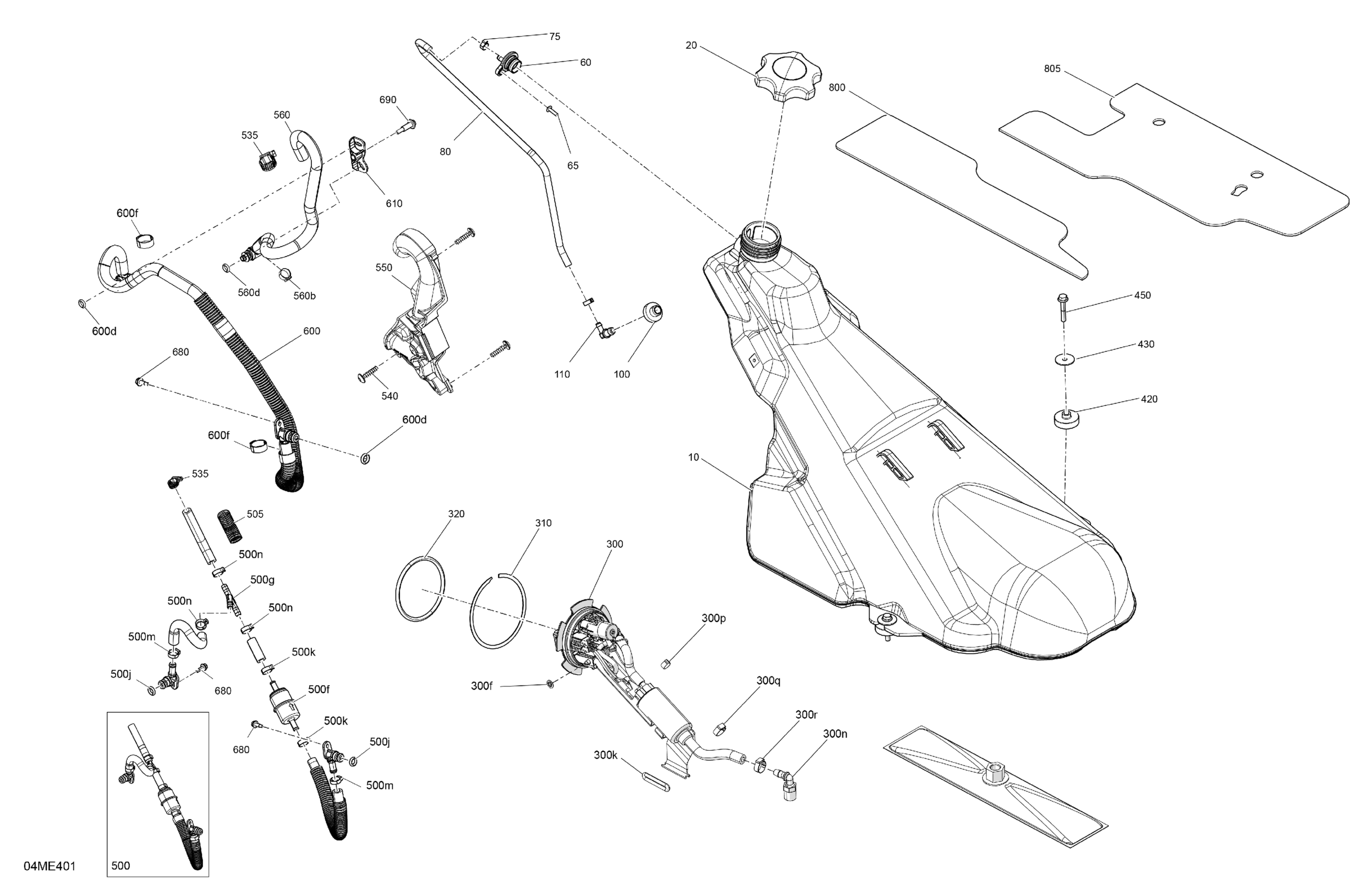

Ski-Doo MXZ - RACING - 600 RS - BMSA - Neo Yellow - 2025 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank KIt

415130437

$329.99

20

Fuel Tank Cap

513033752

$59.99

60

Fitting

513033864

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

75

Oeticker Clamp

293650262

$1.29

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

100

Grommet

709200948

$8.89

110

Male Connector

414580700

$4.12

300

Fuel Pump Ass'y | Includes 300 to 300r

513034240

$259.99

300f

Push Nut

732610072

$2.19

300k

O Ring

293300218

$2.32

300n

Elbow Pipe Fitting

293710218

$10.59

300p

Clamp Oetiker

293650207

$12.17

300q

Oetiker Clamp

293650125

$3.29

300r

Crimp Clamp

293650053

$3.09

310

Circlip

513034097

$14.23

320

O-Ring

513033862

$23.99

420

Bushing

513034147

$7.99

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

250001255

$2.22

500

Hose Ass'y | Includes 500 to 500n

513034201

$121.99

500f

Fuel Filter

513034047

$21.99

500g

Y Fitting

513034150

$6.25

500j

O-Ring

513033668

$10.99

500k

Crimp Clamp, 15.3-706R

293650047

$3.29

500m

Crimp Clamp

293650053

$3.09

500n

Oetiker Clamp

293650125

$3.29

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

535

Crimp Clamp, 15.3-706R

293650047

$3.29

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034204

$7.89

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$56.99

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600f

513034250

$78.99

600d

O-Ring

513033668

$10.99

600f

Crimp Clamp

293650053

$3.09

610

Molded Hose Support

513034194

$5.79

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex.Flange Screw M5 X 28 S.Grip

207552844

$5.39

800

Insulated Foam

513033866

$12.49

805

Insulated Foam

513033867

$16.99
