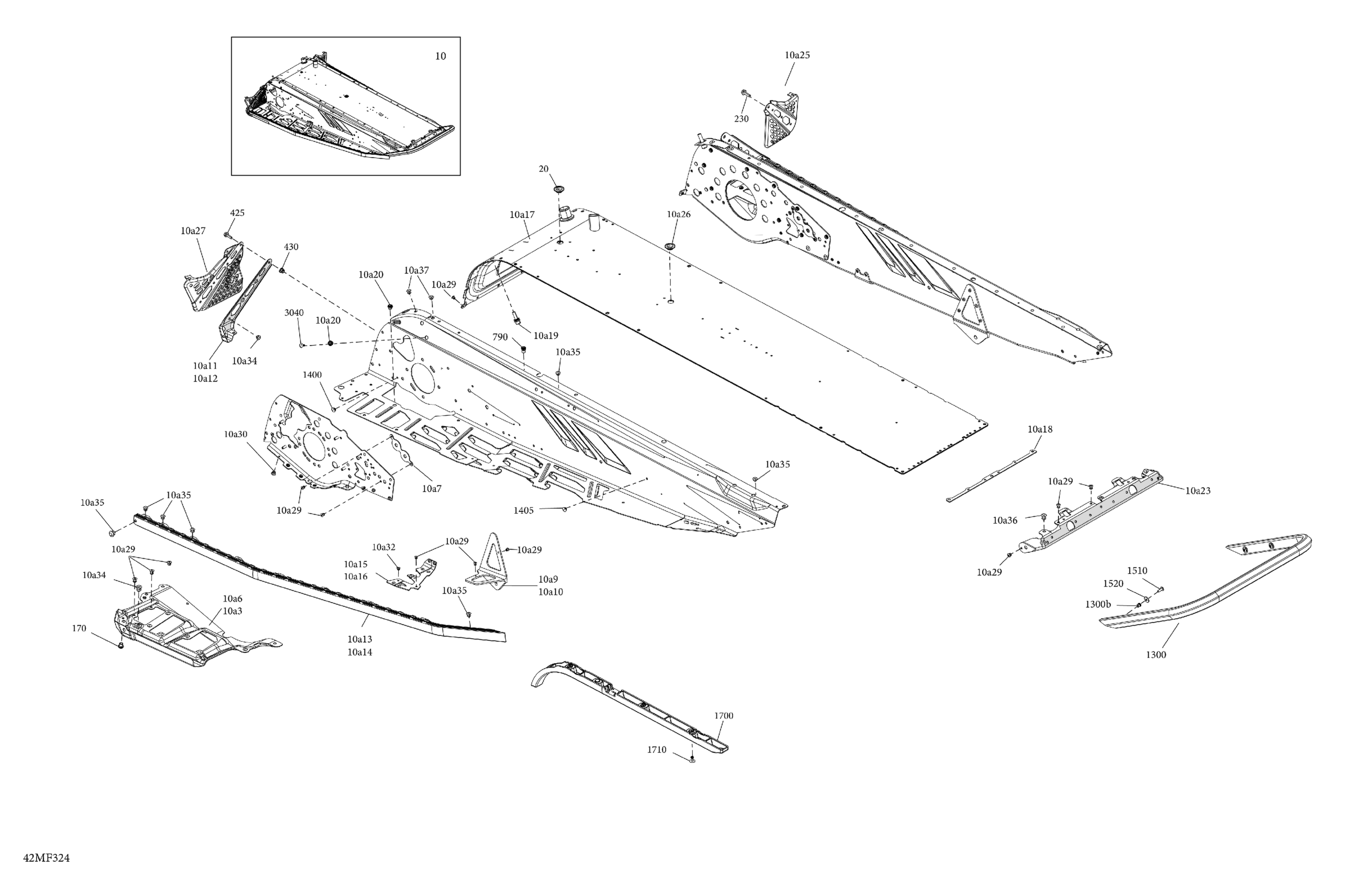

Ski-Doo MXZ - NEO + - 600 EFI - 55 - BPTA - Deep Black - 15X120X1.25RS Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 120

415130824

Unavailable

10a3

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10a6

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10a7

Front Suspension Arm Reinforcement

518327233

$16.12

10a9

LH Rear Suspension Anchorage

518334228

Unavailable

10a10

RH Rear Suspension Anchorage

518334227

Unavailable

10a11

Stirrup Reinforcement

518334507

$18.43

10a12

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10a13

RH Roller

518328451

$180.74

10a14

LH Roller

518328452

$180.74

10a15

LH Footrest Reinforcement

518332296

$18.43

10a16

RH Footrest Reinforcement

518332297

$18.43

10a17

Radiator Tunnel 120

518335150

$775.35

10a18

Spacer

518331532

$2.02

10a19

Protruding Stud M8 x 22

250300652

$4.28

10a20

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10a23

Rear Cap

518328990

$20.74

10a25

RH Footrest

518333006

$38.43

10a26

Black, Plug

293730052

$6.37

10a27

LH Footrest

518333858

$38.43

10a29

Rivet Avibulb 3/16

293150203

$0.29

10a30

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10a32

Henrob Rivet

293150245

$1.65

10a34

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10a35

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a36

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10a37

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper 120 | Includes 1300 to 1300b

518331613

$114.99

1300b

Insert

293450275

$9.89

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3040

Dart

293730079

$1.92

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11
