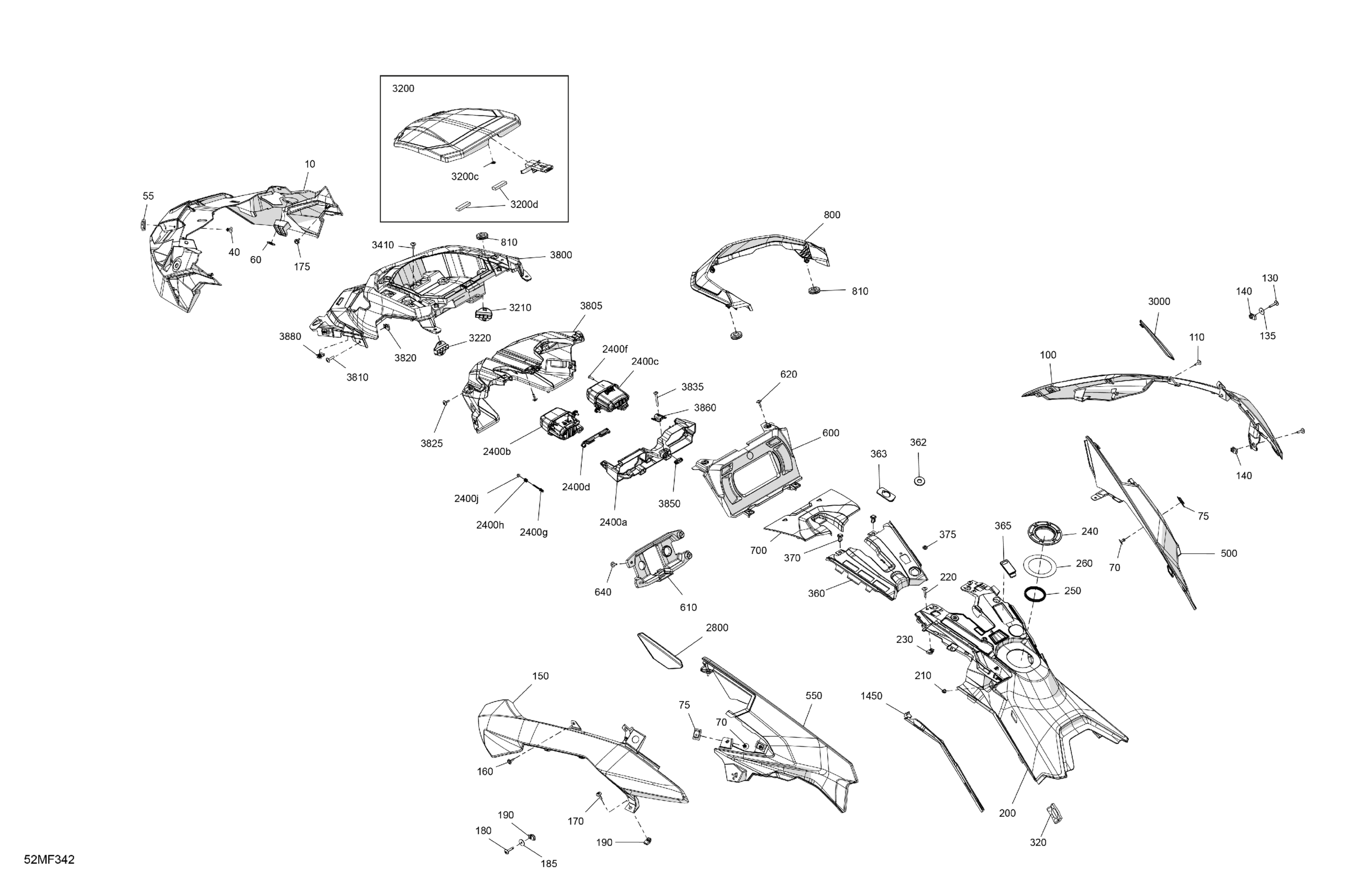

Ski-Doo MXZ - NEO - 600 EFI - 45 - BBTA - Deep Black - 14X120X1.0C Track, 2026 Body - Hood Diagram

#

Description
Price

10

Center Hood

517307755

$198.43

40

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

55

Rivet Plate

517305109

$4.66

60

Push Nut

508000853

$1.92

70

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

75

Rivet Plate

517305109

$4.66

100

RH Front Hood

517308642

$196.12

110

Screw M4 X 16

250000725

$2.87

130

Torx Screw M5 X 26

250000587

$3.61

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$3.48

150

LH Front Hood

517308643

$198.43

160

Screw M4 X 16

250000725

$2.87

170

Torx Screw M5 X 20

250000528

$1.74

175

Screw M4 X 16

250000725

$2.87

180

Torx Screw M5 X 26

250000587

$3.61

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$3.48

200

Rear Console

517308760

$167.66

210

Hex. Flange Elastic Nut M5

233251414

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Round Slotted Nut

517309507

$11.22

250

Gasket

517309450

$0.98

260

Joint

517309451

$2.37

320

Self Adhesive Weather Strip

517308930

$2.28

360

Front Console

517309795

$29.97

362

Brake Switch Adapter

517307261

$8.60

363

Ignition Switch Adapter

517307262

$8.60

365

Cap

517308261

$1.28

370

Tuflok Plastic Rivet

293150230

$1.21

375

Push Nut

732610072

$1.72

500

RH Hood

517308227

$192.28

550

LH Hood

517308228

$192.28

600

Gauge Support

517307734

$36.12

610

Gauge Support

515179104

$36.89

620

Screw M4 X 16

250000889

$2.46

640

Screw M4 X 16

250000725

$2.87

700

Access Cover

517308427

$8.45

800

Windshield_210 Mm

517308712

$23.05

810

Grommet

517303756

$3.15

1450

Molded Gasket

517308987

$5.17

2400a

Headlight Support

517309051

$14.09

2400b

Low Beam Light

710008089

$120.74

2400c

HIgh Beam Light

710006910

$156.89

2400d

Support Pivot | Not Shown

517309049

$2.66

2400f

Torx-Truss Pt K40 X 16

250000759

$1.74

2400g

Threaded Rod | Not Shown

517309133

$6.20

2400h

Compression Spring | Not Shown

517309058

$7.23

2400j

Specialized Nut | Not Shown

517309134

$0.98

2800

RH Rear Cap

517309208

$11.31

3000

LH Rear Cap

517309209

$11.31

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$29.20

3200c

Push Nut

732610072

$1.72

3200d

Joint Seal

517308246

$2.28

3210

Box Cap

517308260

$11.31

3220

Box Cap

517308260

$11.31

3410

Screw M4 X 16

250000889

$2.46

3800

Upper Fairing

517308231

$59.97

3805

Headlight Trim

517308714

$40.74

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3825

Screw M4 X 16

250000889

$2.46

3835

Torx Screw M5 X 40

250001286

$17.66

3850

Molded Housing Nut

517308229

$2.26

3860

Clip

517309293

$8.26

3880

Panel Nut M5 X 0.8

250000958

$3.48
