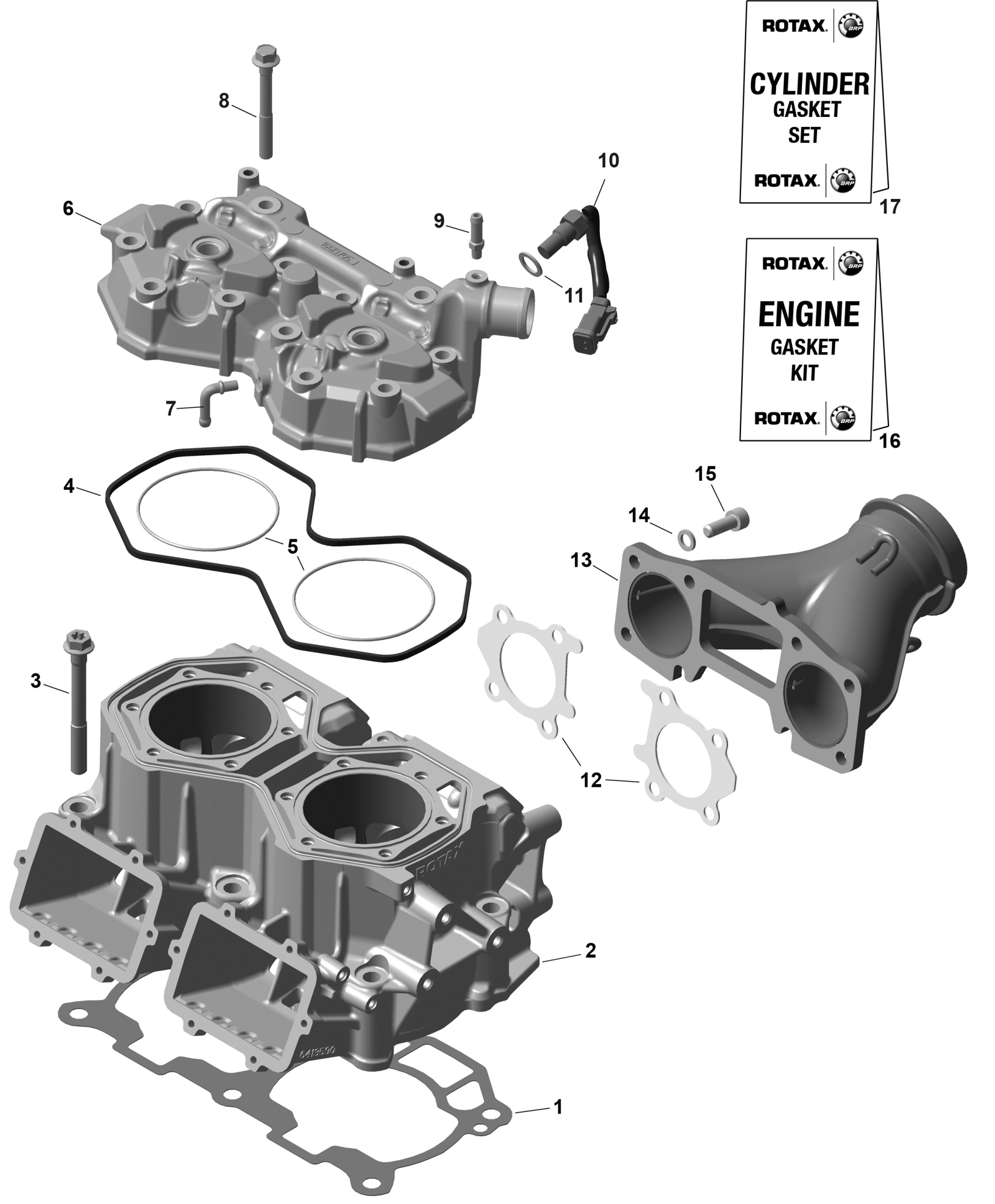

Ski-Doo MXZ - NEO - 600 EFI - 45 - BBTA - Deep Black - 14X120X1.0C Track, 2026 ROTAX - Cylinder Head Diagram

Gasket 0.9 | Included in gasket kit

420831074

$20.12

Gasket 0.6 | Included in gasket kit

420831071

$17.88

Gasket 0.7 | Included in gasket kit

420831072

$18.63

Gasket 0.8 | Included in gasket kit

420831073

$22.36

Gasket 0.5 | Included in gasket kit

420831070

$16.39

Cylinderblock Plasma

420923748

$775.34

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

Square Ring | Included in gasket kit

420430044

$5.52

O-Ring Cylinder | Included in gasket kit

420831825

$5.36

Head Cylinder Cover

420613706

$271.61

Fittin 90D

420924802

$3.13

Collar Hex Screw M8 X 68.5

420640959

$5.91

Hose Nipple

420924724

$14.10

Temperature Sensor This part replaces 420664508.

420664509

$138.03

Aluminum Sealing Ring

420250016

$5.06

Gasket | Included in gasket kit

420430487

$7.99

Exhaust Manifold Ass'y

420873035

$258.18

Washer

420427290

$2.00

Allen Screw M8X22

420841053

Unavailable

Engine Gasket Set

420894370

$236.54

Cylinder Gasket Set

420894371

$151.46
