Suspension - Front

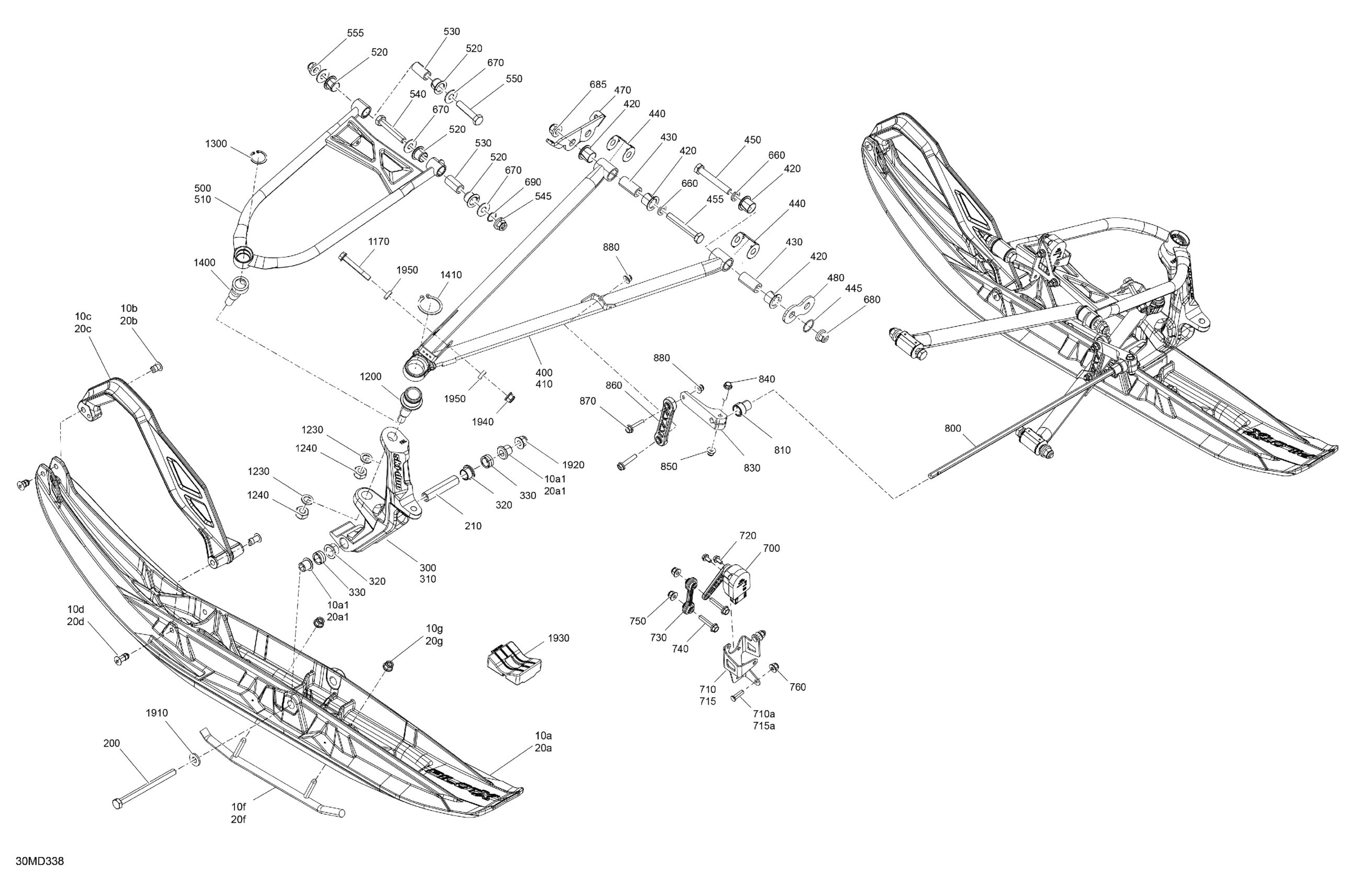

Ski-Doo MXZ 850 E-TEC - X-RS - MARB - Hyper Silver - 137X15X1.25RS Track, 2024 Suspension - Front Diagram
#
10a
Deep Black, LH Ski | Includes 10a to 10a1
505074926
Unavailable
10a1
Ski Bushing
505071781
Unavailable
10b
Retainer 17mm long
505071812
Unavailable
10c
Deep Black, Ski Handle
505075364
Unavailable
10d
Retainer 23mm Long
505072133
Unavailable
10f
Round Carbide Runner Kit
860202180
Unavailable
10g
Hex. Flange Elastic Nut M8
233281414
Unavailable
20a
Deep Black, RH Ski | Includes 20a to 20a1
505074927
Unavailable
20a1
Ski Bushing
505071781
Unavailable
20b
Retainer 17mm long
505071812
Unavailable
20c
Deep Black, Ski Handle
505075364
Unavailable
20d
Retainer 23mm Long
505072133
Unavailable
20f
Round Carbide Runner Kit
860202180
Unavailable
20g
Hex. Flange Elastic Nut M8
233281414
Unavailable
200
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
210
Ski Axle
505073691
Unavailable
300
Spartan Red, LH Ski Leg +10
505075429
Unavailable
310
Spartan Red, RH Ski Leg +10
505075430
Unavailable
320
Leg Bushing
505072690
Unavailable
330
Spacer
505074949
Unavailable
400
LH Lower Suspension Arm
505074758
Unavailable
410
RH Lower Suspension Arm
505074759
Unavailable
420
Bushing
505072208
Unavailable
430
Sleeve
505072209
Unavailable
440
Wear Plate
505072634
Unavailable
445
O-Ring
505072448
Unavailable
450
Screw Hex. M10 X 70
250001024
Unavailable
455
Screw Hex. M10 X 70
250001024
Unavailable
470
Wear Plate
505073723
Unavailable
480
Plate
505073844
Unavailable
500
LH Upper Suspension Arm
505074760
Unavailable
510
RH Upper Suspension Arm
505074761
Unavailable
520
Bushing
505072250
Unavailable
530
Sleeve
505072143
Unavailable
540
Screw Hex. M10 X 60
250001023
Unavailable
545
Hex. Flange Elastic Nut M10
250100165
Unavailable
550
Screw Hex. M10 X 60
250001023
Unavailable
555
Hex. Flange Elastic Nut M10
250100165
Unavailable
660
Washer
503189564
Unavailable
670
Washer
505072392
Unavailable
680
Hex. Flange Elastic Nut M10
250100165
Unavailable
685
Hex. Flange Elastic Nut M10
250100165
Unavailable
690
O-Ring
505072448
Unavailable
700
Suspension Sensor
710004740
Unavailable
710
LH Front Sensor Support | Includes 710 to 710a
505074753
Unavailable
710a
Clinch Stud M6 X 20
250300027
Unavailable
715
RH Front Sensor Support | Includes 715 to 715a
505074773
Unavailable
715a
Clinch Stud M6 X 20
250300027
Unavailable
720
Hex. Flange Screw M5 X 10
207551044
Unavailable
730
Ball Joint
505074754
Unavailable
740
Hex. Flange Screw M6 X 1.0 X 30
207663056
Unavailable
750
Hex. Flange Elastic Nut M6
233261466
Unavailable
760
Hex. Flange Elastic Nut M6
233261466
Unavailable
800
Stabiliser
505074719
Unavailable
810
Bushing
505072064
Unavailable
830
Stabilisator Lever
505073731
Unavailable
840
Hex. Flange Screw M6 X 1.0 X 30
207663056
Unavailable
850
Hex. Flange Elastic Nut M6
233261466
Unavailable
860
Sway Bar Double Joint Link
505072204
Unavailable
870
Hex. Flange Screw M6 X 1.0 X 30
207663056
Unavailable
880
Hex. Flange Elastic Nut M6
233261466
Unavailable
1170
Hex. Flange Screw M8 X 58
250000824
Unavailable
1200
Ball Joint
505074133
Unavailable
1230
Washer
503192491
Unavailable
1240
Hex Elastic Nut M12 X 1.25
232521464
Unavailable
1300
Circlip
293370070
Unavailable
1400
Upper Ball Joint
505072913
Unavailable
1410
Snap Ring
293370098
Unavailable
1910
Washer
503192496
Unavailable
1920
Hex. Flange Elastic M10 x 1.5
233201464
Unavailable
1930
Ski Stopper
505072594
Unavailable
1940
Elastic Flange Nut M8
233281466
Unavailable
1950
Spacer
505073892
Unavailable
