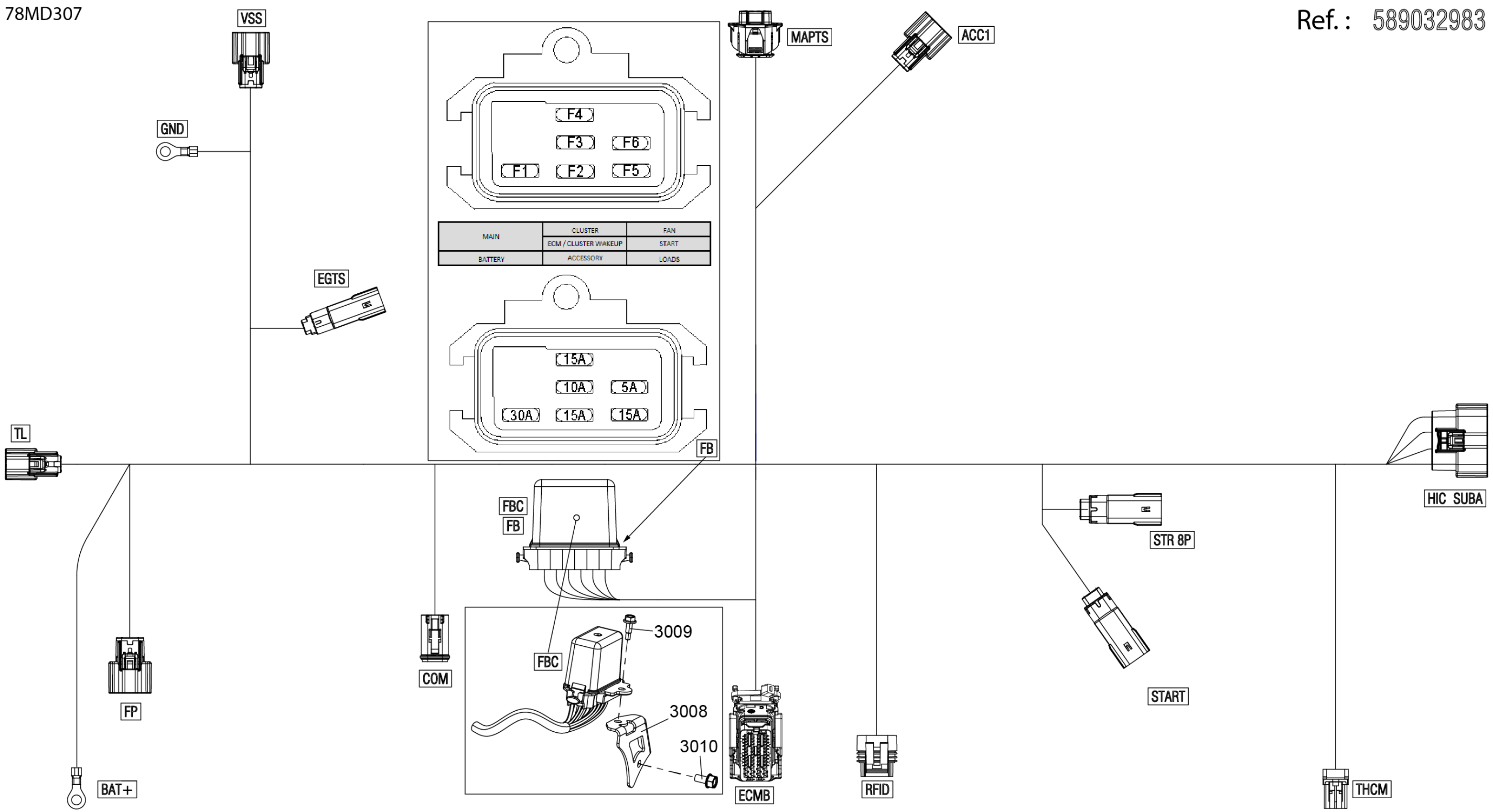

Ski-Doo MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRC - Neo Yellow - 137X15X1.25RSII2P Track, 2024 Electric - Main Harness - 515179406 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179406

$292.28

ACC1

Housing

515178954

$35.35

ACC1

Female Terminal

515178018

$0.78

BAT+

Shrink Tubing, 6 mm

515177246

$1.02

BAT+

Open Barrel Terminal

278001392

$4.12

COM

Female Housing 6 Circuits

710002706

$16.22

COM

Lock

710002705

$3.61

COM

Female Terminal

710005438

$4.00

COM

Female Terminal

710005439

$4.28

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

48 Circuits Female Housing

515178168

$44.58

ECMB

Plug

710001592

$2.12

ECMB

Female Terminal

710001727

$2.55

ECMB

Female Terminal

710001589

$1.79

ECMB

Female Terminal

710001590

$1.69

EGTS

Clip Connector

515178223

$1.63

EGTS

2 Circuits Male Housing

515178020

$23.82

EGTS

Male Terminal

515178013

$2.55

F1

Little Fuse, 30 Amperes

710000747

$6.77

F2

Little Fuse, 15 Ampere

710000745

$6.77

F3

Little Fuse, 10 Amperes

710000744

$7.24

F4

Little Fuse, 20 Amperes

710000746

$6.77

F5

Little Fuse, 15 Ampere

710000745

$6.77

F6

Little Fuse, 5 Amperes

710000742

$7.24

FB

Fuse Box Ass'y

278002285

$23.37

FB

Seal Plug

278002880

$5.43

FB

Wire Seal

278000218

$3.48

FB

Wire Seal

278001065

$6.03

FB

Wire Seal

710000048

$5.10

FB

Female Terminal

515177177

$5.11

FB

Female Terminal

710000918

$5.10

FB

Female Terminal

278002578

$0.86

FBC

Fuse Box Cover

278002286

$22.72

FBC

Fuses Decal

516012025

Unavailable

FP

Female Housing

515178474

$33.05

FP

Female Terminal

515178018

$0.78

GND

Shrink Tubing, 6 mm

515177246

$1.02

GND

Open Barrel Terminal

278001392

$4.12

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$15.23

HIC SUBA

Sealing Cap

278002860

$1.42

HIC SUBA

Female Terminal

515178018

$0.78

HIC SUBA

Female Terminal

515178014

$1.92

MAPTS

Male Connector

515176410

$51.97

MAPTS

Seal

415128501

$1.51

MAPTS

Female Terminal

710001137

$3.73

RFID

5 Circuits Male Housing Tab

278002330

$8.54

RFID

Female Terminal

710001119

$4.32

START

Clip Connector

515178223

$1.63

START

Housing

515178023

$12.98

START

Male Terminal

515178013

$2.55

STR8P

Clip Connector

515178223

$1.63

STR8P

Molex Male Connector 8 Cavities

515178907

$10.94

STR8P

Male Terminal

515178013

$2.55

THCM

Female Terminal Housing, 4 Circuit

515177048

$10.14

THCM

Lock, 4 Circuits

515177051

$8.58

THCM

Seal

515177050

$6.43

THCM

Female Terminal

515177049

$5.46

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.58

TL

Female Terminal

515178018

$0.78

TL

Female Terminal

515178014

$1.92

VSS

Housing

515178954

$35.35

VSS

Female Terminal

515178018

$0.78

3008

Fuse Box Support

515179281

$31.51

3009

Hex. Flange Screw M5 X 16

250000911

$0.70

3010

Hex. Flange Screw M6 X 12

210261250

$1.56
