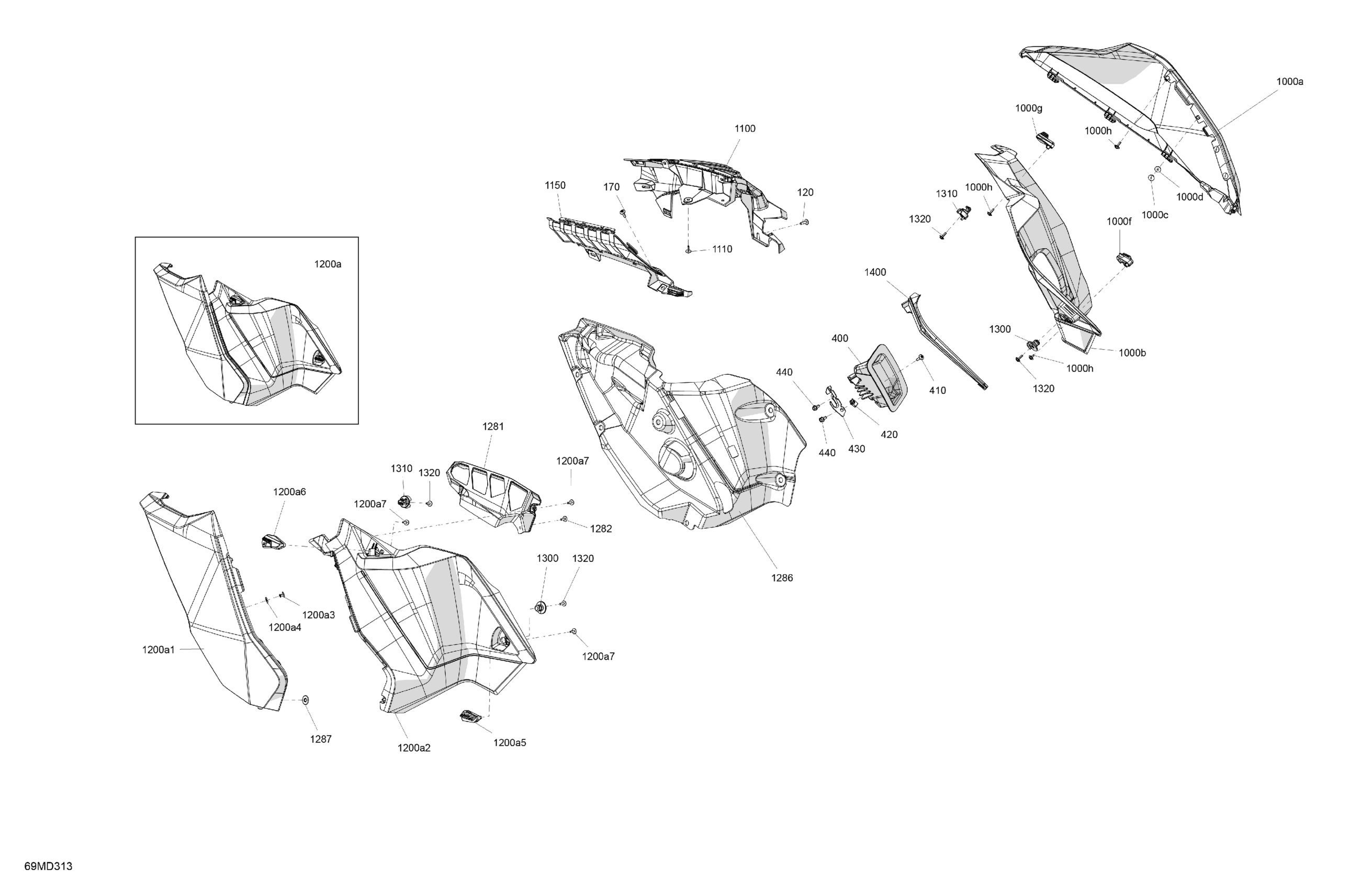

Ski-Doo North America - MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRC - Neo Yellow - 137X15X1.25RSII2P Track, 2024 07- Body - Side Panels Diagram

Description

Price

120

Torx Screw M5 X 20

250000528

$2.11

170

Torx Screw M5 X 20

250000528

$2.11

400

RH Console

517306759

$35.99

410

Torx Truss M5 X 20

250000586

$4.44

420

Panel Nut M5 X 0.8

250000958

$4.23

430

Rope Guide

517306315

$5.72

440

Hex. Flange Screw M6 X 12

210261250

$1.90

1000a

RH Front Panel

517309009

$214.99

1000b

Deep Black, RH Rear Panel

517307938

$189.99

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000d

Washer

517124300

$0.19

1000f

RH Rear Latch

517305773

$18.49

1000g

RH Front Latch

517305979

$16.79

1000h

Screw M4 X 16

250000725

$3.49

1100

RH Hood Grille

517308074

$29.99

1110

Screw M4 X 16

250000725

$3.49

1150

LH Hood Trim

517308650

$31.99

1200a

LH Panel Ass'y | Includes 1200 to 1200h

517309010

$199.99

1200a1

LH Front Panel

517309011

$214.99

1200a2

Black, LH Rear Panel

517307928

$184.99

1200a3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200a4

Washer

517124300

$0.19

1200a5

LH Rear Latch

517305774

$18.49

1200a6

LH Front Latch

517305980

$18.49

1200a7

Screw M4 X 16

250000725

$3.49

1281

LH Panel Grille

517307985

$17.49

1282

Screw M4 X 16

250000725

$3.49

1286

Acoustic Panel

517309308

$45.99

1287

Push Nut

508000853

$2.09

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

Molded Gasket

517308554

$5.49
