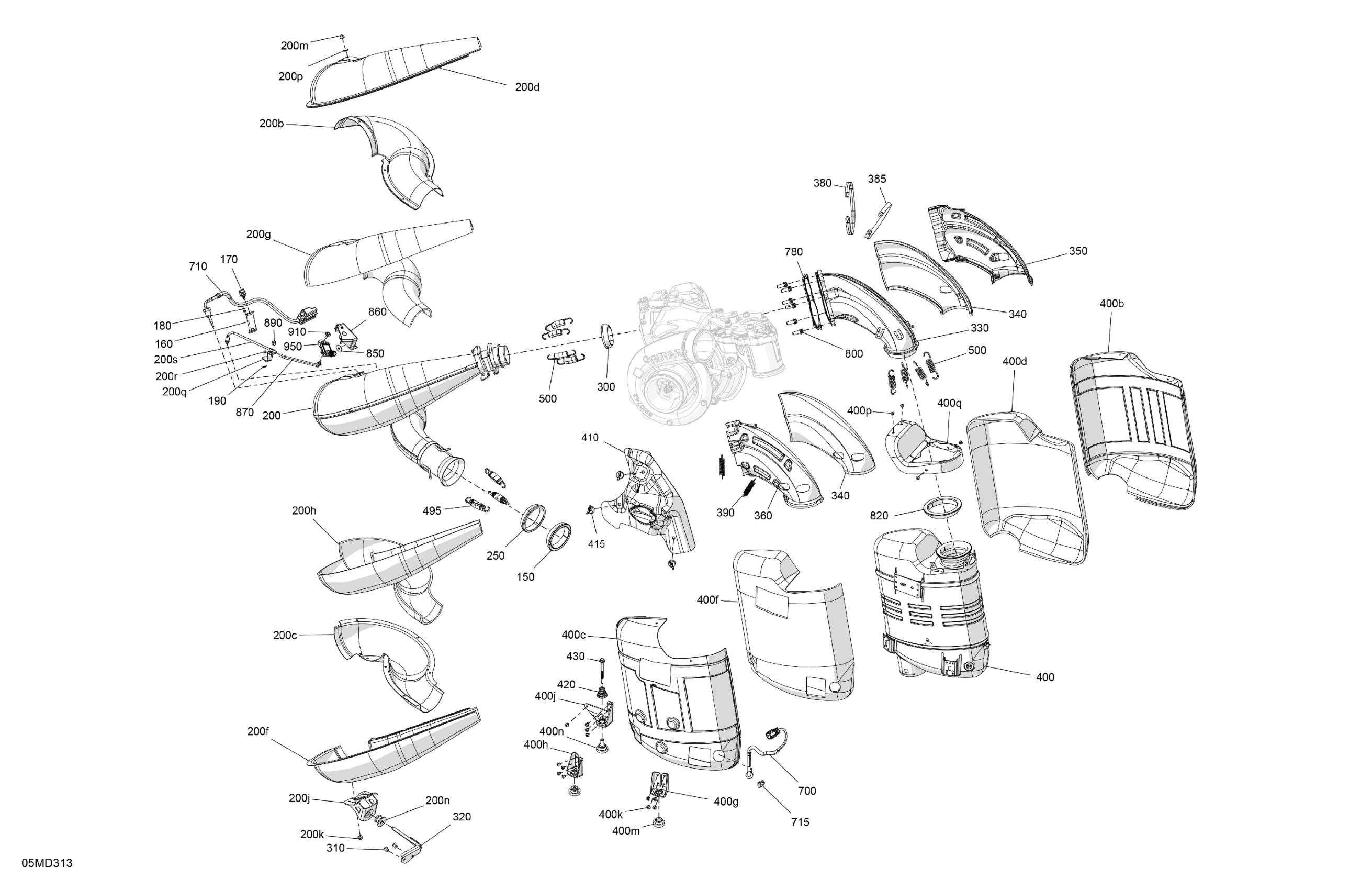

Ski-Doo North America - MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRC - Neo Yellow - 137X15X1.25RSII2P Track, 2024 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

160

Support

514055512

$3.17

170

Tie Rap Mount (screwable)

515176795

$5.39

180

Avex Rivet

390909100

$0.30

190

Washer 3/16

514055537

$1.01

200

Tuned Pipe Ass'y | Includes 200 to 200s

514056406

$773.49

200b

Shell

514056283

$39.99

200c

Shell

514056282

$36.99

200d

Rear Upper Aluminum Shell

514055617

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Glass Wool

514056351

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Rubber

514055632

$2.21

200p

Washer 3/16

514055537

$1.01

200q

Support

514055846

$9.53

200r

Avex Rivet

390909100

$0.30

200s

Tube

514055725

$17.03

250

Seal

514055965

$19.49

300

Exhaust Gasket

514054174

$28.49

310

Ornit Rivet 6,5 X 14.5

293150266

$2.40

320

Support

514055214

$11.54

330

Manifold

514056157

$139.99

340

Glass Wool

514056380

$4.59

350

Front Shield

514055747

$38.99

360

Rear Sheild

514056161

$38.99

380

Retaining Strap

514056144

$9.27

385

Retaining Strap

514056145

$9.27

390

Spring

514053643

$6.35

400

Muffler Ass'y | Includes 400 to 400q

514056355

$858.49

400b

RH Deflector

514056114

$63.99

400c

LH Deflector

514056316

$62.99

400d

Glass Wool

514056356

$19.99

400f

Glass Wool

514056357

$8.39

400g

Exhaust Support

514056193

$6.40

400h

Exhaust Support

514056082

$6.40

400j

Exhaust Support

514056083

$6.40

400k

Pop Rivet 3/16 X ,425

293150293

$0.35

400m

Stopper

514055203

$20.49

400n

Stopper Ass'y

514056138

$13.22

400p

Cap

514056151

$60.99

400q

Pop Rivet 3/16"

390402400

$0.35

410

Acoustic Panel Ass'y

514056379

$45.99

415

Stopper

502008610

$2.09

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

495

Spring

514056058

$6.35

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514056266

$137.99

710

Module

515178170

$174.99

715

Clip

710010204

$1.67

780

Exhaust Gasket

514056159

$14.83

800

12 Point Flange Screw M8 X 20

250001193

$13.99

820

Exhaust Gasket

514055731

$23.99

850

Flat Washer

224060201

$1.26

860

Sensor Support

514055723

$10.99

870

Hose

514056300

$1.05

890

Crimp Clamp

293650249

$3.38

910

Screw M4 X 16

250000725

$3.49

950

Pressure Sensor

514055908

$199.99
