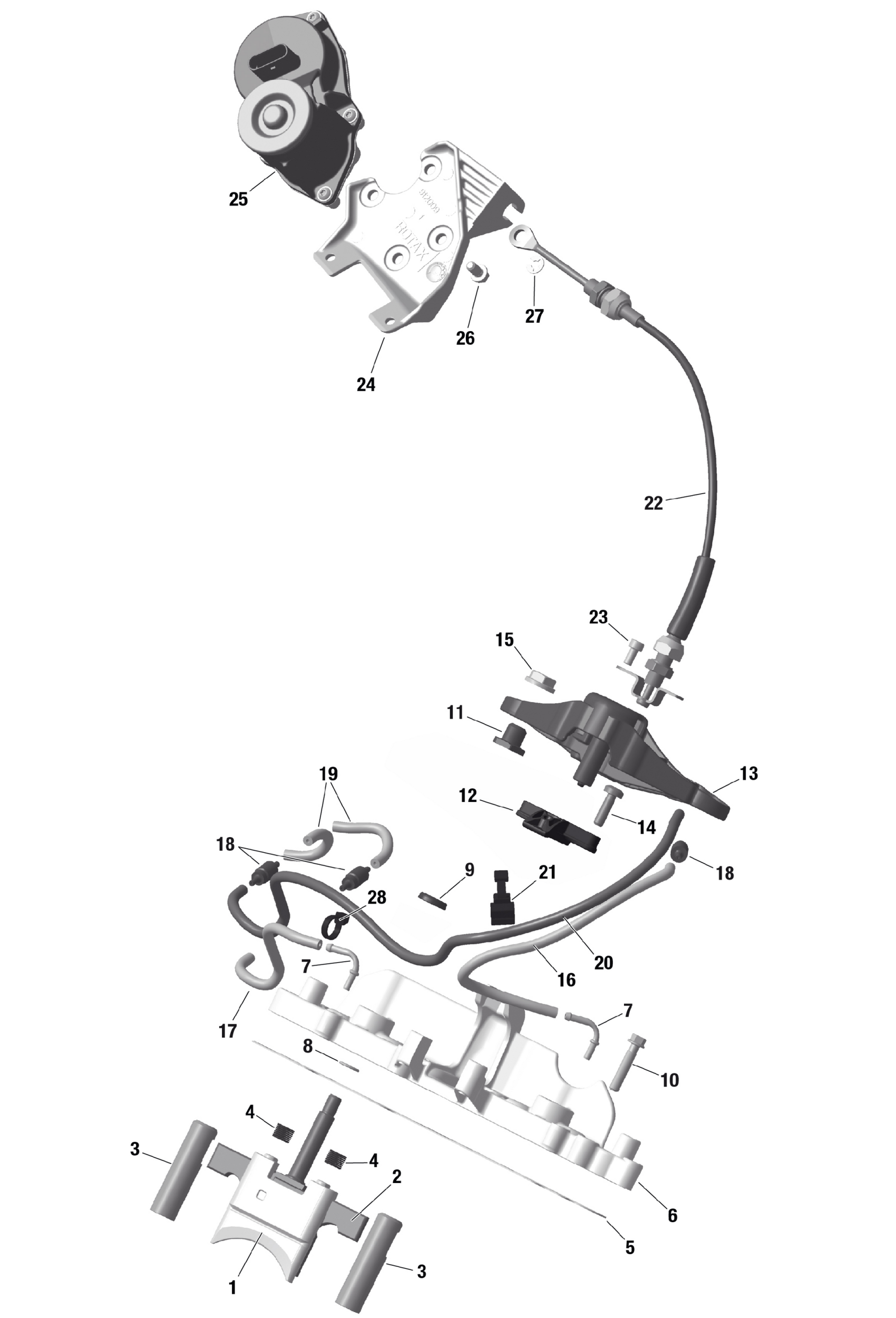

Ski-Doo North America - MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRC - Neo Yellow - 137X15X1.25RSII2P Track, 2024 01- ROTAX - RAVE Valve Diagram

Exhaust Valve Upper

420954051

$21.99

Lower Exhaust Valve

420954054

$35.99

Exhaust Valve

420954041

$12.49

Spring

420238558

$5.39

Valve Rod Housing Gasket

420430037

$8.89

Valve Housing | Includes no. 6-7

420954063

$94.49

Fitting 90D

420924053

$10.33

O-Ring

420950950

$1.01

Oil Seal | Included in gasket kit

420950732

$9.27

Torx Flange Screw M6 X 30

420440647

$2.00

Collar Nut M8

420942331

$4.44

Harness Support

420260172

$11.60

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$114.99

Valve Bar

420855290

Unavailable

Torx Flange Screw M6 X 20

420441386

$2.11

Nut M12 X 1.5

420942190

$14.22

Oil Line 673MM

420201924

$9.19

Check Valve Ass’y

420956515

$8.59

Oil Line 673MM

420201924

$9.19

Tie-Rap With Mount

420951655

$1.79

Bowden Cable Ass'y

420997033

$121.49

Allen Screw M5 X 10

420240692

$1.69

Mounting Bracket

420912007

$20.99

Servo Motor Ass'y

420889432

$329.99

Hex. Flange Screw M6 X 12

420440149

$2.11

Retaining Ring

420945710

$0.50

Not Available As Spare Parts

XXX

Unavailable
