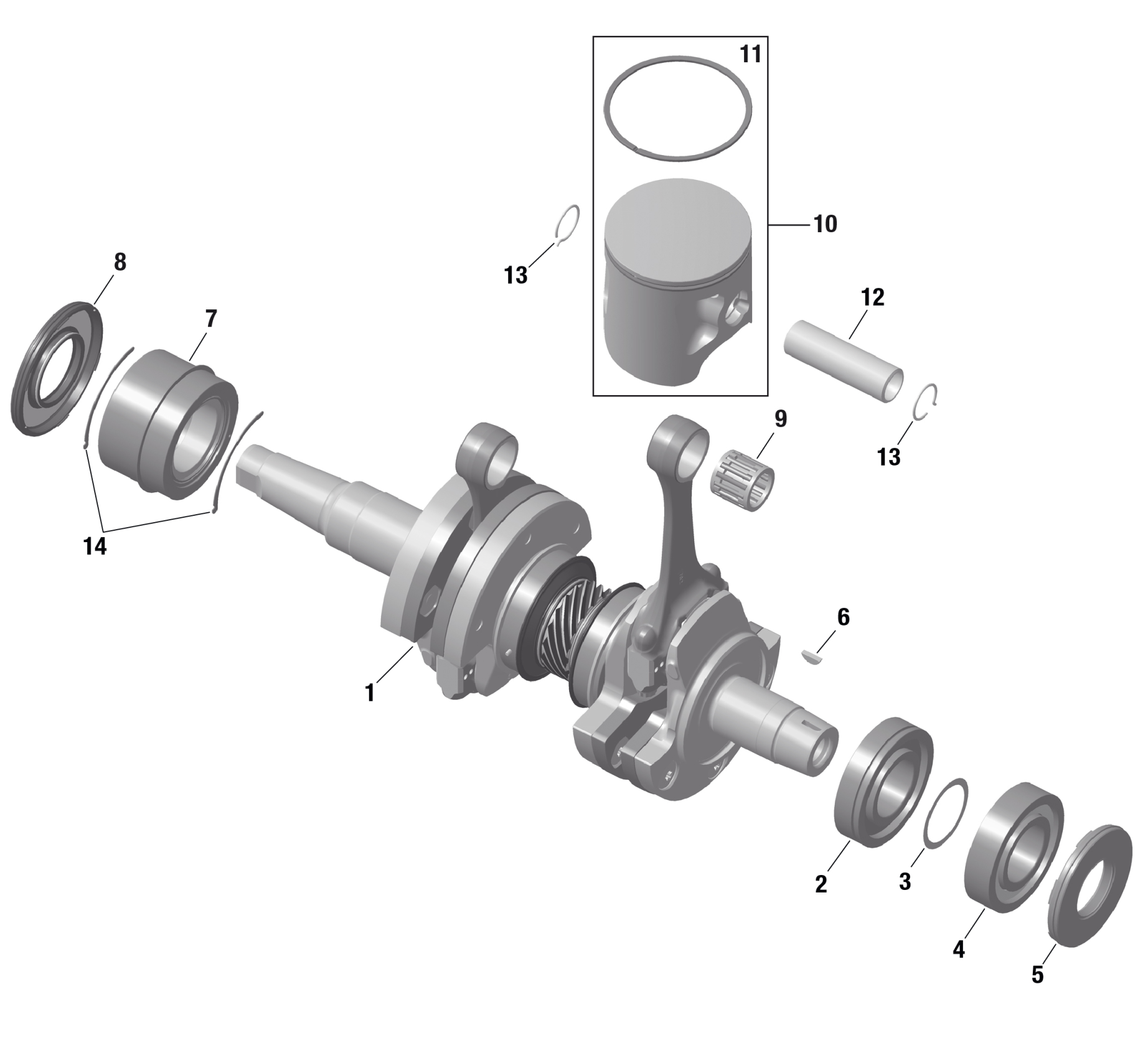

Ski-Doo MXZ 850 E-TEC Turbo R - X-RS with Competition package - UCRC - Neo Yellow - 137X15X1.25RSII2P Track, 2024 ROTAX - Crankshaft and Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y This part replaces 420893787.

420893982

$2.00

2

Bearing

420832178

$121.49

3

Shim 35.4/43/0.3

420927401

$3.17

4

Ball Bearing 6207 | With drive pin

420832575

$52.99

5

Oil Seal

420831955

$27.49

6

Woodruff Key

420246015

$3.17

7

Roller Bearing

420832130

$104.99

8

Oil Seal | Included in gasket kit

420931284

$23.49

9

Needle Bearing

420832030

$30.49

10

Piston Ass'y | Includes no. 10-11

420893797

$265.99

11

Semi-Trapez Ring

420815416

$75.49

12

Piston Pin

420916480

$35.99

13

Piston Circlip | Included in gasket kit

420845467

$4.25

14

Shim 0.5

420953130

Unavailable

14

Shim 0.8

420953131

Unavailable

14

Shim 1.0

420953132

Unavailable

14

Shim 1.2

420953133

Unavailable

14

Shim 1,4

420953134

Unavailable

15

Shim Kit

420481410

$23.49
