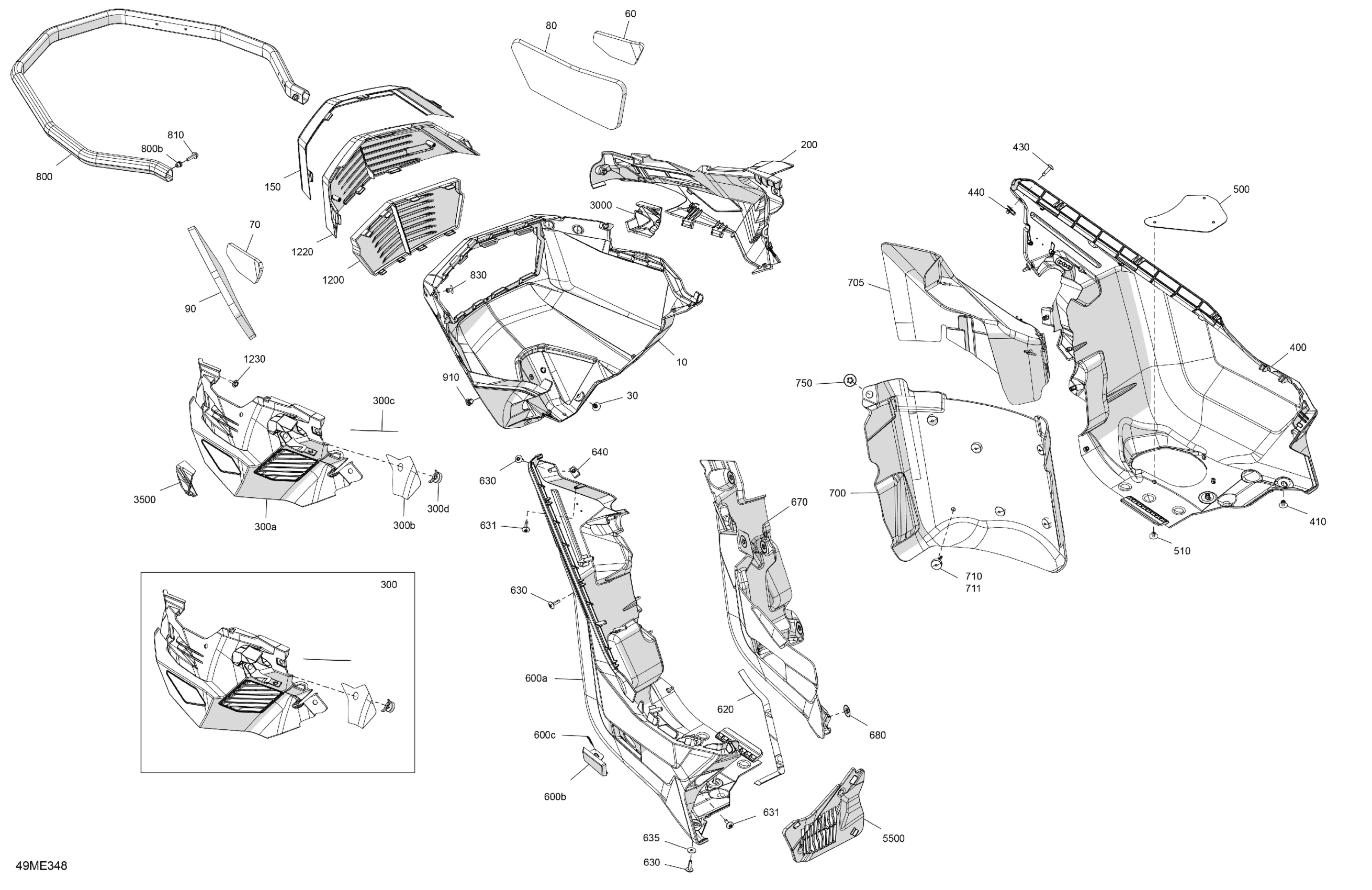

Ski-Doo North America - MXZ - 850 E-TEC - Adrenaline with Blizzard Package - UDSA - Monument Gray - 137X15X1.25IR Track - 2025 07- Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502008525

$194.99

30

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

60

RH Front Central Bottom Pan Foam

502008308

$9.59

70

LH Front Central Bottom Pan Foam

502008309

$13.99

80

Bonded Foam

502008355

$19.49

90

Bonded Foam

502008356

$7.89

150

Neo Yellow, Central Trim

502008387

$12.99

200

Deep Black, RH Bottom Pan Cap

502008264

$61.99

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008529

$124.99

300a

Deep Black, LH Bottom Pan Cap

502008265

$61.99

300b

LH Front Heat Shield

502008487

$4.79

300c

LH Front Heat Shield

502008575

$4.39

300d

Stopper

502008752

$2.09

400

Deep Black, RH Bottom Pan

502008755

$93.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

500

Plate

502008690

$8.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

600a

Deep Black, LH Bottom Pan

502008222

$93.99

600b

Bottom Pan Door

502008267

$48.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

670

LH Lower Acoustic Panel

502008240

$45.99

680

Push Nut

508000853

$2.09

700

Acoustic Panel

502008754

$45.99

705

Acoustic Panel

502008254

$45.99

710

Stopper

502008752

$2.09

711

Stopper

502008752

$2.09

750

Push Nut

508000853

$2.09

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$116.49

800b

Insert M5 X 0.8

293450268

$2.09

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

910

Panel Fastener

518321954

$7.69

1200

Lower Prefilter Grille

502008245

$27.99

1220

Upper Grille Prefilter

502008736

$27.99

1230

Screw M4 X 16

250000725

$3.49

3000

Deep Black, LH Front Cap

502008363

$1.39

3500

Deep Black, RH Front Cap

502008364

$1.39

5500

LH Rear Bottom Pan Grille

502008707

$14.99
