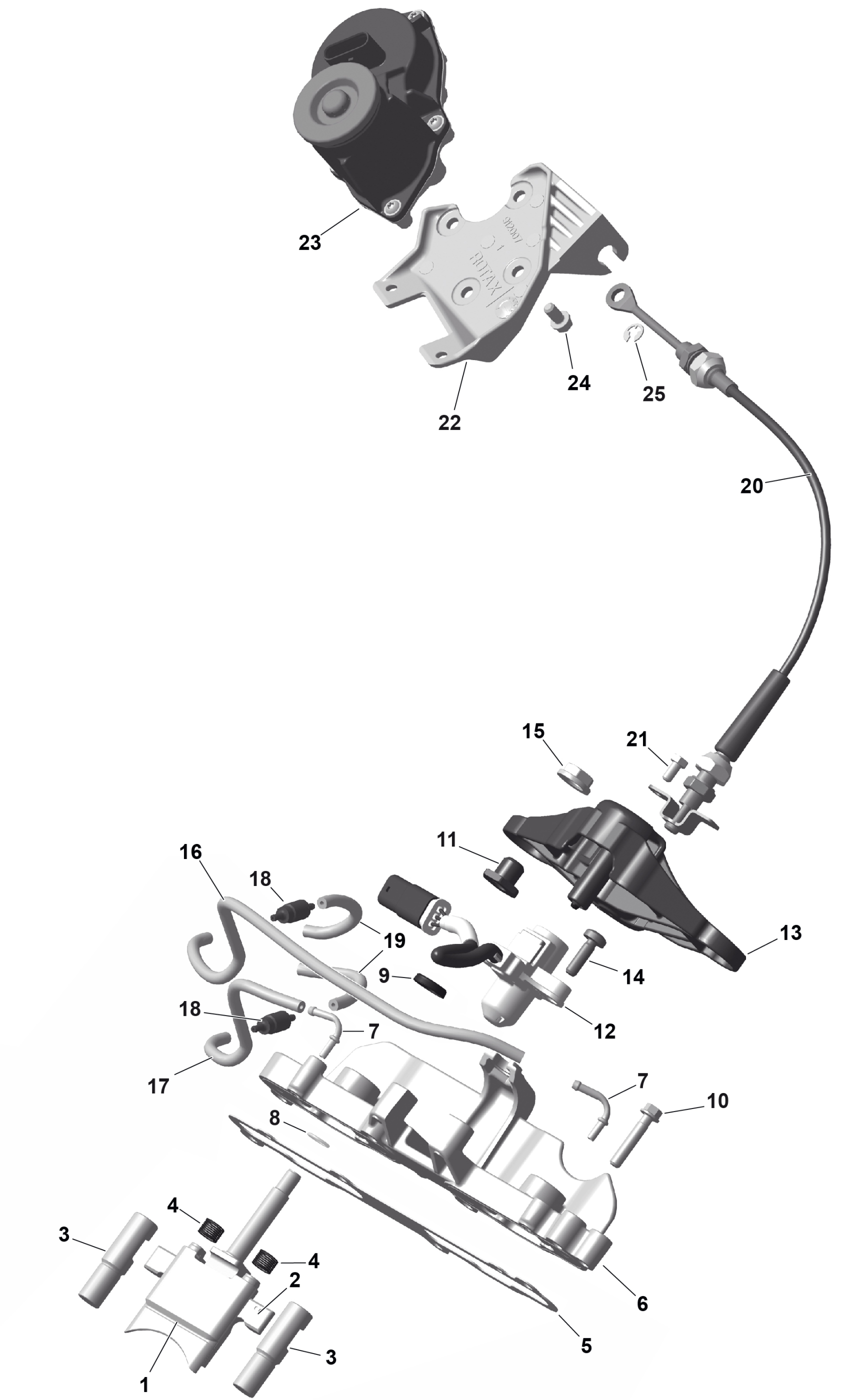

Ski-Doo MXZ - 600R E -TEC - X-RS with Competition package - UCSA - Neo Yellow - 137X15X1.25RSII2P Track - 2025 ROTAX - RAVE Valve Diagram

#

Description
Price

1

Exhaust Valve Upper

420954080

$66.12

2

Exhaust Valve Lower

420954085

$92.28

3

Exhaust Valve

420954070

$18.43

4

Spring

420238558

$5.22

5

Gasket Valve Rod Housing | Included in gasket kit

420631001

$11.52

6

Valve Rod Housing Ass'y | Includes no. 6-7

420954067

$92.28

7

Fitting 90D

420924053

$9.31

8

O-Ring

420950950

$0.83

9

Oil Seal | Included in gasket kit

420950732

$8.34

10

Torx Flange Screw M6 X 30

420440647

$1.97

11

Collar Nut M8

420942331

$4.28

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$109.20

12

Valve Bar With Position Sensor | Includes no. 12-13

420855295

$109.20

13

Valve Bar

420855290

Unavailable

14

Torx Flange Screw M6 X 20

420441386

$2.06

15

Nut M12 X 1.5

420942190

$12.52

16

Oil Line 673MM

420201924

$8.60

17

Oil Line 673MM

420201924

$8.60

18

Check Valve Ass’y

420956515

$7.88

19

Oil Line 673MM

420201924

$8.60

20

Bowden Cable Ass'y

420997033

$105.35

21

Allen Screw M5 X 10

420240692

$1.39

22

Mounting Bracket

420912007

$18.43

23

Servo Motor Ass'y

420889432

$311.51

24

Hex. Flange Screw M6 X 12

420440149

$2.06

25

Retaining Ring

420945710

$0.49
