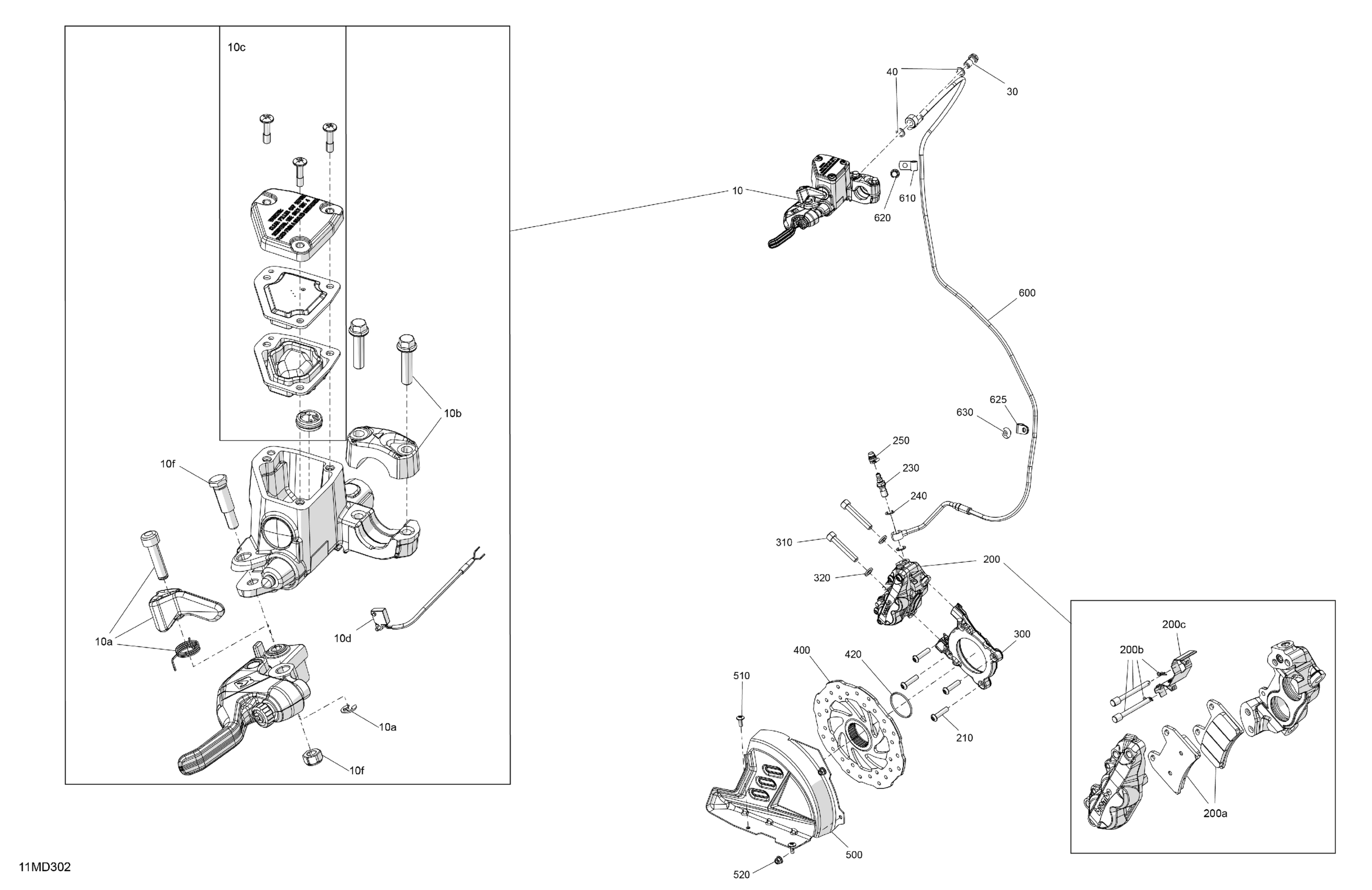

Ski-Doo North America - MXZ 600R E-TEC - X-RS with Competition package - UCRA - Neo Yellow - 137X15X1.25RSII2P Track, 2024 03- Mechanic - Brakes Diagram

Description

Price

Brake Master Cylinder | Includes 10 to 10h

507032688

$339.99

10a

Hand Brake Lever Ass'y

507032745

$124.99

10b

Mounting Clamp | Includes 10b to 10b1

507032736

$24.99

10c

Reservoir Cover Kit

507032737

$109.99

10d

Micro Switch

507032738

$72.99

10f

Pin Ass'y

415030000

$19.99

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

200

Brake Caliper | Includes 200 to 200c

507032723

$349.99

200a

Brake Pad Kit

507032724

$79.49

200b

Pin Lock Kit

507032730

$42.99

200c

Spring Support | Not Shown

507032731

$34.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt/ Bleeder

705601201

$19.99

240

Washer

414920600

$1.90

250

Bleeder Bolt Cap

705601190

$4.44

300

Brake Caliper Support

507032718

$121.99

310

Screw Socket S,Grip M10 X 60

205506044

$8.22

320

Washer

503192496

$0.77

400

Machined Disc Brake

507032697

$185.49

420

O Ring

293300221

$1.68

500

Disc Brake Guard

507032699

$48.99

510

Torx Head Screw M6 X 16

250000717

$2.11

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Hose Caliper

507032700

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
