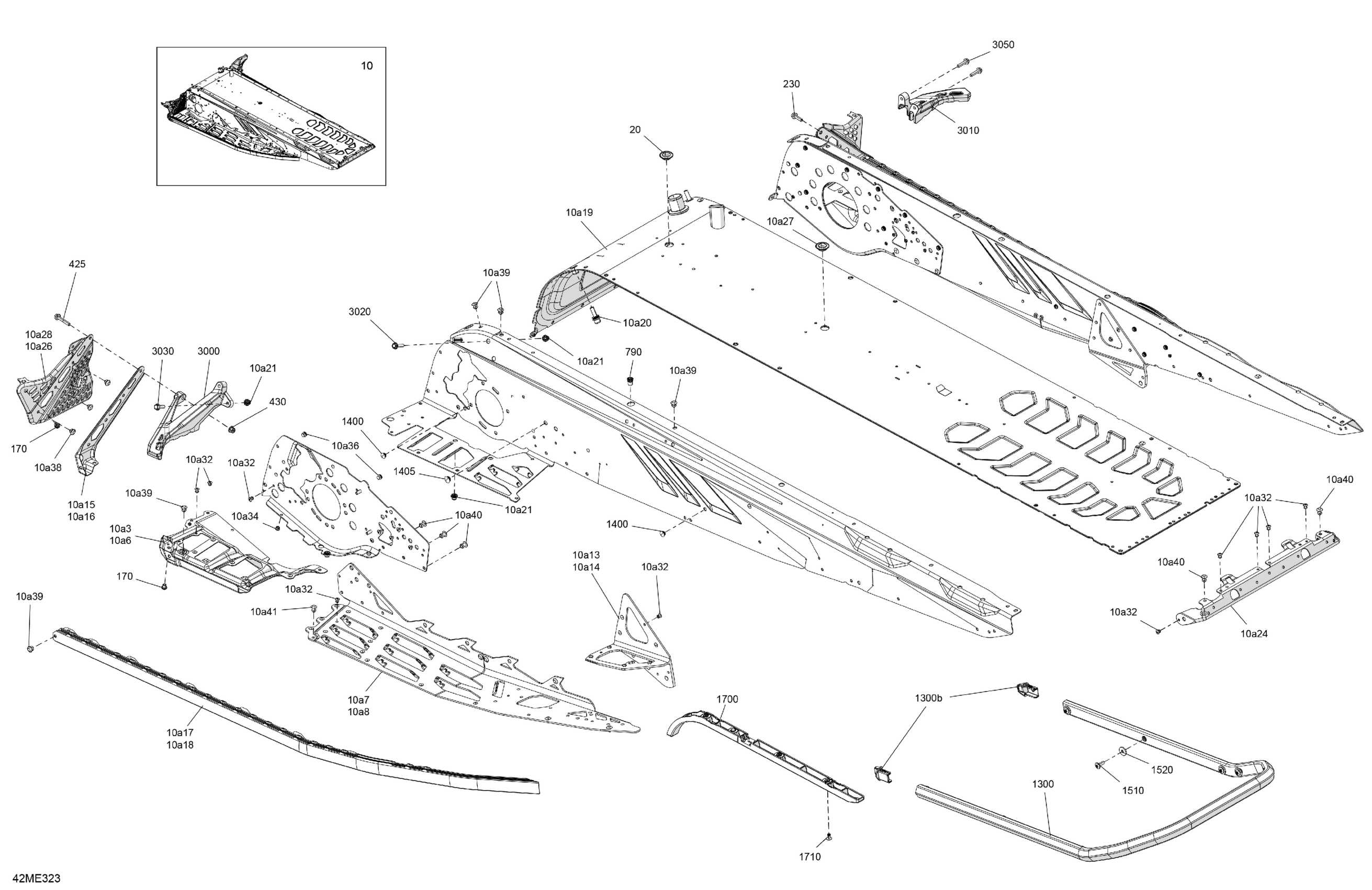

Ski-Doo North America - MXZ - 600R E -TEC - X-RS - MZSL - Neo Yellow - 137X15X1.25RS Track - 2025 06- Frame - System - Rear Section Diagram

Neo Yellow, Chassis Tunnel Module 137 | Includes 10 to 10a41

415130841

$3.00

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

RH Footrest

518332921

$42.99

LH Footrest

518332306

$42.99

RH Rear Suspension Support This part replaces 518334389.

518334389

$85.99

LH Rear Suspension Support

518334413

$45.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518329023

$194.99

LH Roller

518329024

$194.99

Radiator Tunnel 137

518335125

$720.49

Protruding Stud M8 x 22

250300652

$4.44

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518333006

$40.99

Black, Plug

293730052

$9.19

LH Footrest

518333858

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 x 35

207663546

$1.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

Cap

520001612

$10.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

LH Front Stirup

518334924

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex Screw Forming M6 x 25

250001124

$2.40
