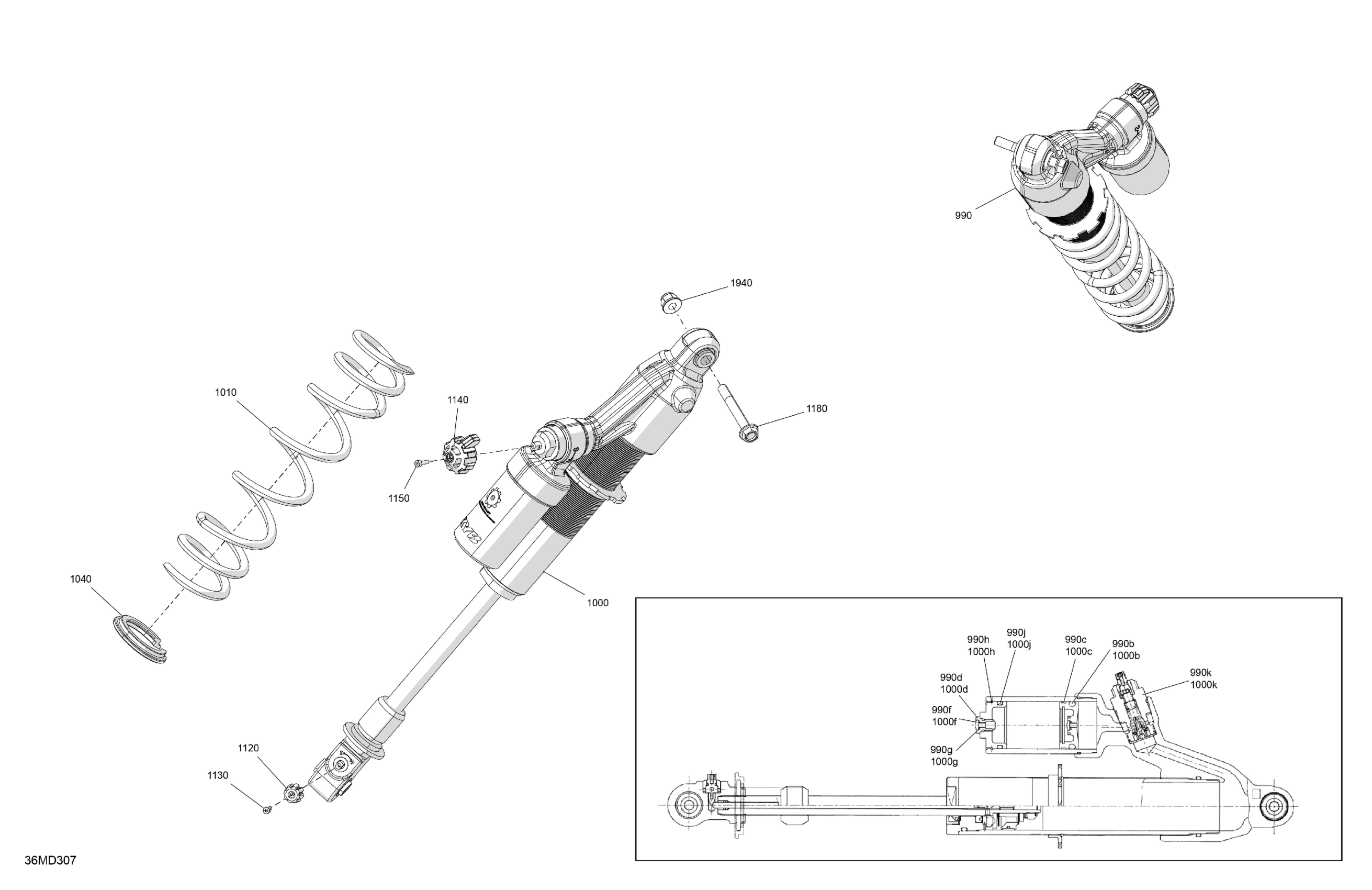

Ski-Doo MXZ 600R E-TEC - X-RS - MZRA - Hyper Silver - 129X15X1.5IR Track, 2024 Suspension - Front Shock Diagram

Description

Price

990

Front Shock Absorber | Includes 990 to 990k

505075403

$812.99

990b

O-Ring

415093807

$33.55

990c

Piston Ring | Not Shown

415093806

$14.52

990d

Air Valve

505070398

$17.13

990f

Screw | Not Shown

505070399

$3.88

990g

O-Ring

505070400

$4.25

990h

Circlip - Call your local BRP dealership

715900076

$3.91

990j

O-Ring

415093804

$4.25

990k

Valve

503195958

$90.27

1000

Front Shock Absorber | Includes 1000 to 1000k

505075404

$812.99

1000b

O-Ring

415093807

$33.55

1000c

Piston Ring | Not Shown

415093806

$14.52

1000d

Air Valve

505070398

$17.13

1000f

Screw | Not Shown

505070399

$3.88

1000g

O-Ring

505070400

$4.25

1000h

Circlip - Call your local BRP dealership

715900076

$3.91

1000j

O-Ring

415093804

$4.25

1000k

Valve

503195958

$90.27

1010

Deep Black, Spring

505074047

$64.90

1040

Spring Stopper

503194270

$16.39

1120

Adjustment Knob

505072753

$2.01

1130

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1140

Adjustment Button

503196209

$2.49

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1180

Hex. Flange Screw M8 X 58

250000824

$2.00

1190

Washer

503192494

$3.01

1940

Elastic Flange Nut M8

233281466

$0.96
