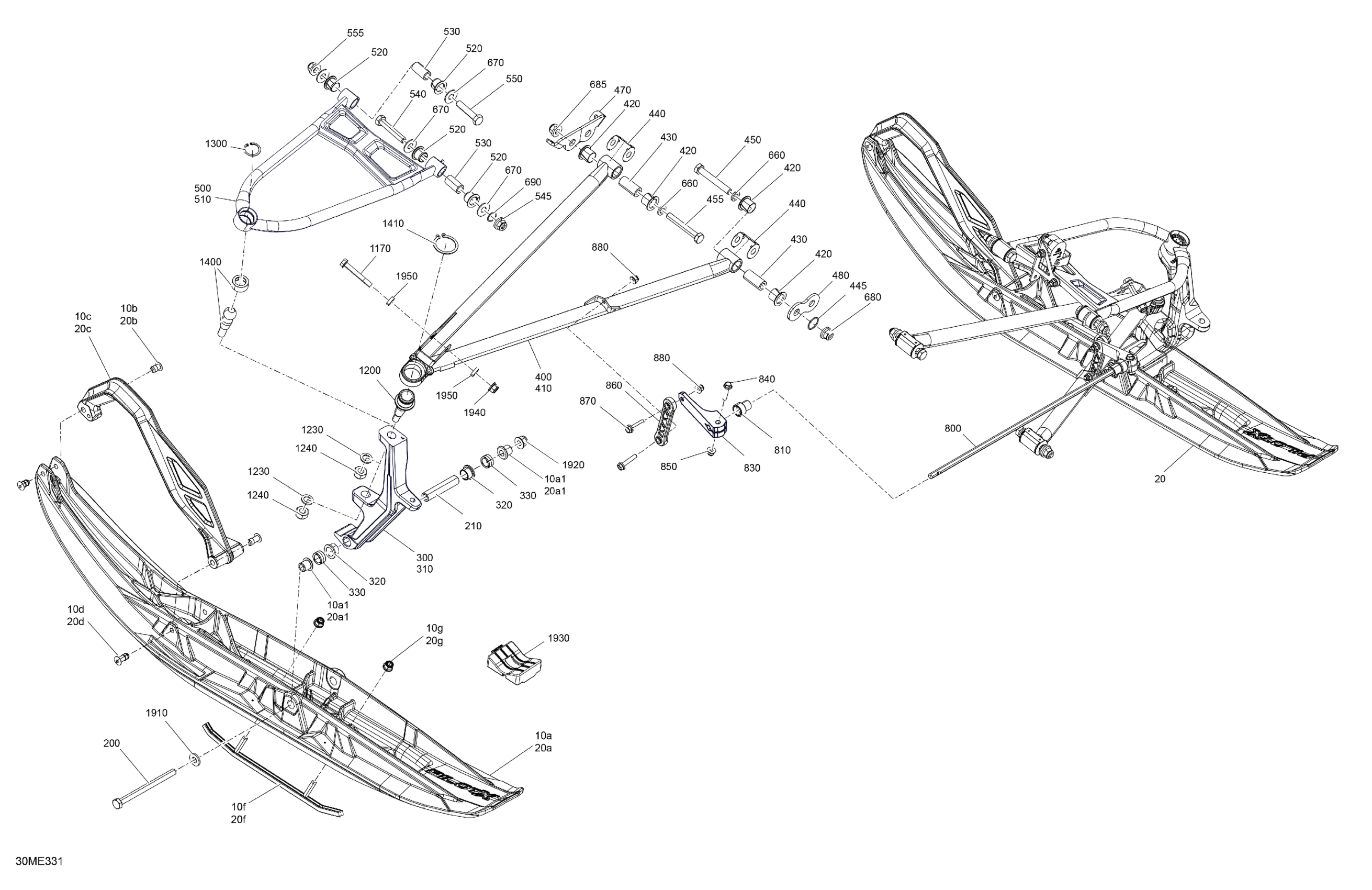

Ski-Doo MXZ - 600R E -TEC - Adrenaline - BDSD - Neo Yellow - 137X15X1.25RS Track - 2025 Suspension - Front Diagram

#

Description
Price

10a

Deep Black, LH Ski | Includes 10a to 10a1

505074926

$161.16

10a1

Ski Bushing

505071781

$14.90

10b

Retainer 17mm long

505071812

$4.30

10c

Deep Black, Ski Handle

505075364

$34.30

10d

Retainer 23mm Long

505072133

$4.88

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

10g

Hex. Flange Elastic Nut M8

233281414

$1.31

20

SKI_PILOT X ASSY - Call your local BRP dealership | Includes 20 to 20g

505075301

Unavailable

20a

Deep Black, RH Ski | Includes 20a to 20a1

505074927

$161.16

20a1

Ski Bushing

505071781

$14.90

20b

Retainer 17mm long

505071812

$4.30

20c

Deep Black, Ski Handle

505075364

$34.30

20d

Retainer 23mm Long

505072133

$4.88

20f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

20g

Hex. Flange Elastic Nut M8

233281414

$1.31

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

210

Ski Axle

505073691

$12.21

300

Deep Black, Ski Leg +14

505075747

$205.94

310

Deep Black, RH Ski Leg +14

505075748

$205.94

320

Leg Bushing

505072690

$5.75

330

Spacer

505074949

$1.97

400

Black, LH Lower Suspension Arm

505075672

$184.30

410

Black, RH Lower Suspension Arm

505075673

$184.30

420

Bushing

505072208

$3.04

430

Sleeve

505072209

$13.96

440

Wear Plate

505072634

$4.31

445

O-Ring

505072448

$2.18

450

Screw Hex. M10 X 70

250001024

$2.00

455

Screw Hex. M10 X 70

250001024

$2.00

470

Wear Plate

505073723

$5.67

480

Plate

505073844

$2.07

500

Black, LH Upper Suspension Arm

505075526

$138.03

510

Black, RH Upper Suspension Arm

505075527

$138.03

520

Bushing

505072250

$3.04

530

Sleeve

505072143

$8.36

540

Screw Hex. M10 X 60

250001023

$2.00

545

Hex. Flange Elastic Nut M10

250100165

$0.81

550

Screw Hex. M10 X 60

250001023

$2.00

555

Hex. Flange Elastic Nut M10

250100165

$0.81

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.81

685

Hex. Flange Elastic Nut M10

250100165

$0.81

690

O-Ring

505072448

$2.18

800

Black, Stabilizer Bar

505075686

$67.13

810

Bushing

505072064

$2.15

830

Black, Stabilizer Bar Link

505075627

$14.90

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

850

Hex. Flange Elastic Nut M6

233261466

$1.91

860

Sway Bar Double Joint Link

505072204

$18.63

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

880

Hex. Flange Elastic Nut M6

233261466

$1.91

1170

Hex. Flange Screw M8 X 58

250000824

$2.00

1200

Ball Joint

505074133

$49.97

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.00

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Snap Ring

293370098

$3.01

1910

Washer

503192496

$0.73

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

1930

Ski Stopper

505072594

$17.13

1940

Elastic Flange Nut M8

233281466

$0.96

1950

Spacer

505073892

$2.10
