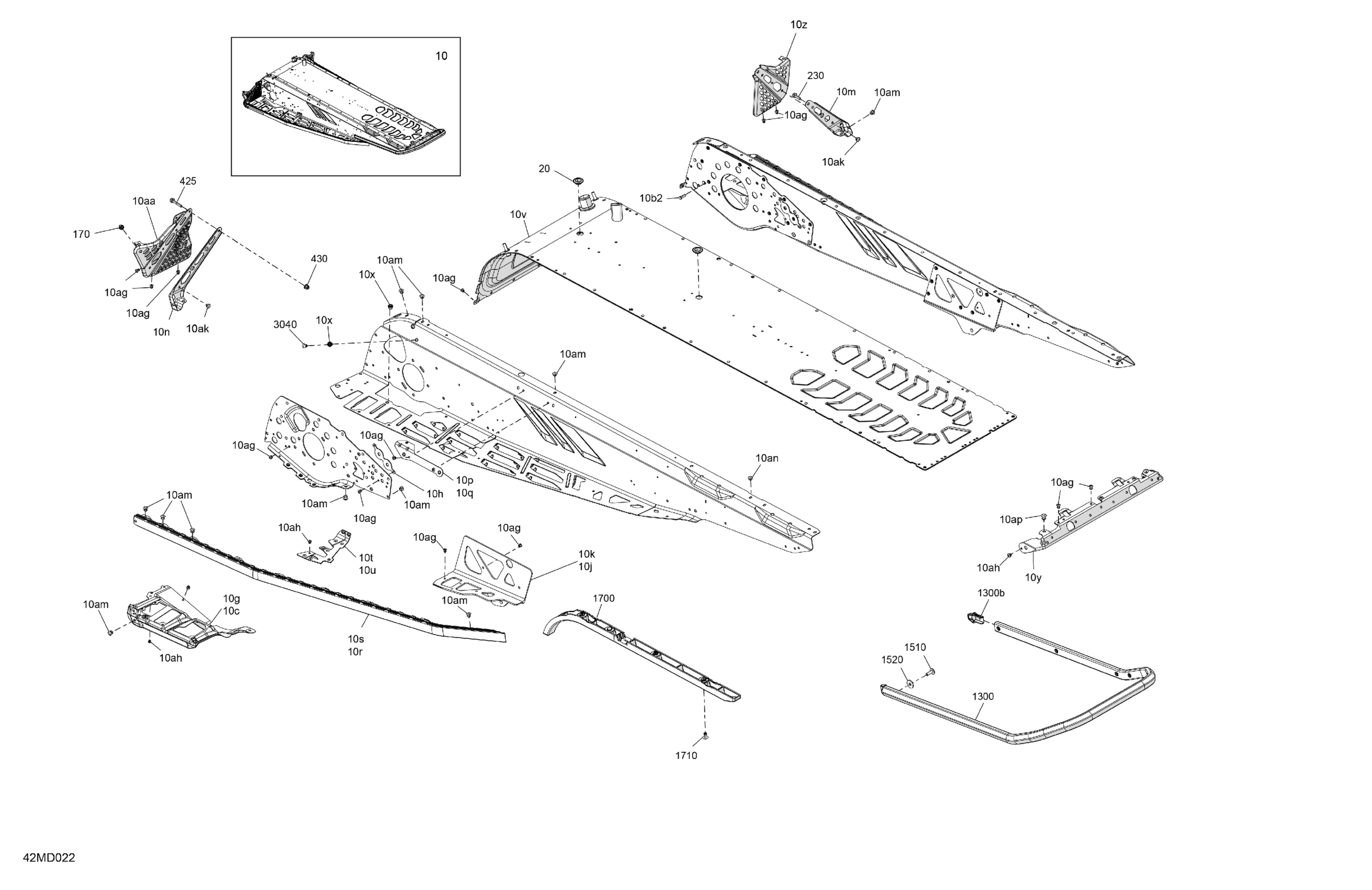

Ski-Doo North America - MXZ 600 EFI - SPORT - BHRE - Neo Yellow - 137X15X1.25RS Track, 2024 06- Frame - System - Rear Section Diagram

Full Moon, Chassis Tunnel Module 137 | Includes 10 to 10ap

518335028

Unavailable

Clinch Stud M6 X 20

250300027

$2.09

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

Front Suspension Arm Reinforcement

518327233

$4.69

RH Rear Suspension Support This part replaces 518330095.

518334405

$94.99

LH Rear Suspension Support This part replaces 518330094.

518334404

$104.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

LH Under Chassis Reinforcement

518331744

$18.99

RH Under Chassis Reinforcement

518331745

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

LH Footrest Reinforcement

518332296

$21.99

RH Footrest Reinforcement

518332297

$21.99

Radiator Tunnel 137 Ass'y

518334488

$720.49

Clinch Nut M6 Hexsert

605636003

$4.23

Rear Cap

518328990

$22.49

RH Footrest

518333006

$40.99

LH Footrest

518333858

$40.99

Avex Rivet

390909100

$0.30

Avex Rivet

390909200

$0.30

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

Cap

520001612

$10.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$2.09
