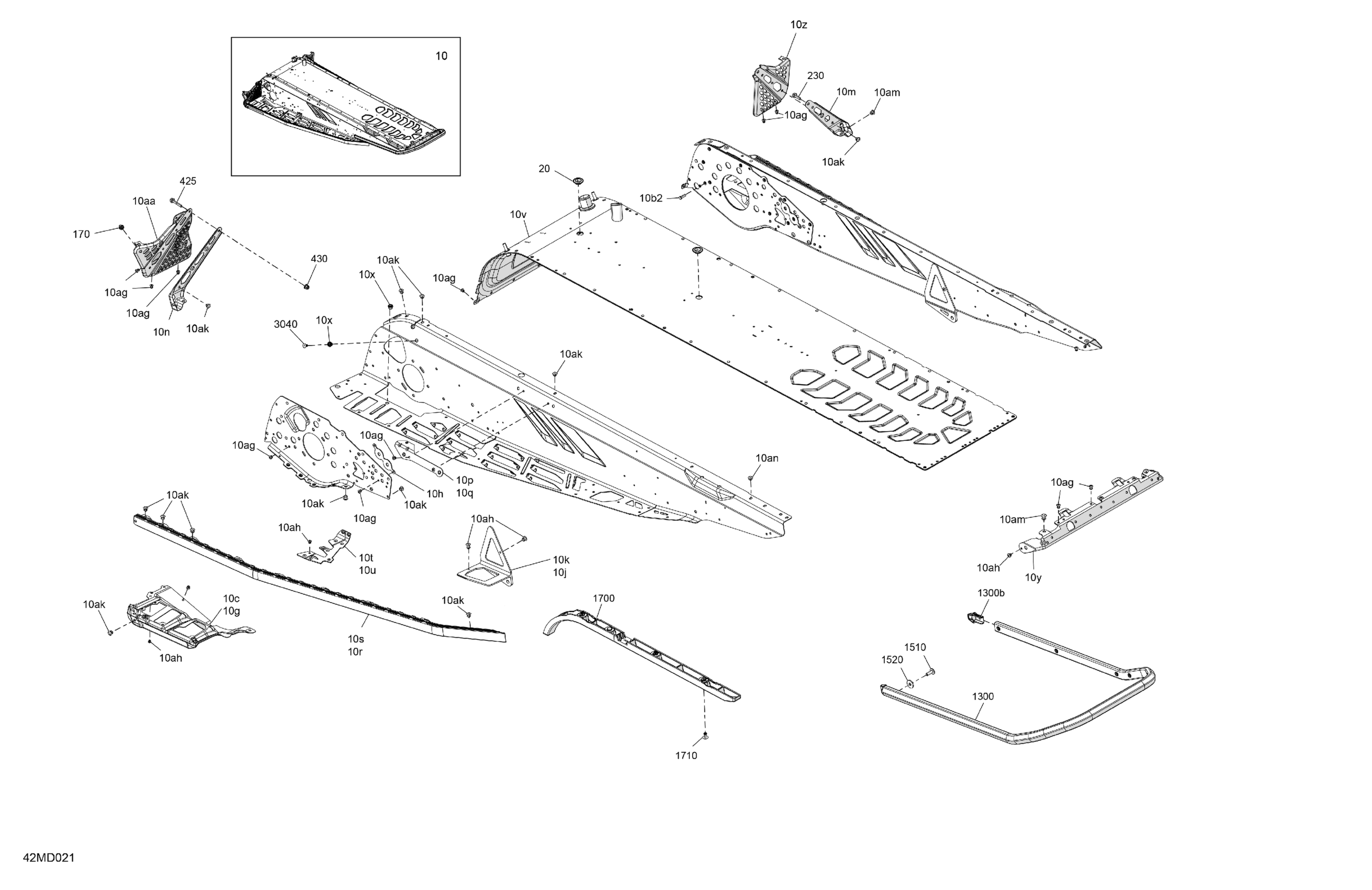

Ski-Doo North America - MXZ 600 EFI - SPORT - BHRD - Neo Yellow - 129X15X1.25RS Track, 2024 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 129 | Includes 10 to 10an

415130760

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10g

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10j

RH Rear Suspension Support

518334385

$94.99

10k

LH Rear Suspension Support

518334384

$94.99

10m

Stirrup Reinforcement

518334507

$21.99

10n

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10p

LH Under Chassis Reinforcement

518331744

$18.99

10q

RH Under Chassis Reinforcement

518331745

$19.99

10r

RH Roller

518328451

$194.99

10s

LH Roller

518328452

$194.99

10t

LH Footrest Reinforcement

518332296

$21.99

10u

RH Footrest Reinforcement

518332297

$21.99

10v

Radiator Tunnel 129 Ass'y

518334487

$739.99

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10y

Rear Cap

518328990

$22.49

10z

RH Footrest

518333006

$40.99

10aa

LH Footrest

518333858

$40.99

10ag

Avex Rivet

390909100

$0.30

10ah

Avex Rivet

390909200

$0.30

10ak

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10am

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10an

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$111.99

1300b

Cap

520001612

$10.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
