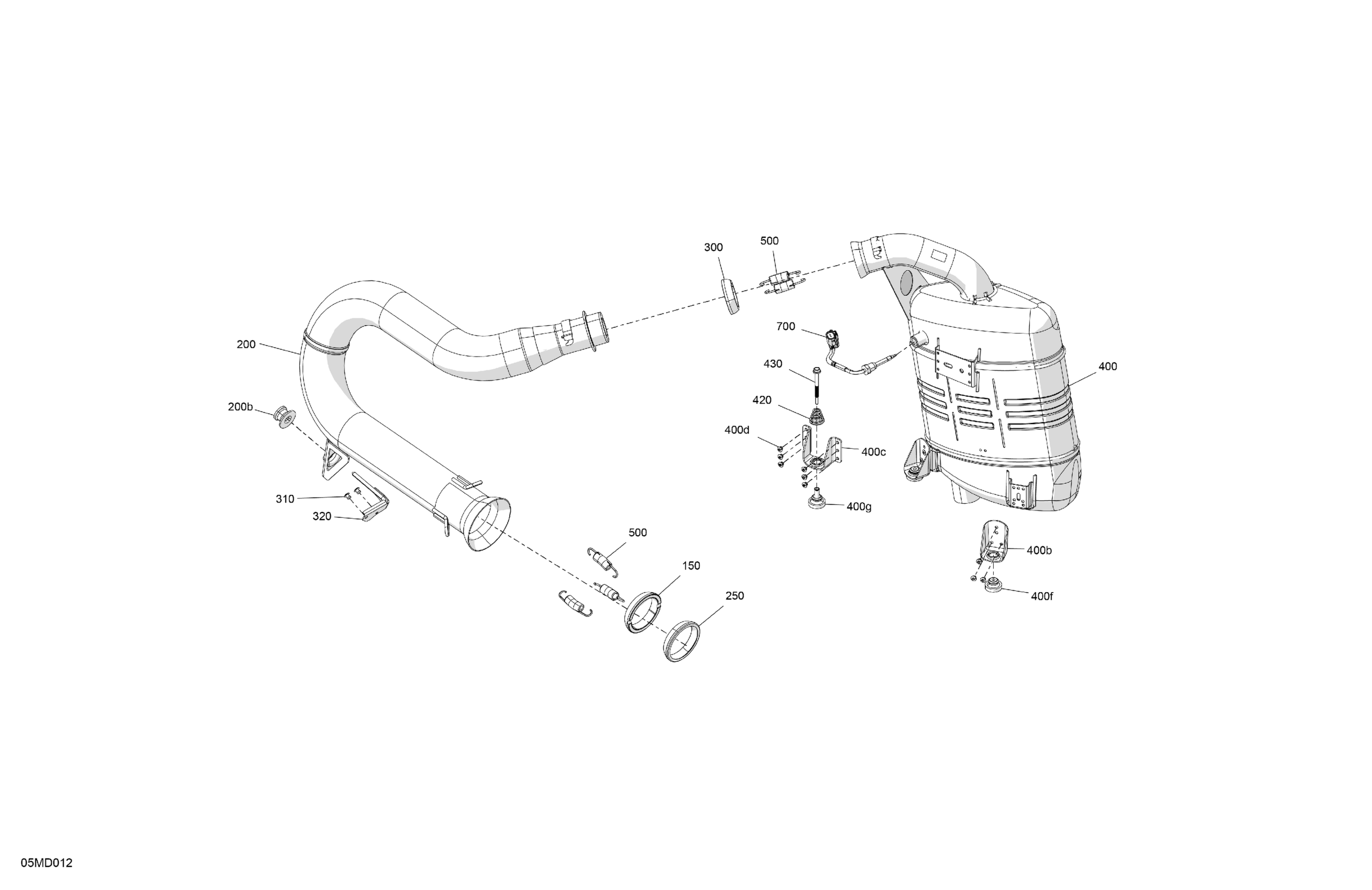

Ski-Doo MXZ 600 EFI - 45 - NEO - BBRA - Catalyst Gray - 120X14X1.0C Track, 2024 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.12

200

Tuned Pipe | Includes 200 to 200b

514056274

$373.82

200b

Rubber

514055632

$2.75

250

Seal

514055965

$18.43

300

Exhaust Gasket

514055294

$24.58

310

Ornit Rivet 6,5 X 14.5

293150266

$1.94

320

Support

514055214

$9.55

400

Muffler Ass'y | Includes 400 to 400h

514055927

$738.43

400b

Support

514056054

$5.23

400c

Support

514056055

$5.23

400d

Pop Rivet 3/16 X ,425

293150293

$0.26

400f

Stopper

514055203

$19.20

400g

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83

500

Spring

514055198

$6.20

700

Exhaust Temperature Sensor

514055888

$141.51
