Description

Price

1

Black, Ski Plastic

3603-614

$79.99

2

Carbide

3703-804

$22.49

3

Elastic Stop Nut 1/4-20

8047-426

$0.76

4

Insert

2603-746

$2.69

5

Yellow Handle

3603-797

$3.69

6

Screw HH 5/16 X3

8002-141

$1.37

7

Flat Washer

8050-247

$0.72

8

Thrust Washer

0645-752

$2.09

9

RH Ski Damper

3603-340

$22.99

9

LH Ski Damper

3603-341

$22.99

10

Collar

0403-437

$8.59

11

RH Spindle

3703-960

$134.99

11

LH Spindle

3703-961

$134.99

12

Black, Hex Lock Nut M8X1.25

8427-805

$1.27

13

Cotter Pin

0123-458

$0.49

14

Spacer

3603-620

$1.99

15

Screw M10 X 137

1623-781

$6.38

16

Hex Lock Nut M10X1.25

0423-744

$2.12

17

Flat Washer

1623-801

$1.09

18

Machined Screw 5/16 X 1

8017-672

$5.19

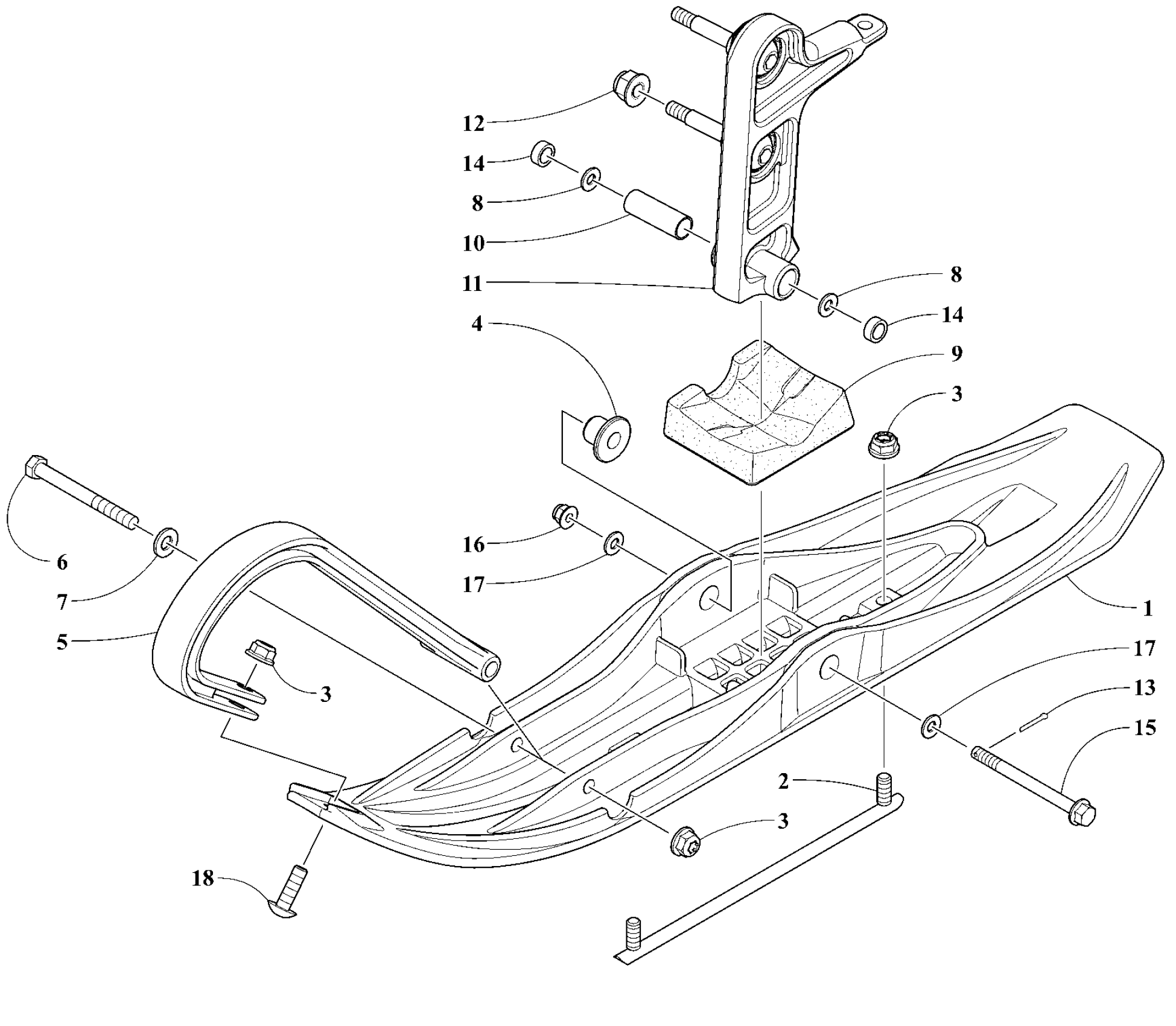

Ski-Doo MXZ 200, 2025 Front Suspension Ski Diagram

Black, Ski Plastic

Carbide

Elastic Stop Nut 1/4-20

Insert

Yellow Handle

Screw HH 5/16 X3

Flat Washer

Thrust Washer

RH Ski Damper

LH Ski Damper

Collar

RH Spindle

LH Spindle

Black, Hex Lock Nut M8X1.25

Cotter Pin

Spacer

Screw M10 X 137

Hex Lock Nut M10X1.25

Flat Washer

Machined Screw 5/16 X 1
