Description

Price

1

Black, Steering Post

1705-633

$119.99

2

Handle Grip

1605-174

$17.99

3

Throttle Control

0302-165

$26.99

4

Pin

1623-828

$14.49

5

Spring Pin

8070-318

$1.19

6

Decal Engine Stop Switch

0611-022

$3.89

7

Control Lever

0109-609

$24.49

8

Circlip

0123-231

$1.69

9

Brake Housing

0302-147

$25.99

10

Kill Switch

0609-007

$63.99

11

Handlebar Pad Cover

1705-444

$43.99

12

Handlebar Pad

1605-107

$19.99

13

Cap Screw 1/4 X 0.875

8020-041

$8.59

14

Black, Steering Support Bracket

0705-896

$19.99

15

Steering Post Bearing

0605-444

$5.59

16

Elastic Stop Nut 1/4-20

8047-366

$0.49

17

Hex Jam Nut 5/16

8040-456

$0.76

18

Flat Washer

8050-247

$0.72

19

Cap Screw 5/16-18

8020-134

$1.79

20

Tie Rod Ass'y

1705-585

$132.99

21

LH Hex Jam Nut 5/16

0623-260

$1.37

22

RH Hex Jam Nut 5/16

0123-144

$0.37

23

Harness Guide

0645-826

$12.49

24

Brake Cable

0687-229

$73.99

25

Brake Return Spring

1602-100

$14.49

26

Tie-Rap 180 mm

414115200

$0.11

27

Throttle Cable

0687-247

$50.99

28

Lock Washer 1/4

8053-212

$0.25

29

12 Watt Heated Film

0609-993

$41.99

30

Elastic Stop Nut 1/4-20

8047-426

$0.76

31

Black, RH Steering Support

6716-074

$36.99

31

Black, LH Steering Support

6716-075

$36.99

32

Plug

2623-200

$0.40

33

Flat Washer 1/4

8050-212

$0.85

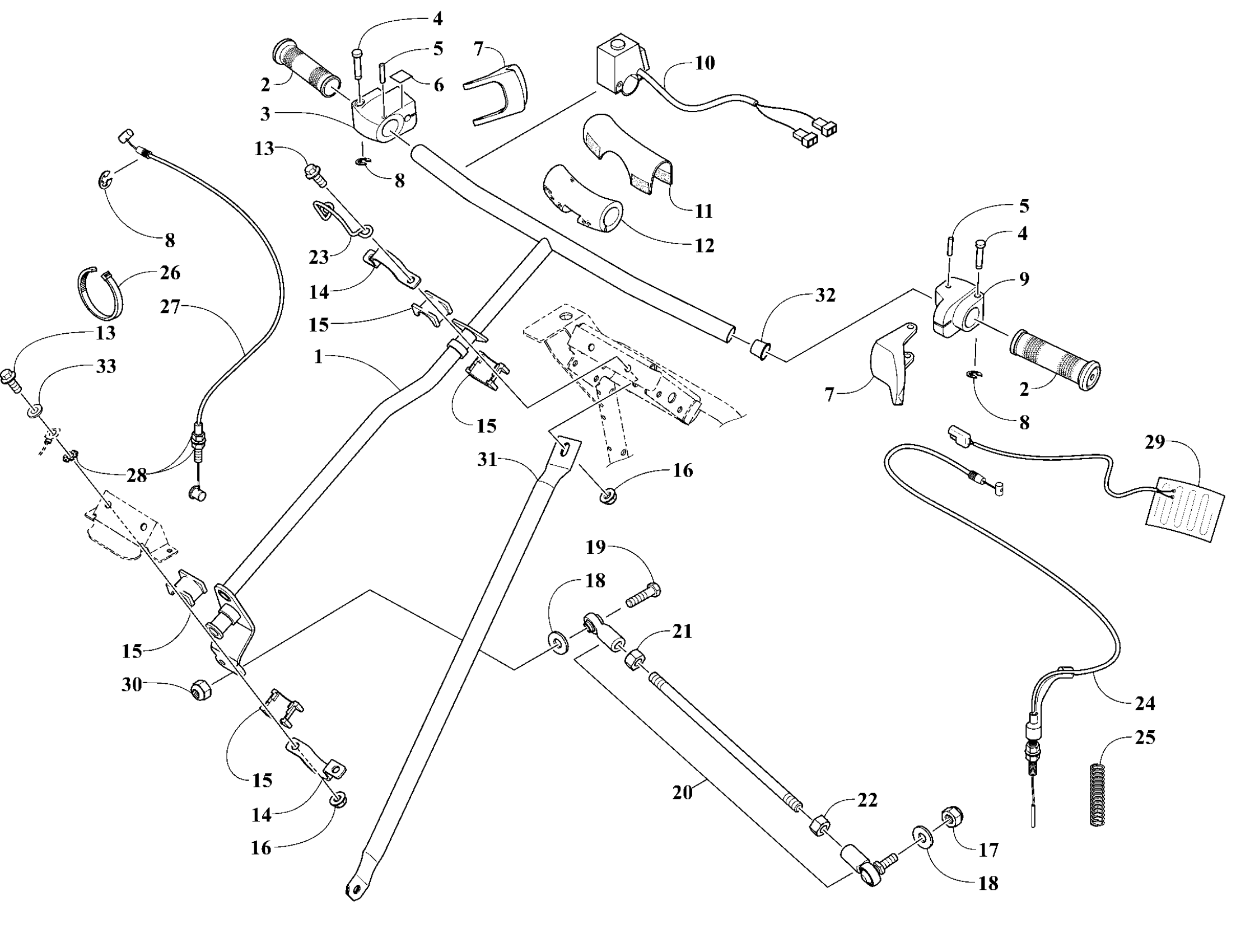

Ski-Doo North America - MXZ 120, 2026 Steering Diagram

Black, Steering Post

Handle Grip

Throttle Control

Pin

Spring Pin

Decal Engine Stop Switch

Control Lever

Circlip

Brake Housing

Kill Switch

Handlebar Pad Cover

Handlebar Pad

Cap Screw 1/4 X 0.875

Black, Steering Support Bracket

Steering Post Bearing

Elastic Stop Nut 1/4-20

Hex Jam Nut 5/16

Flat Washer

Cap Screw 5/16-18

Tie Rod Ass'y

LH Hex Jam Nut 5/16

RH Hex Jam Nut 5/16

Harness Guide

Brake Cable

Brake Return Spring

Tie-Rap 180 mm

Throttle Cable

Lock Washer 1/4

12 Watt Heated Film

Elastic Stop Nut 1/4-20

Black, RH Steering Support

Black, LH Steering Support

Plug

Flat Washer 1/4
