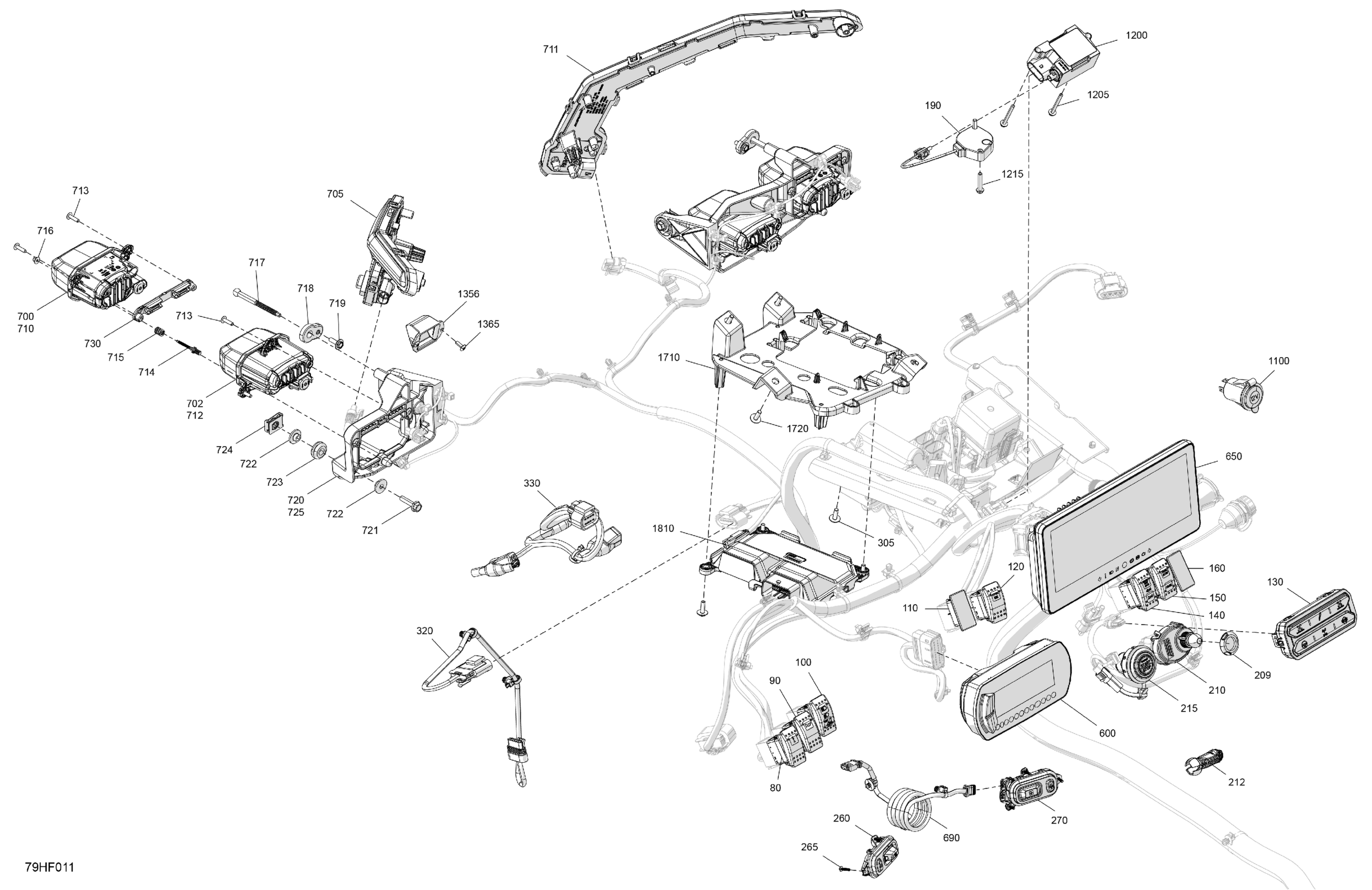

Can-Am Maverick - TURBO - X - 8JTM - Granite Grey - 64" Width - CALI, 2026 Electric - Front Section Diagram

#

Description
Price

80

Switch Winch

710002052

$28.92

90

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

100

Headlights Switch

710007022

$69.20

110

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

120

Switch, Over ride

710002053

$19.27

130

Multifunction Switch

710010056

$124.58

140

Differential Switch

710006040

$32.28

150

Differential Mode Switch

710006557

$32.28

160

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

190

Radio Frequency Antenna

515179821

$119.97

209

Specialized Nut

278004274

$2.72

210

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

212

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

215

Start-Stop Button | Not Shown

710005213

$59.97

260

LH Multifunction Switch

710009446

$87.66

265

Screw Plastite Torx K30 X 12

250001234

$0.55

270

RH Multifunction Switch

710010681

$87.66

305

Screw PT Type K-50 X 16

250000959

$1.74

320

Cable Throttle Pedal

710005291

$226.12

330

Front Differential Wiring Harness

710006807

$46.12

600

Multifunction Compact Gauge

710008296

$383.05

650

Multifunction Gauge 10

710010375

$2,074.58

690

Steering Wheel Wiring Harness

710008062

$290.74

700

Low Beam Light

710008088

$156.89

702

HIgh Beam Light

710006910

$156.89

705

LH Signature Beam

710004994

$161.51

710

Low Beam Light

710008088

$156.89

711

RH Signature Beam

710004995

$161.51

712

HIgh Beam Light

710006910

$156.89

713

Torx-Truss Pt K40 X 16

250000759

$1.74

714

Threaded Rod | Not Shown

517309133

$6.20

715

Compression Spring | Not Shown

517309058

$7.23

716

Specialized Nut | Not Shown

517309134

$0.98

717

Ajustment Screw

710005837

$6.45

718

Ball Socket

293900157

$8.45

719

Screw PT Type K-50 X 16

250000959

$1.74

720

Support_Headlight LH

710010932

$6.45

721

Hex. Flange Screw M6 X 25

207662554

$1.48

722

Shoulder Bushing

710004749

$2.75

723

Overmolded Grommet

293720130

$4.38

724

Panel Nut M6 X 1.0

250100208

$1.07

725

Support_Headlight RH

710010934

$6.45

730

Support Pivot | Not Shown

517309049

$2.66

1100

12V Power Outlet

710005374

$27.27

1200

Radio Frequency Module

515179191

$378.43

1205

Hex. Screw K50 X 45

241154540

$1.74

1215

Hex. Flange Screw K50 X 25

250000680

$1.72

1356

Cap

708305271

$3.68

1365

Torx Truss Screw K40 X 12

250000577

$1.74

1710

Multi Purpose Support

710010112

$6.92

1720

Screw PT Type K-50 X 16

250000959

$1.74

1810

BCM Module OPT #2

710007494

$979.99
