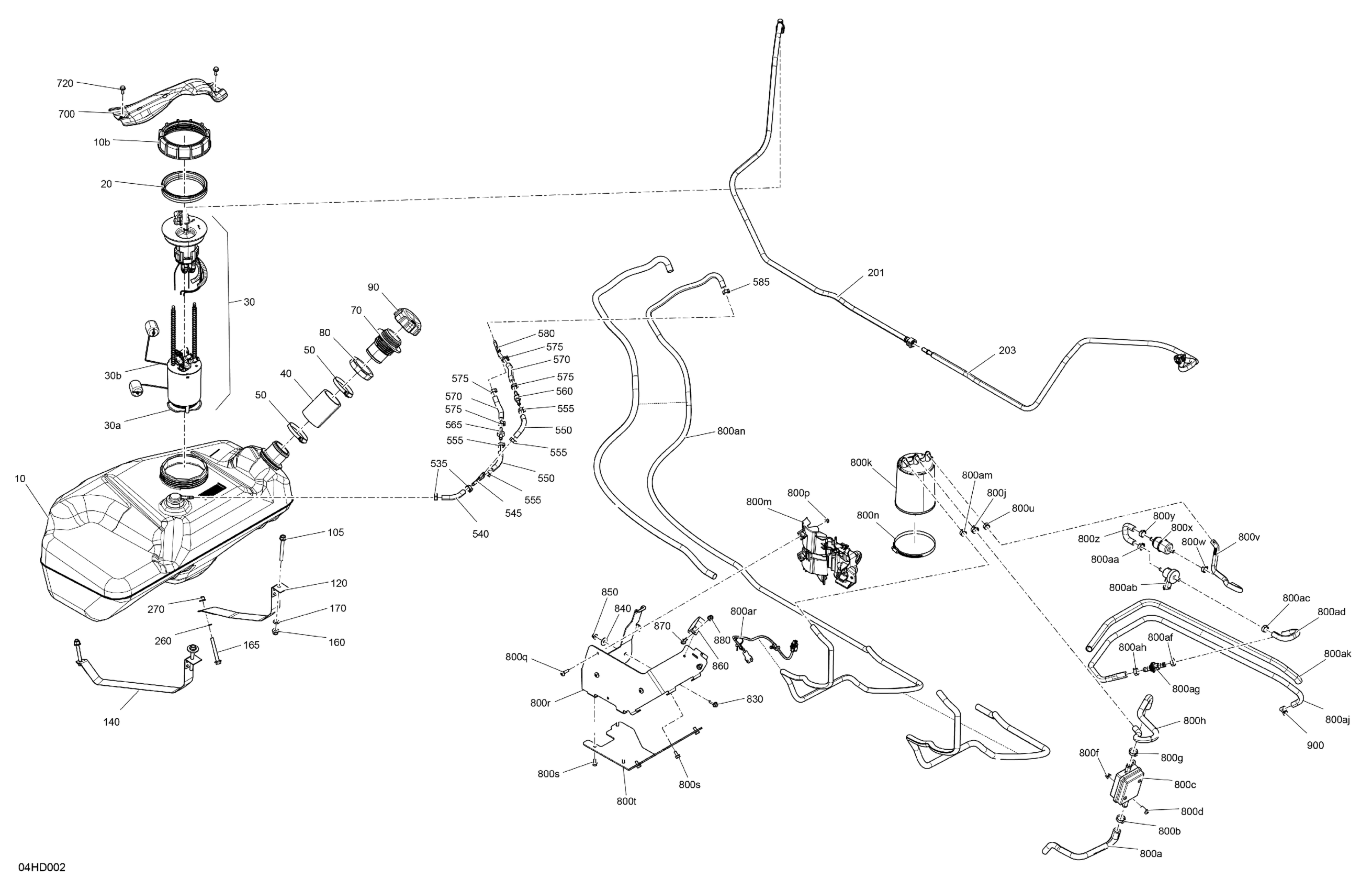

Can-Am Maverick Turbo - RS - 9ERL - Fiery Red Metallic - 72" Width CALI, 2024 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$273.85

10b

Special Nut M130

250100062

$20.12

20

Gasket

293250173

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Filler Neck Hose

709001277

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Fuel Filler Neck Nut

293600206

$11.51

90

Fuel Cap

709000868

$29.07

105

Carriage Bolt M8 X 75

250001199

$6.00

120

Fuel Tank Strap

709000910

$38.03

140

Fuel Tank Strap

709000911

$38.03

160

Hex. Flange Elastic Nut M8

233281414

$1.31

165

Hex. Flange Screw M8 X 70

207687044

$7.01

170

Flat Washer 8 mm

234081410

$0.79

201

Formed Hose

709000987

$39.49

203

Formed Hose

709001059

$41.76

260

Flat Washer 8 mm

234081410

$0.79

270

Hex. Flange Elastic Nut M8

233281414

$1.31

535

Oetiker Clamp

293650042

$1.61

540

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$9.40

550

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$1.61

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

570

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$1.61

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$1.61

700

Connector Guard

707901204

$18.63

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

800a

Formed Hose

709000869

$14.33

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Torx Screw M6 X 20

250000712

$2.00

800f

Hex. Flange Elastic Nut M6

233261494

$1.45

800g

Oetiker Clamp

293650186

$3.82

800h

Formed Hose

709000870

$14.90

800j

Crimp Clamp

293650053

$2.78

800k

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800m

Canister Support

709001296

$4.40

800n

Tridon Clamp

293650054

$8.63

800p

Hex. Elastic Stop Nut M6

232561600

$1.06

800q

Torx Screw M6 X 20

250000712

$2.00

800r

Primary Support

709000955

$94.00

800s

Hex. Flange Screw M6 X 12

210261250

$1.79

800t

Secondary Support

709000956

$17.13

800u

Oetiker Clamp

293650042

$1.61

800v

Formed Hose

709000853

$14.33

800w

Oetiker Clamp

293650046

$2.67

800x

Fuel Filter

513034047

$35.99

800y

Crimp Clamp, 15.3-706R

293650047

$3.03

800z

Formed Hose

709000857

$14.33

800aa

Crimp Clamp, 15.3-706R

293650047

$3.03

800ab

Bleed Valve

709000443

$65.64

800ac

Crimp Clamp, 15.3-706R

293650047

$3.03

800ad

Formed Hose

709000873

$14.90

800af

Crimp Clamp

293650053

$2.78

800ag

Check Valve

275500941

$23.10

800ah

Crimp Clamp

293650053

$2.78

800aj

Hose 3000Mm Long

219704612

$77.58

800ak

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800am

Oetiker Clamp

293650046

$2.67

800an

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

800ar

Purge Valve Cable

710005718

$18.63

830

Hex. Flange Screw M6 X 20

207662054

$0.96

840

Flat Washer M6.6 X 22

250200162

$2.19

850

Hex. Flange Elastic Nut M6

233261494

$1.45

860

Open Clamp

293850132

$13.51

870

Hex. Flange Screw M6 X 20

207662054

$0.96

880

Hex. Flange Elastic Nut M6

233261494

$1.45

900

Norma Spring Clamp

293650214

$14.90
