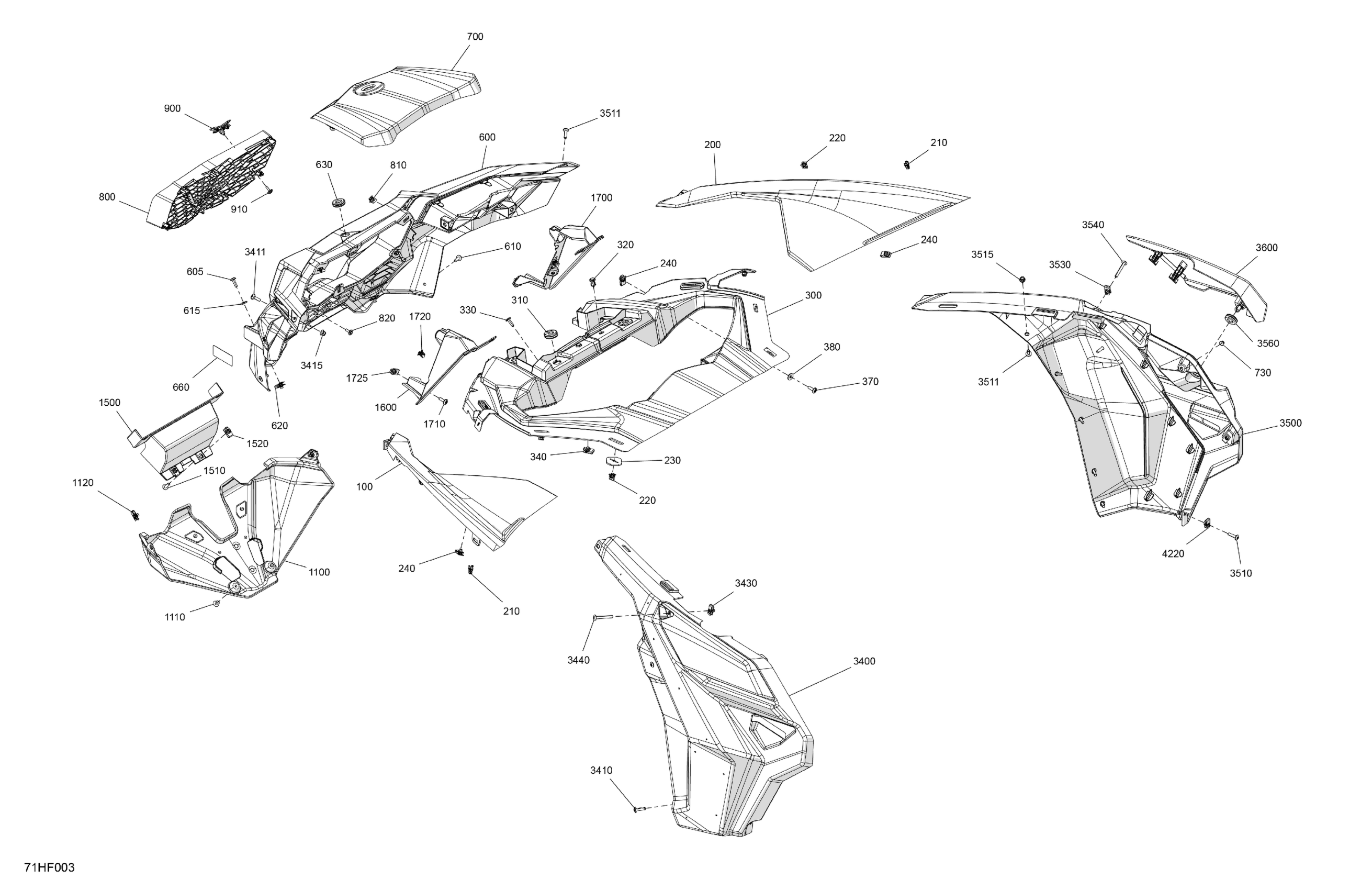

Can-Am Maverick - TURBO RR - XRS STD - 7TTP - Dusty Navy Satin - 72" Width CALI, 2026 Body - Front Section Diagram

Description

Price

100

Dusty Navy, LH Front Fender

705019598

$149.99

200

Dusty Navy, RH Front Fender

705019599

$149.99

210

Clip

705010721

$2.61

220

Edge Clip

517302785

$0.88

230

Support Plate

705003841

$0.99

240

Panel Nut M6 X 1.0

250100198

$2.11

300

Central Hood

705014684

$75.99

310

Grommet

705010718

$2.69

320

Tuflok Plastic Rivet

293150230

$1.47

330

Torx Screw M6 X 20

250000722

$1.68

340

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Screw M6 X 20

250000722

$1.68

380

Stainless Steel Flat Washer

234062670

$2.11

600

Front Fascia

705019553

$74.99

605

Torx Screw M6 X 20

250000722

$1.68

610

Torx Screw M6 X 20

250000722

$1.68

615

Stainless Steel Flat Washer

234062670

$2.11

620

Panel Nut M6 X 1.0

250100198

$2.11

630

Grommet

517303756

$4.09

660

Amber, Reflector

520002680

$20.99

700

Timeless Black, Front Hood

705019650

$174.99

730

Hex. Flange Elastic Nut M6

233261494

$1.58

800

Radiator Front Grille

703501021

$51.99

810

Edge Clip

517302785

$0.88

820

Screw PT Type K-50 X 16

250000959

$2.11

900

BRP Logo Emblem

705017644

$12.49

910

Screw M4 X 16

250000725

$3.49

1100

Front Deflector

705009978

$76.99

1110

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

1120

Panel Nut M6 X 1.0

250100198

$2.11

1500

Front Lower Radiator Deflector

705017561

$19.99

1510

Torx Screw M6 X 20

250000722

$1.68

1520

Panel Nut M6 X 1.0

250100198

$2.11

1600

LH Front Radiator Deflector

705017559

$20.99

1700

RH Front Radiator Deflector

705017560

$20.99

1710

Torx Screw M6 X 20

250000722

$1.68

1720

Edge Clip

517302785

$0.88

1725

Panel Nut M6 X 1.0

250100198

$2.11

3400

LH Front Body Panel Kit

715009833

$104.99

3410

Torx Truss Screw M6 X 25

250000807

$2.11

3411

Torx Screw M6 X 20

250000712

$2.11

3415

Hex. Flange Elastic Nut M6

233261494

$1.58

3430

Panel Nut M6 X 1.0

250100198

$2.11

3440

Torx Truss M6 X 50

250000868

$2.11

3500

RH Front Body Panel Ass'y

715009835

$99.99

3510

Torx Truss Screw M6 X 25

250000807

$2.11

3511

Torx Screw M6 X 20

250000712

$2.11

3515

Hex. Flange Elastic Nut M6

233261494

$1.58

3530

Panel Nut M6 X 1.0

250100198

$2.11

3540

Torx Truss M6 X 50

250000868

$2.11

3560

Grommet

517303756

$4.09

3600

Lateral Cover

705017564

$43.99

4220

Panel Nut M6 X 1.0

250100198

$2.11
